Product Details
Place of Origin: China
Brand Name: TANKII
Certification: ISO
Model Number: Constantan
Payment & Shipping Terms
Minimum Order Quantity: 20kg
Packaging Details: Strip/Wire/Ribbon diameter 0.005mm-1.0mm packing in spool, big than 1.50mm packing in coil
Payment Terms: Western Union, T/T, L/C
Supply Ability: 20,000kg/Week
State: |
Soft Annealled Or Hard |
Sample Supply: |
Small Sample Supply Is Available |
Model Number:: |
Constantan |
Chemical Composition: |
: Cu, Mn, Ni |
Insulation Material: |
: Bare |
Application: |
: Resistance |
State: |
Soft Annealled Or Hard |
Sample Supply: |
Small Sample Supply Is Available |
Model Number:: |
Constantan |
Chemical Composition: |
: Cu, Mn, Ni |
Insulation Material: |
: Bare |
Application: |
: Resistance |
2. Product Description
Constantan is a copper-nickel alloy that contains specific minor amounts of additional elements to achieve precise values for the temperature coefficient of resistivity. Careful control of melting and conversion practices results in a very low level of pinholes at ultra-thin thicknesses. The alloy is used extensively for foil resistors and strain gauges.
Chemical Content, %
|
Ni |
Mn |
Fe |
Si |
Cu |
Other |
ROHS Directive |
|||
|
Cd |
Pb |
Hg |
Cr |
||||||
|
40 |
1.50% |
- |
- |
Bal |
- |
ND |
ND |
ND |
ND |
Mechanical Properties
|
Max Continuous Service Temp |
400℃ |
|
Resisivity at 20℃ |
0.48±3%ohm mm2/m |
|
Density |
8.9 g/cm3 |
|
Thermal Conductivity |
-6(Max) |
|
Melting Point |
1280℃ |
|
Tensile Strength,N/mm2 Annealed,Soft |
340~535 Mpa |
|
Tensile Strength,N/mm3 Cold Rolled |
680~1070 Mpa |
|
Elongation(anneal) |
25%(Min) |
|
Elongation(cold rolled) |
≥Min)2%(Min) |
|
EMF vs Cu, μV/ºC (0~100ºC) |
-43 |
|
Micrographic Structure |
austenite |
|
Magnetic Property |
Non |
|
TCR |
-40~+40 |
Constantan Tradenames:
Cuprothal, Alloy 294, Cuprothal 294, Nico, MWS-294, Cupron, Copel, Alloy 45,
Neutrology, Advance, CuNi 102, Cu-Ni 44, Konstantan
Resistance Alloy- Constantan Sizes / Temper Capabilities
1; Condition: Bright, Annealed, Soft
2; Wire diameter 0.02mm-1.0mm packing in spool, big than 1.0mm packing in coil
3; Rod, Bar diameter 1mm-30mm

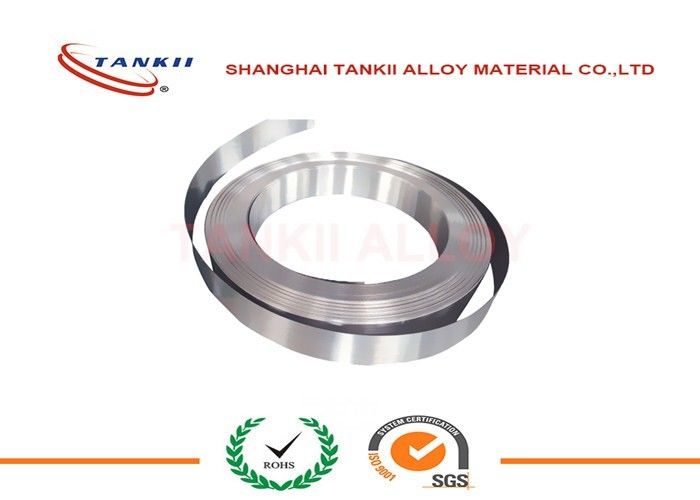

4; Strip: Thickness 0.05mm-7mm, Width 1mm-280mm
Resistance Series:
|
Charact eristic |
Resistivity ( 200C μΩ.m) |
Max.working Temperature ( 0C) |
Tensile Strength (Mpa) |
Melting point (0C) |
Density ( g/cm3) |
TCR x10-6/ 0C (20~600 0C) |
EMF vs Cu (μV/ 0C) (0~100 0C) |
|
Alloy Nomenc lature |
|||||||
|
NC003 (CuNi1) |
0.03 |
200 |
210 |
1085 |
8.9 |
<100 |
-8 |
|
NC005 (CuNi2) |
0.05 |
200 |
220 |
1090 |
8.9 |
<120 |
-12 |
|
NC010 (CuNi6) |
0.1 |
220 |
250 |
1095 |
8.9 |
<60 |
-18 |
|
NC012 (CuNi8) |
0.12 |
250 |
270 |
1097 |
8.9 |
<57 |
-22 |
|
NC015 (CuNi10) |
0.15 |
250 |
290 |
1100 |
8.9 |
<50 |
-25 |
|
NC020 (CuNi14) |
0.2 |
300 |
310 |
1115 |
8.9 |
<30 |
-28 |
|
NC025 (CuNi19) |
0.25 |
300 |
340 |
1135 |
8.9 |
<25 |
-32 |
|
NC030 (CuNi23) |
0.3 |
300 |
350 |
1150 |
8.9 |
<16 |
-34 |
|
NC035 (CuNi30) |
0.35 |
350 |
400 |
1170 |
8.9 |
<10 |
-37 |
|
NC040 (CuNi34) |
0.4 |
350 |
400 |
1180 |
8.9 |
0 |
-39 |
|
NC050 (CuNi44) |
0.5 |
400 |
420 |
1200 |
8.9 |
<-6 |
-43 |
