Tankii Manganin Wires Strips For Ultra High Pressure Sensor

Name: Tankii Manganin Wires Strips For Ultra High Pressure Sensor
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: 6J13
Price: 20 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Tankii

Model Number: 6J13

Payment & Shipping Terms

Minimum Order Quantity: 20kg

Price: USD+20USD/KG

Packaging Details: Cardboard box

Delivery Time: 10days

Payment Terms: D/P, T/T, Western Union, L/C, D/A

Supply Ability: 10TON/MONTH

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                              Ultra high pressure sensor Manganin Strips, Ultra high pressure sensor Manganin Wires, High Pressure Sensor Manganin Wires


Description

Tankii Manganin Wires Strips For Ultra High Pressure Sensor

Product Description

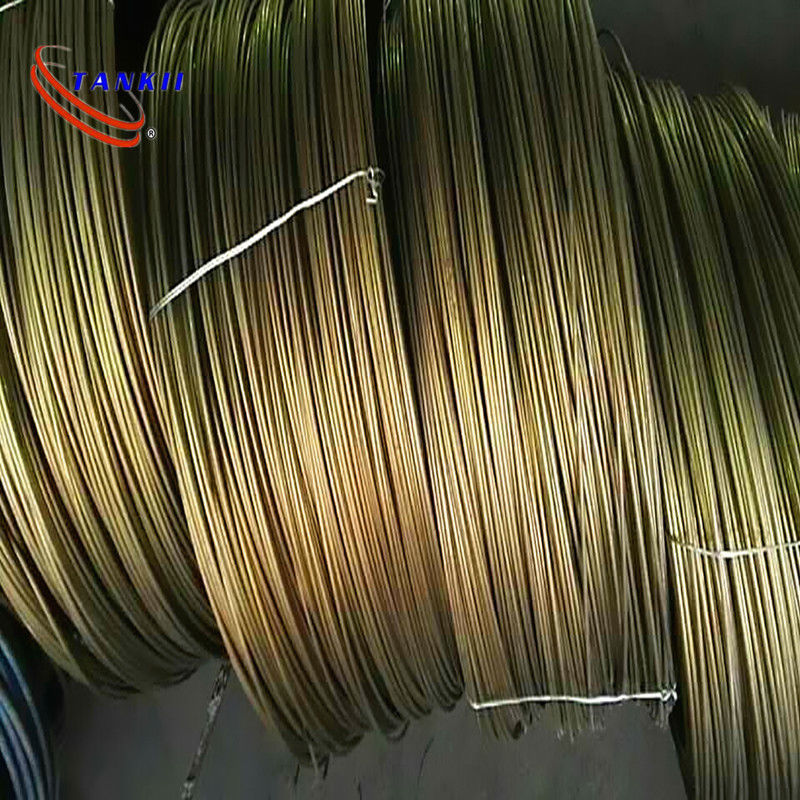

Manganin Wires & Strips 2.0mm used for Ultra high pressure sensor

Manganin is a trademarked name for an alloy of typically 86%copper, 12%manganese, and 2%nickel.

Manganin strip and wire is used in the manufactur of resistor, particularly ammeter shunts, because of its virtually zero temperature coefficient of resistance value and long term stability.

Manganin is also used in gauges for studies of high-pressure shock waves (such as those generated from the detonation of explosives) because it has low strain sensitivity but high hydrostatic pressure sensitivity

Chemical Content, %

Ni	Mn	Fe	Si	Cu	Other	ROHS Directive
						Cd	Pb	Hg	Cr
2~3	11~13	0.5(max)	micro	Bal	-	ND	ND	ND	ND

Mechanical Properties

Max Continuous Service Temp	0-100ºC
Resisivity at 20ºC	0.47±0.03ohm mm2/m
Density	8.44 g/cm3
Thermal Conductivity	-3~+20KJ/m·h·ºC
Temp Coefficient of Resistance at 20 ºC	-2~+2α×10-6/ºC(Class0)
	-2~+2α×10-6/ºC(Class1)
	-2~+2α×10-6/ºC(Class2)
Melting Point	1450ºC
Tensile Strength(Hard)	635 Mpa(min)
Tensile Strength,N/mm2 Annealed,Soft	340~535
Elongation	15%(min)
EMF vs Cu, μV/ºC (0~100ºC)	1
Micrographic Structure	austenite
Magnetic Property	non
Micrographic Structure	Ferrite
Magnetic Property	Magnetic

Application of Manganin
Manganin foil and wire is used in the manufacture of resistor, Particularly ammeter shunt, because of its virtually zero temperature coefficient of resistance value and long term stability.

The data provided in this document is protected under applicable laws, including but not limited to copyright law and international agreements

Product size
Wire: 0.018mm-10mm
Ribbon: 0.05*0.2mm-2.0*6.0mm
Strip: 0.5*5.0mm-5.0*250mm
Bar: 10-100mm

Pls be free to contact us if you need high quality manganin strip.
