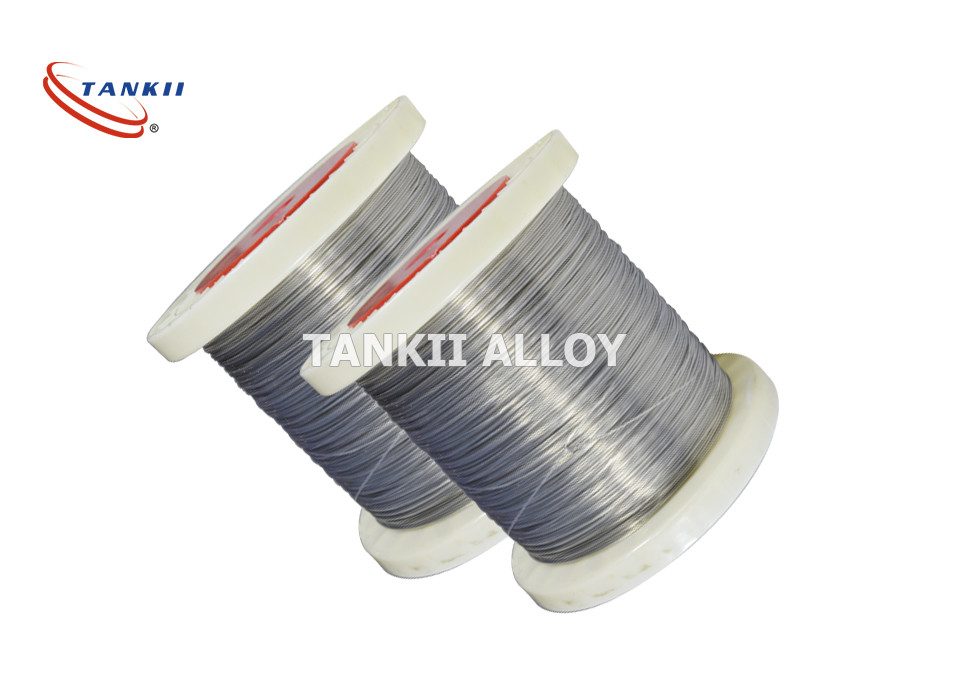

CuNi 30 / CuNi 44 Resistance Wire /Nickel Alloy 30/Cuprothal 30 Resistance Wire

Name: CuNi 30 / CuNi 44 Resistance Wire /Nickel Alloy 30/Cuprothal 30 Resistance Wire
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: CuNi 30 / CuNi 44
Price: 21 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Tankii

Model Number: CuNi 30 / CuNi 44

Payment & Shipping Terms

Minimum Order Quantity: 20kg

Price: USD+21USD/KG

Packaging Details: Cardboard box

Supply Ability: 10TON/MONTH

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                            Nickel Alloy 30 Resistance Wire, CuNi 30 Resistance Wire, Cuprothal 30 Resistance Wire


Range Of Application:

Cold-Resistant

Range Of Application:

Cold-Resistant

Description

CuNi 30 / CuNi 44 Resistance Wire /Nickel Alloy 30/Cuprothal 30 Resistance Wire

Product Description

CuNi 30 / CuNi 44 Resistance Wire /Nickel Alloy 30/Cuprothal 30 Resistance Wire

CuNi alloy grade: Constantan, CuNi1, CuNi2, CuNi6, CuNi8, CuNi10, CuNi14, CuNi19, CuNi23, CuMu12Ni, CuNi34, CuNi40 (6J40), CuNi44.

Copper nickel alloy sizes:
Wire: 0.018-10mm Ribbons: 0.05*0.2-2.0*6.0mm
Strip: 0.005*5.0-5.0*250mm
Bars: OD 4-100mm

As a big manufacturer and exporter in China on the line of electric resistance alloy, we can supply all kinds of electric resistance alloy wire and strips (resistance steel wire and strips),
Material: CuNi1, CuNi2, CuNi6, CuNi8, CuNi14, CuNi19, CuNi23, CuNi30, CuNi34, CuNi44
General Description
Due to has high tensile strength and increased resistivity values, TANKII copper nickel alloy wires are the first choice for applications as resistance wires. With the different nickel amount in this product range, the characteristics of the wire can be chosen according to your requirements. Copper nickel alloy wires are available as bare wire, or enamelled wire with any insulation and self-bonding enamel. Furthermore, litz wire made of enamelled copper nickel alloy wire are available.
Features
1. Higher resistance than copper
2. High tensile strength
3. Good bending proof performance
Application
1. Heating applications
2. Resistance wire
3. Applications with high mechanical requirements
4. Others
Appicaton:
Low-voltage circuit breaker, thermal overload relay, electrical heating cable, electrical heating mats, snow melting cable and mats, ceiling radiant heating mats, Floor heating mats & Cables, Freeze protection cables, electrical heat tracers, PTFE heating cables, hose heaters, and other low-voltage electrical product
Size
Wires: 0.018-10mm Ribbons: 0.05*0.2-2.0*6.0mm
Strips: 0.05*5.0-5.0*250mm Bars: D10-100mm

Characteristic	Resistivity ( 200C μΩ.m)	Max.working Temperature ( 0C)	Tensile Strength (Mpa)	Melting point (0C)	Density ( g/cm3)	TCR x10-6/ 0C (20~600 0C)	EMF vs Cu (μV/ 0C) (0~100 0C)
Alloy Nomenclature
NC005(CuNi2)	0.05	200	≥220	1090	8.9	<120	-12

CuNi 30 / CuNi 44 Resistance Wire /Nickel Alloy 30/Cuprothal 30 Resistance Wire 0
