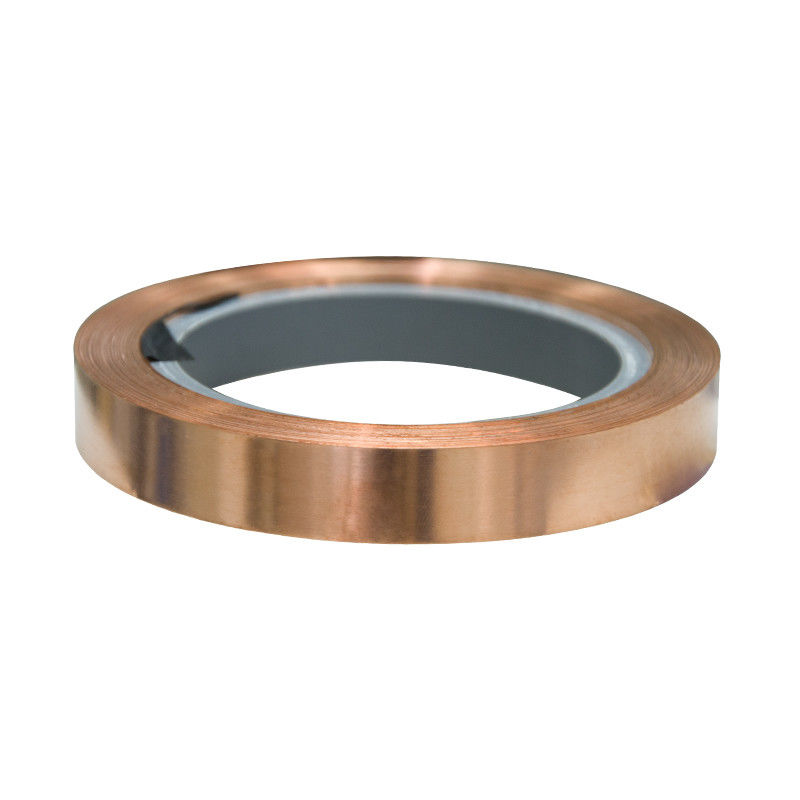

Copper zirconium Sheets C1100 C12200 C18150 C18200 C15000 C15100 CuCrZr C18000 Copper Plate Strip for sale

Name: Copper zirconium Sheets C1100 C12200 C18150 C18200 C15000 C15100 CuCrZr C18000 Copper Plate Strip for sale
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: C15100
Price: 35.00 USD
Availability: InStock

Product Details

Place of Origin: Shanghai, China

Brand Name: TANKII

Certification: ISO9001 SGS

Model Number: C15100

Payment & Shipping Terms

Minimum Order Quantity: 1000 KG

Price: negotiable

Packaging Details: Wooned Case

Delivery Time: 7-20 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 500 Tons per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    C18200 Copper zirconium Sheets, C18150 Copper zirconium Sheets, C15000 Copper zirconium Sheets


Material:	CUZr Alloy	Surface:	Bright Surface
Thickness:	0.03-2.5mm	Width:	5-600mm
Density:	8.9 G/cm3	HS:	74099000
Origin:	Shanghai-China	Production Capacity:	500ton/Month

Material:	CUZr Alloy
Surface:	Bright Surface
Thickness:	0.03-2.5mm
Width:	5-600mm
Density:	8.9 G/cm3
HS:	74099000
Origin:	Shanghai-China
Production Capacity:	500ton/Month

Description

Copper zirconium Sheets C1100 C12200 C18150 C18200 C15000 C15100 CuCrZr C18000 Copper Plate Strip for sale

CHEMICAL COMPOSITION

	Zr%	Cu%
Nominal Composition		Bal.
Min	0.05
Max	0.15

PHYSICAL PROPERTIES

Density g/cm3	8.9
Conductivity at 20°C %IACS	92
Elastic Modulus GPa	120
Poisson's ratio	0.33
Thermal expansion coefficient 10-6/ K	17.6

MECHANICAL PROPERTIES

State	Yield strength	Tensile strength	Elongation	Hardness
	Mpa	MPa	A50%	HV
R325	≥310	325-385	≥2	100-125
R365	≥350	365-425	≥2	120-145
R405	≥395	405-450	≥1	125-150
R440	≥425	440-500	≥1	≥135

Bending performance

Bending thickness: ≤0.5 mm, bending width: 10 mm

State	90° R/T		180° R/T
	GW	BW	GW	BW
R325	-	-	-	-
R365	0	0	-	-
R405	0.5	0.5	-	-
R440	1.0	1.0	-	-

Alloy System	designation	UNS	EN	JIS	GB (China)
Cu	TK11000	C11000	Cu-ETP	C1100	T2
CuCr/Zr	TK15100	C15100	CuZr0.1	C1510	TZr0.1
	TK18160	C18160	CuCr0.5Zr	—
	TK18150	C18150	CuCr1Zr	—	TCr1-0.15
CuCrSiTi	TK18070	C18070	CuCrSiTi	—	TCr0.3-0.2- 0.05
CuNiSnCrTi	TK18090	—	—	—
CuNiP	TK19000	C19000	CuNi1P	—
CuTi	TK19920	C19920	—	—	—
CuFe	TK19210	C19210	CuFe0.1P	C1921	TFe0.1
CuFe	TK19400	C19400	CuFe2P	C1940	TFe2.5
CuNiSi	TK19005	C19005	—	—	—
	TK19010	C19010	CuNiSi	—	—
	TK70260	C70260	CuNi2Si	C7026	BSi2-0.45
	TK70250	C70250	CuNi3SiMg	C7025	BSi3.2-0.7
	TK70250HS	C70250	CuNi4SiMg	C7025	—
CuNiCoSi	TK70318	C70318	CuNi3CoSi	—	—
Special Brass	TK42300	C42300	CuZn10Sn1NiSi	—	—
Special Brass	TK42500	C42500	CuSn3Zn9	—	HSn88-2
CuSn / Bronze	TK14415	C14415	CuSn0.15	—	TSn0.12
	TK51000	C51000	CuSn5	C5102	QSn5-0.2
	TK51100*	C51100	CuSn4	C5111	QSn4-0.3
	TK51900*	C51900	CuSn6	C5191	QSn6-0.2
	TK52100*	C52100	CuSn8	C5210	QSn8-0.3
	TK52400	C52400	CuSn10	C5241	QSn10-0.2
CuNiZn	TK77000	C77000	CuNi18Zn27	C7701	BZn18-26
CuNiZn	TK75200	C75200	CuNi18Zn20	C7521	BZn18-18

Applications:
- Electrical connectors and contacts
- Switch and relay components
- Semiconductor lead frames
- Precision machined parts
- Automotive components
- Electronic hardware
Benefits:
- The addition of tellurium improves the machinability of the copper alloy without significantly reducing its electrical and thermal conductivity.
- Increased strength and hardness make C15100 suitable for applications requiring good mechanical properties.
- The alloy's resistance to stress relaxation and hydrogen embrittlement improves its reliability in certain applications.
Availability:
- C15100 copper alloy is widely available in various forms, such as rods, bars, wires, and strips, from numerous metal suppliers and manufacturers.

The unique combination of properties offered by C15100 copper alloy makes it a popular choice for a wide range of electrical, electronic, and mechanical applications where a balance of high conductivity, machinability, and mechanical performance is required.
