Product Details
Place of Origin: Shanghai, China
Brand Name: TANKII
Certification: ISO9001,SGS
Model Number: C17200 C17500 C17510 C17410 C17460
Payment & Shipping Terms
Minimum Order Quantity: 20 KG
Price: negotiable
Packaging Details: Spool + Carton + Wooned Case
Delivery Time: 7-20 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 Tons per month
Model NO.: |
Beryllium Copper Alloy |
Name: |
Beryllium Copper ROd |
Wire Diameter: |
3-300mm |
Surface: |
Bright Surface |
Origin: |
Shanghai,China |
Trademark: |
TANKII |
Transport Package: |
Wooden Box |
HS Code: |
7407290000 |
Model NO.: |
Beryllium Copper Alloy |
Name: |
Beryllium Copper ROd |
Wire Diameter: |
3-300mm |
Surface: |
Bright Surface |
Origin: |
Shanghai,China |
Trademark: |
TANKII |
Transport Package: |
Wooden Box |
HS Code: |
7407290000 |

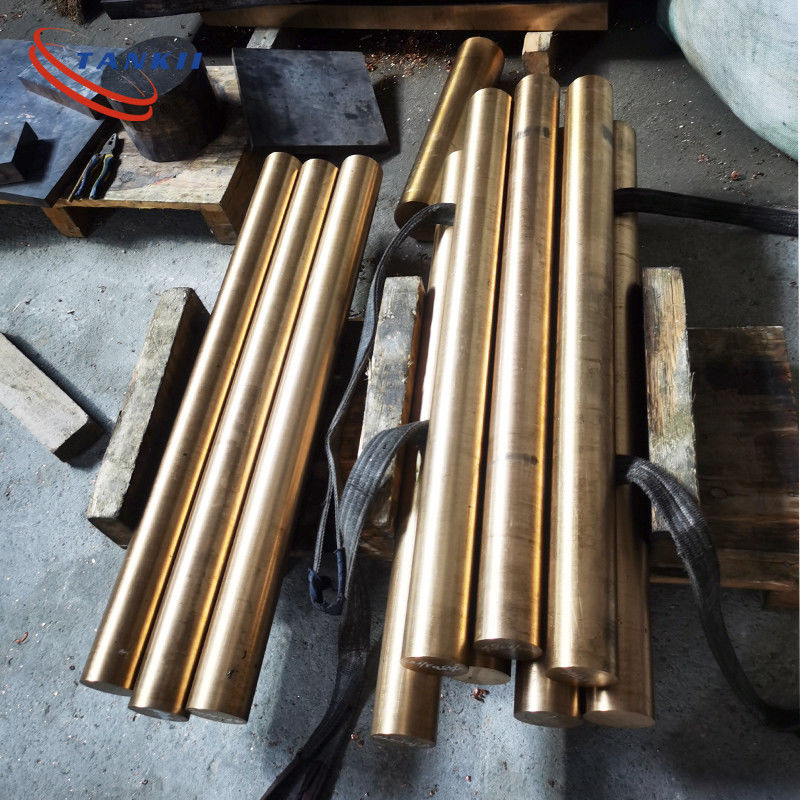

Good Quality C17200 C17500 C17510 C17410 C17460 Beryllium Copper round Bar, Beryllium Copper Bar
With our rich experience and considerate services, we have been recognized as a reliable supplier for many international buyers for Good Quality China C17200 C17500 C17510 C17410 C17460 Beryllium Copperround Bar, Beryllium Copper Bar, We sincerely welcome both foreign and domestic business partners, and hope to work with you in the near future!
With our rich experience and considerate services, we have been recognized as a reliable supplier for many international buyers for copper rod, For more than ten years experience in this filed, our company has gained high reputation from home and abroad. So we welcome friends from all over the world to come and contact us, not only for business, but also for friendship.
*The dispersion strengthened copper alloy has excellent resistance to high temperature softening in addition to good electrical ad thermal conductivity.It is one of the best among all high-conductivity and high-temperature copper alloys.
*Our high-strength and high-conductivity Al2O3 dispersion strengthened copper wire rods take the place of imported equivalents due to high performance indexes.A roll of finished product weighs 150kg
*Two invention patents have been awarded.The company is solely responsible for drafting up Al2O3 Dispersion Strengthened Copper Wire Rods,the product’s national standard for the industry.
1. Chemical Composition of Al2O3 Dispersion Strengthened Copper Rod And Wire
Model | Cu+Ag | Ala | Ob |
C15715 | ≥99.62 | 0.13-0.17 | 0.12-0.19 |
C15725 | ≥99.43 | 0.23-0.27 | 0.20-0.28 |
C15760 | ≥98.77 | 0.58-0.62 | 0.52-0.59 |
2. Physical And Mechanical Properties of Al2O3 Dispersion Strengthened Copper Rod And Wire
Model | State | Tensile Strength Rm(MPa) | Specific Plastic Extending Strength Rp0.2(MPa) | Elongation Afer Fracture A% | Rockwell Hardness HRB | Electrical Conductivity(IACS,%) |
C15715 | H04 | ≥427 | ≥407 | ≥21 | ≥63 | ≥92 |
C15725 | H04 | ≥483 | ≥448 | ≥17 | ≥77 | ≥89 |
C15760 | H04 | ≥552 | ≥517 | ≥15 | ≥83 | ≥78 |
3. Application Fields of Al2O3 Dispersion Strengthened Copper Rod And Wire
It is mainly used for resistance welding electrode heads,electrode caps,welding wheels,electrode arms,contact tips for cutting and gas shielding welding,vacuum switches,electrical connectors,contacts,electrical engineering in service sector,electronics and communications,automobiles,home appliance and vessel manufacture,molds,etc.With our rich experience and considerate services, we have been recognized as a reliable supplier for many international buyers for Good Quality China C17200 C17500 C17510 C17410 C17460 Beryllium Copperround Bar, Beryllium Copper Bar, We sincerely welcome both foreign and domestic business partners, and hope to work with you in the near future!
Good Quality Beryllium copper rod, For more than ten years experience in this filed, our company has gained high reputation from home and abroad. So we welcome friends from all over the world to come and contact us, not only for business, but also for friendship.
