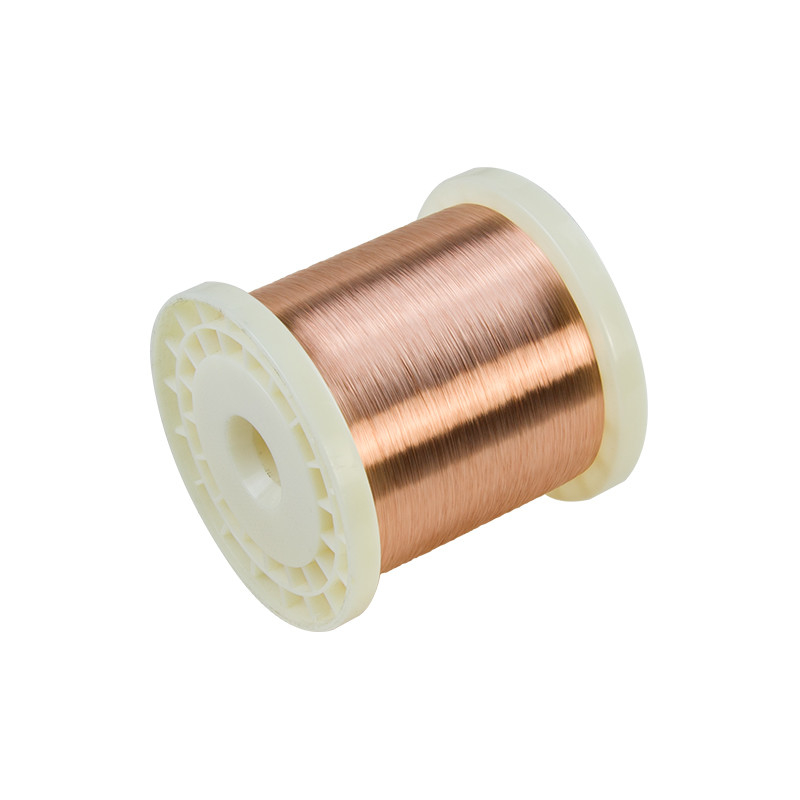

100% Original C17200 C17300 Beryllium Copper Wire Cube2/CuBe2Pb Factory Price

Product Details

Place of Origin: Shanghai, China

Brand Name: TANKII

Certification: ISO9001,SGS

Model Number: C1720

Payment & Shipping Terms

Minimum Order Quantity: 10KG

Price: negotiable

Packaging Details: Spool + Carton + Wooned Case

Delivery Time: 7-20 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 100 Tons per month

Get Best Price
Contact Now
Specifications
Highlight:

C17300 Beryllium Copper Wire

,

C17200 C17300 Copper Wire

,

CuBe2Pb Copper Wire

Model NO.:
Beryllium Copper Alloy
Name:
Beryllium Copper Wire
Wire Diameter:
0.025 Mm Min.
Surface:
Bright
Origin:
Shanghai,China
Trademark:
TANKII
Transport Package:
Sppol Carton Wooden Box
HS Code:
74099000
Model NO.:
Beryllium Copper Alloy
Name:
Beryllium Copper Wire
Wire Diameter:
0.025 Mm Min.
Surface:
Bright
Origin:
Shanghai,China
Trademark:
TANKII
Transport Package:
Sppol Carton Wooden Box
HS Code:
74099000
Description
100% Original C17200 C17300 Beryllium Copper Wire Cube2/CuBe2Pb Factory Price





100% Original C17200 C17300 Beryllium Copper Wire Cube2/CuBe2Pb Factory Price



It adheres into the tenet “Honest, industrious, enterprising, innovative” to create new merchandise regularly. It regards prospects, success as its very own success. Let us develop prosperous future hand in hand for Wholesale Discount Cube Alloy Wire C17200 C17500 C17300 ASTM B197 0.1mm-10mm for Instrument Parts, Connectors, We are going to provide most effective quality, quite possibly the most current market aggressive rate, for each and every new and outdated consumers with the most great environmentally friendly solutions.
It adheres into the tenet “Honest, industrious, enterprising, innovative” to create new merchandise regularly. It regards prospects, success as its very own success. Let us develop prosperous future hand in hand for C17200 and C17300 wire, Our company mission is that providing high quality and beautiful products with reasonable price and strive to gain 100% good reputation from our clients. We believe Profession achieves excellence! We welcome you to cooperate with us and grow up together.

Beryllium copper (BeCu) wire is a type of metallic wire made from an alloy of copper and beryllium. This alloy is known for its exceptional mechanical properties, high electrical and thermal conductivity, and corrosion resistance. Some key features and applications of beryllium copper wire include:

  1. Composition: Beryllium copper alloys typically contain around 1.8-2.5% beryllium, with the remainder being copper.

  2. Mechanical Properties:

    • High strength and hardness: BeCu wire exhibits significantly higher strength and hardness compared to pure copper, making it suitable for applications that require durable and wear-resistant components.
    • Excellent fatigue resistance: BeCu wire can withstand high cyclic loads without experiencing fatigue failure, making it useful in applications that involve repeated stress or vibration.
  3. Electrical and Thermal Conductivity:

    • Good electrical conductivity: BeCu wire maintains a high level of electrical conductivity, close to that of pure copper, making it suitable for electrical applications.
    • Thermal conductivity: BeCu wire also has good thermal conductivity, allowing for efficient heat transfer in applications that require heat dissipation.
  4. Corrosion Resistance:

    • The addition of beryllium to copper significantly improves the alloy's resistance to corrosion, even in harsh environments, which extends the lifespan of BeCu wire components.


1. Chemical Composition of TANKII-High Precision Beryllium Copper Wire

Model Be Ni+Co Ni+Co+Fe Ni+Co+Fe+Be+Cu
C17200 1.8-2.0 ≥0.20 ≤0.6 ≥99.5

2. Physical Properties of TANKII-High Precision Beryllium Copper Wire

Diameter Tensile Strength(MPa)
≤φ0.20mm 784-1078
>φ0.20mm 686-980

3. Dimension and Allowable Deviation of TANKII-High Precision Beryllium Copper Wire

Size φ0.03-φ0.09 φ0.10-φ0.29 φ0.30-φ1.0
Allowable Deviation -0.003 -0.005 -0.01
Roundness The diameter shall not exceed the allowable deviation range

4. Application of TANKII-High Precision Beryllium Copper Wire

  1. Applications:

    • Electrical contacts and connectors: C17200 wire is commonly used in the production of electrical contacts, connectors, and springs due to its combination of high conductivity and excellent mechanical properties.
    • Springs and fasteners: The strength and fatigue resistance of C17200 wire make it suitable for the manufacture of various types of springs and fasteners.
    • Telecommunications equipment: C17200 wire is used in the production of components for telecommunications equipment, such as relays, switches, and printed circuit boards.
    • Aerospace and defense applications: C17200 wire is employed in aerospace and defense equipment where high strength, corrosion resistance, and conductivity are required.
    • Automotive and industrial applications: C17200 wire is used in various automotive and industrial applications, such as sensors, actuators, and other components that operate in demanding environments.

The unique combination of properties exhibited by C17200 wire, including high strength, good conductivity, and excellent corrosion resistance, make it a widely used material in various industries, from electronics and telecommunications to aerospace and automotive applications.
