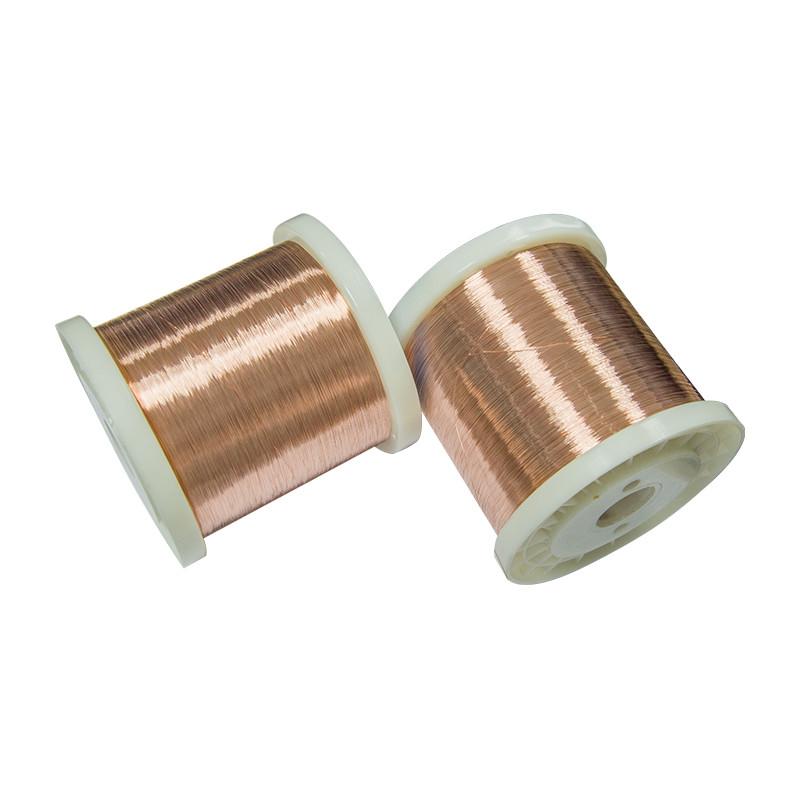

Copper Manganese Alloy Resistance Ribbon Flat Enameled Bare Wire

Name: Copper Manganese Alloy Resistance Ribbon Flat Enameled Bare Wire
Brand: TANKII
SKU: Manganin 43
Rating: 4.5 (158 reviews)

Product Details

Place of Origin: Shanghai, China

Brand Name: TANKII

Certification: ISO9001 SGS

Model Number: Manganin 43

Payment & Shipping Terms

Minimum Order Quantity: 20KG

Price: negotiable

Packaging Details: Spool + Carton + Wooned Case

Delivery Time: 7-20 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 100 Tons per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    Copper Manganese Alloy Resistance Ribbon, Manganin 43 Flat Enameled Bare Wire, Enameled Flat Resistance Ribbon


Model NO.:	Manganin 43	Standard:	GB/T
Surface:	Bright Surface	Resistity:	0.44
Diameter:	0.05-5.0mm	Density:	8.4 G/cm3
Shape:	Round Wire	Insulated:	Enameled

Model NO.:	Manganin 43
Standard:	GB/T
Surface:	Bright Surface
Resistity:	0.44
Diameter:	0.05-5.0mm
Density:	8.4 G/cm3
Shape:	Round Wire
Insulated:	Enameled

Description

Copper Manganese Alloy Resistance Ribbon Flat Enameled Bare Wire

Enameled Bare Wire Copper-Manganese Alloy Manganin Resistance ribbon / flat Wire

Product Description

Shunt Manganin widely used for Shunt resistor with the highest requirements, shunt manganin has been used in precision built electrical components such as Wheatstone bridges, decade boxes, voltage drivers, potentiometers and resistance standards.

Chemical Content, %

Ni	Mn	Fe	Si	Cu	Other	ROHS Directive
						Cd	Pb	Hg	Cr
2~5	11~13	<0.5	micro	Bal	-	ND	ND	ND	ND

Mechanical Properties

Max Continuous Service Temp	0-100ºC
Resisivity at 20ºC	0.44±0.04ohm mm2/m
Density	8.4 g/cm3
Thermal Conductivity	40 KJ/m·h·ºC
Temp Coefficient of Resistance at 20 ºC	0~40α×10-6/ºC
Melting Point	1450ºC
Tensile Strength(Hard)	585 Mpa(min)
Tensile Strength,N/mm2 Annealed,Soft	390-535
Elongation	6~15%
EMF vs Cu, μV/ºC (0~100ºC)	2(max)
Micrographic Structure	austenite
Magnetic Property	non
Hardness	200-260HB
Micrographic Structure	Ferrite
Magnetic Property	Magnetic

Type of insulation

Insulation-enamelled Name	Thermal LevelºC (working time 2000h)	Code Name	GB Code	ANSI. TYPE
Polyurethane enamelled wire	130	UEW	QA	MW75C
Polyester enamelled wire	155	PEW	QZ	MW5C
Polyester-imide enamelled wire	180	EIW	QZY	MW30C
Polyester-imide and polyamide-imide double coated enameled wire	200	EIWH (DFWF)	QZY/XY	MW35C
Polyamide-imide enamelled wire	220	AIW	QXY	MW81C

Copper Manganese Alloy Resistance Ribbon Flat Enameled Bare Wire 0
