Product Details:
|
| Model Number: | : Constantan | Application: | : Resistance |
|---|---|---|---|
| Conductor Type: | : Solid | Chemical Composition: | : Cu, Mn, Ni |
| Constantan Wire Resistivity: | : 0.48±0.03 | Series: | :CuNi(1,2,6,8,10,14,19,23) |
| High Light: | nickel copper alloy,copper and nickel alloy |
||
CuNi alloy Grade: Constantan, CuNi1, CuNi2, CuNi6, CuNi8, CuNi10, CuNi14, CuNi19, CuNi23, CuNi30, CuNi34, CuNi40 (6J40), CuNi44.

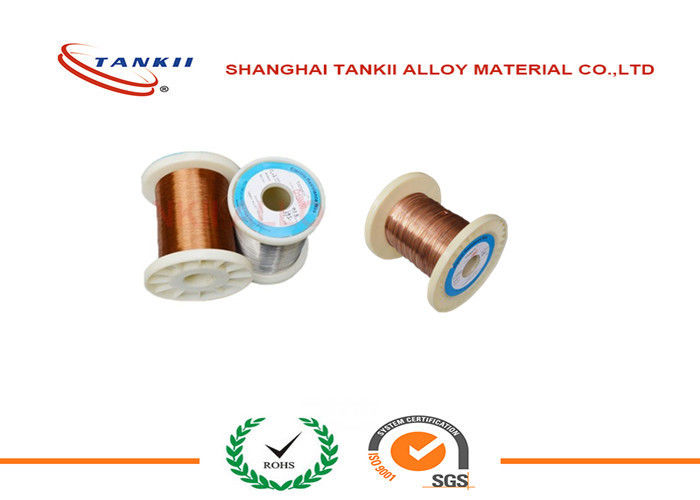

Our product are in the form of wire, ribbon, strip, foil.
Constantan (CuNi44)
CuNi44, also called Constantan, has a very low temperature coefficient, high electrical resistance, high ductility and non-corroding properties. It is suitable for use at temperatures up to 600°C (1110°F). As a very malleable, very ductile alloy, it has a very good resistance to oxidation.
The alloy is non-magnetic. It is suitable for electrical resistors, potentiometers, heating wires, heating cables and mats. Ribbons are used for heating of bimetals. Another field of application is manufacturing of thermocouples because it develops a high electromotive force (EMF) in association with others metals
Constantan
Chemical Content, %
|
Ni |
Mn |
Fe |
Si |
Cu |
Other |
ROHS Directive |
|||
|
Cd |
Pb |
Hg |
Cr |
||||||
|
44 |
1.50% |
0.5 |
- |
Bal |
- |
ND |
ND |
ND |
ND |
Mechanical Properties
|
Max Continuous Service Temp |
400℃ |
|
Resisivity at 20℃ |
0.49±5%ohm mm2/m |
|
Density |
8.9 g/cm3 |
|
Thermal Conductivity |
-6(Max) |
|
Melting Point |
1280℃ |
|
Tensile Strength,N/mm2 Annealed,Soft |
340~535 Mpa |
|
Tensile Strength,N/mm3 Cold Rolled |
680~1070 Mpa |
|
Elongation(anneal) |
25%(Min) |
|
Elongation(cold rolled) |
≥Min)2%(Min) |
|
EMF vs Cu, μV/ºC (0~100ºC) |
-43 |
|
Micrographic Structure |
austenite |
|
Magnetic Property |
Non |
Manganin
Chemical Content, %
|
Ni |
Mn |
Fe |
Si |
Cu |
Other |
ROHS Directive |
|||
|
Cd |
Pb |
Hg |
Cr |
||||||
|
2~5 |
11~13 |
<0.5 |
micro |
Bal |
- |
ND |
ND |
ND |
ND |
Mechanical Properties
|
Max Continuous Service Temp |
0-100℃ |
|
Resisivity at 20℃ |
0.44±0.04ohm mm2/m |
|
Density |
8.4 g/cm3 |
|
Thermal Conductivity |
40 KJ/m·h·℃ |
|
Temp Coefficient of Resistance at 20 ºC |
0~40α×10-6/ºC |
|
Melting Point |
1450℃ |
|
Tensile Strength(Hard) |
585 Mpa(min) |
|
Tensile Strength,N/mm2 Annealed,Soft |
390-535 |
|
Elongation |
6~15% |
|
EMF vs Cu, μV/ºC (0~100ºC) |
2(max) |
|
Micrographic Structure |
austenite |
|
Magnetic Property |
non |
|
Hardness |
200-260HB |
|
Micrographic Structure |
Ferrite |
|
Magnetic Property |
Magnetic |
Resistance Alloy- Constantan Sizes / Temper Capabilities
