Product Details:
|
| Type: | : Wire | Conductor Material: | :CuNiMn |
|---|---|---|---|
| Application: | : Resistance | Series: | : CuNi(1,2,6,8,10,14,19,23) |
| Sample Free: | : Available | Conductor Type: | : Solid |
| Highlight: | nickel copper alloy,copper and nickel alloy |
||

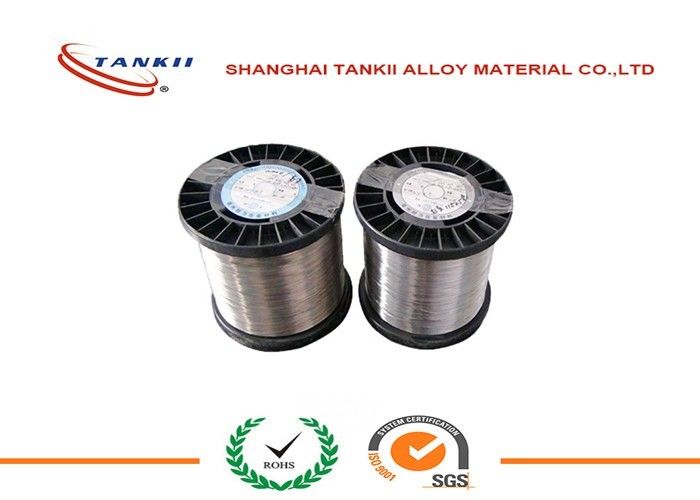

Constantan Wire Definition
Resistance alloy with moderate resistivity and low temperature coefficent of resistance with a flat resistance/temperature curve over a wider range than the "manganins". Constantan also shows better corrosion resistance than the man ganins. Uses tend to be restricted to ac circuits. Constantan is also the negative element of the type J thermocouple with Iron being the positive; type J thermocouples are used in heat treating applications. Also, it is the negative element of the type T thermocouple with OFHC Copper the positive; type T thermocouples are used at cryogenic temperatures.
Chemical Content, %
|
Ni |
Mn |
Fe |
Si |
Cu |
Other |
ROHS Directive |
|||
|
Cd |
Pb |
Hg |
Cr |
||||||
|
44 |
1.50% |
0.5 |
- |
Bal |
- |
ND |
ND |
ND |
ND |
Mechanical Properties
|
Max Continuous Service Temp |
400℃ |
|
Resisivity at 20℃ |
0.49±5%ohm mm2/m |
|
Density |
8.9 g/cm3 |
|
Thermal Conductivity |
-6(Max) |
|
Melting Point |
1280℃ |
|
Tensile Strength,N/mm2 Annealed,Soft |
340~535 Mpa |
|
Tensile Strength,N/mm3 Cold Rolled |
680~1070 Mpa |
|
Elongation(anneal) |
25%(Min) |
|
Elongation(cold rolled) |
≥Min)2%(Min) |
|
EMF vs Cu, μV/ºC (0~100ºC) |
-43 |
|
Micrographic Structure |
austenite |
|
Magnetic Property |
Non |
Constantan Wire Tradenames:
Cuprothal, Alloy 294, Cuprothal 294, Nico, MWS-294, Cupron, Copel, Alloy 45,
Neutrology, Advance, CuNi 102, Cu-Ni 44, Konstantan
Resistance Alloy- Constantan Sizes / Temper Capabilities
Resistance alloy constantan wire material:
Constantan, CuNi1, CuNi2, CuNi6, CuNi8, CuNi10, CuNi14, CuNi19, CuNi23, CuNi30, CuNi34, CuNi40 (6J40), CuNi44.
Characteristics
Constantan has a number of special characteristics due to which it is known as the most versatile alloy that is available. Some of its important characteristics are:
