Product Details
Place of Origin: CHINA
Brand Name: TANKII
Certification: ISO9001,SGS
Model Number: 6J8, 6J12, 6J13
Payment & Shipping Terms
Minimum Order Quantity: 5KG
Packaging Details: on spool ,in wooden case
Payment Terms: Western Union, L/C, T/T
State: |
Bright Annealed |
Type: |
Bare |
Application: |
Heating |
Conductor Type: |
Solid |
Conductor Material: |
Copper |
Insulation Material: |
None |
Material: |
Steel |
State: |
Bright Annealed |
Type: |
Bare |
Application: |
Heating |
Conductor Type: |
Solid |
Conductor Material: |
Copper |
Insulation Material: |
None |
Material: |
Steel |
1. Description

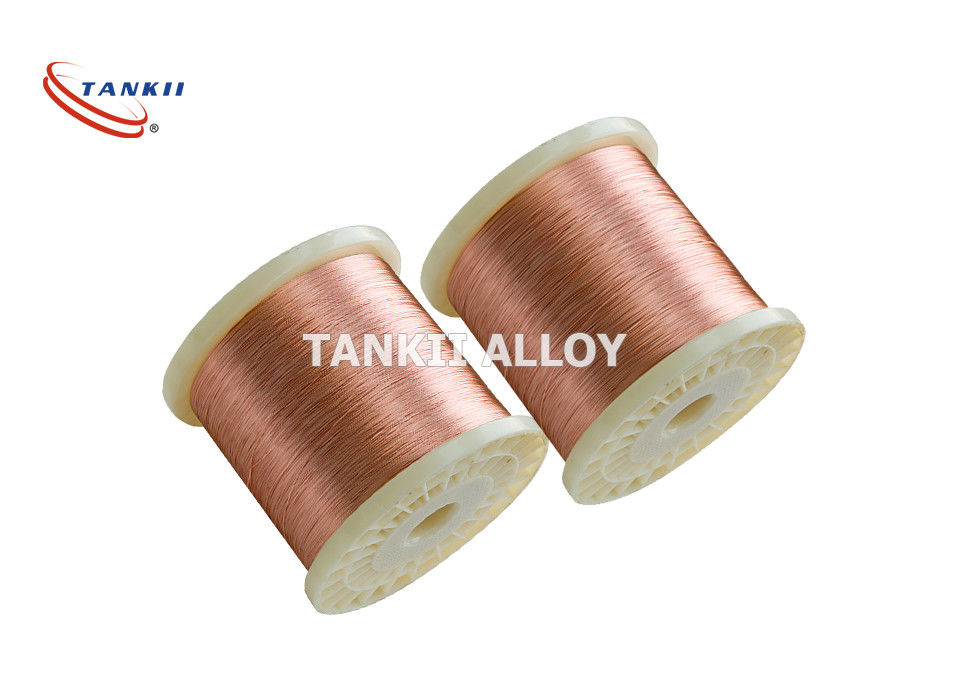

Manganin is a trademarked name for an alloy of typically 86% copper, 12% manganese, and 2% nickel.
Manganin foil and wire is used in the manufacture of resistors, particularly ammeter shunts, because of its virtually zero temperature coefficient of resistance value and long term stability.
Manganin wire is also used as an electrical conductor in cryogenic systems, minimizing heat transfer between points which need electrical connections.
Size dimension range:
Wire: 0.05-10mm
Ribbons: 0.05*0.2-2.0*6.0mm
Strip: 0.05*5.0-5.0*250mm
Chemical Content, %
| Ni | Mn | Fe | Si | Cu | Other | ROHS Directive | |||
| Cd | Pb | Hg | Cr | ||||||
| 2~5 | 11~13 | <0.5 | micro | Bal | - | ND | ND | ND | ND |
Mechanical Properties
| Max Continuous Service Temp | 0-100ºC |
| Resisivity at 20ºC | 0.44±0.04ohm mm2/m |
| Density | 8.4 g/cm3 |
| Thermal Conductivity | 40 KJ/m·h·ºC |
| Temp Coefficient of Resistance at 20 ºC | 0~40α×10-6/ºC |
| Melting Point | 1450ºC |
| Tensile Strength(Hard) | 585 Mpa(min) |
| Tensile Strength,N/mm2 Annealed,Soft | 390-535 |
| Elongation | 6~15% |
| EMF vs Cu, μV/ºC (0~100ºC) | 2(max) |
| Micrographic Structure | austenite |
| Magnetic Property | non |
| Hardness | 200-260HB |
| Micrographic Structure | Ferrite |
| Magnetic Property | Magnetic |
OTHER Chemical Composition And Main Properties Of Matrial
1. What's the minimum quantity customer can order?
If we have your size in stock, we can provide any quantity you want.
If we do not have, for spool wire, we can produce 1 spool, about 2-3kg. For coil wire, 25kg.
2. How can you pay for small sample amount?
We have Western union account, wire transfer for sample amount also ok.
3. Customer do not have express account. How will us arrange the delivery for sample order?
Just need to provide your address information, we will check the express cost, you can arrange the express cost together with sample value.
4. What's our payment terms?
We can accept LC T/T payment terms, it also depending on delivery and total amount. Let's talk more in details after getting your detailed requirements.
5. Do you provide free samples?
If you want several meters and we have stock of your size, we can provide, customer need to bear the International express cost.
6. What's our working time?
We will give you reply through email/phone Online contact tool within 24 hours. No matter working day or holidays. Pls contact with me whenever you need: Mobile: +86-18017457857
