Product Details
Place of Origin: China
Brand Name: Tankii
Certification: ISO 9001
Model Number: SG-CuAl8
Payment & Shipping Terms
Minimum Order Quantity: 15KG
Price: 4.5-30 usd / kg
Packaging Details: spool，coil
Delivery Time: 5-30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20000kg/month
Chemical Composition: |
Aluminum Bronze |
Application: |
Welding |
Shape: |
Wire |
Dimensions: |
1.6mm,3.17 Mm |
Surface: |
Bright |
Product Name: |
AWS A5.7 ERCuAl-A1 DIN1733 SG-CuAl8 |
Chemical Composition: |
Aluminum Bronze |
Application: |
Welding |
Shape: |
Wire |
Dimensions: |
1.6mm,3.17 Mm |
Surface: |
Bright |
Product Name: |
AWS A5.7 ERCuAl-A1 DIN1733 SG-CuAl8 |

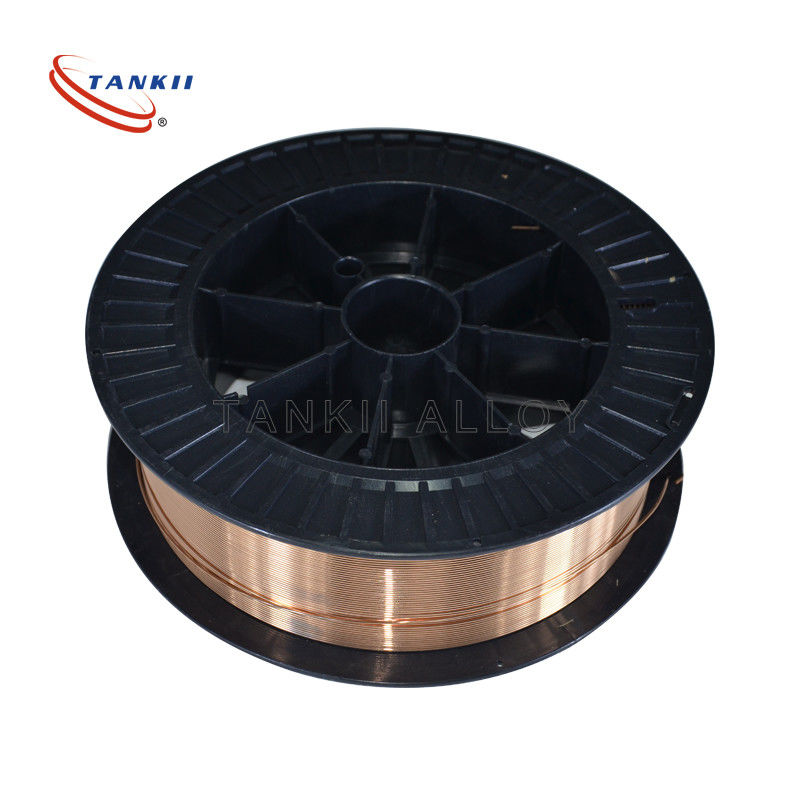

AWS A5.7 ERCuAl-A1 DIN1733 SG-CuAl8 Welding Wire Supplier Manufacture Iron-Free Aluminum Bronze Alloy Wire
ERCuAl-A1 Aluminum Bronze Welding Wire is an iron-free, aluminum bronze alloy available in spooled wire and 36” bare-filler metal rod for use with the gas metal-arc and gas tungsten-arc welding processes respectively.
ERCuAl-A1 Aluminum Bronze Welding Wire deposits are used primarily to overlay bearing and wear-resistant surfaces requiring a hardness of approximately 125 BHN and to resist corrosion especially from saltwater, metal salts, and many commonly used acids in varying concentrations and temperatures. This alloy is not recommended for joining since the deposit does not have a tendency to be hot short.
ERCuAl-A1 Aluminum Bronze Welding Wire Aluminum Bronze Welding Wire applications include tube sheets, valve seats, pickling hooks, impellers, chemical plants, and pulp mills.
| AWS Class: ERCuAl-A1 | Certification: AWS A5.7/A5.7M:2007 |
| Alloy: ERCuAl-A1 | ASME SFA A5.7 |
| Welding Position:
|
Current:
AC-DCEP |
| Tensile Strength, kpsi: | 68 |
| Yield Strength, kpsi | 28 |
| Elongation in 2” (%): | 47 |
Typical Wire Chemistry as per AWS A5.7(single values are maximum)
| Cu including Ag | Zn | Mn | Si | Al | Pb | Other |
| Remainder | 0.20 | 0.50 | 0.10 | 6.0-8.5 | 0.02 | 0.50 |
| Typical Welding Parameters | |||||
| Diameter | Process | Volt |
Amps |
GAS | |
| in | (mm) | ||||
| 1/16 | (1.6) | GTAW | 0 | 70-120 | 100% Helium or 100% Argon 40-55 CFH |
| 3/32 | (2.4) | GTAW | 0 | 120-160 | 100% Helium or 100% Argon 40-55 CFH |
| 1/8 | (3.2) | GTAW | 0 | 170-230 | 100% Helium or 100% Argon 40-55 CFH |
| Typical Welding Parameters | |||||
| Diameter | Process | Volt |
Amps |
GAS | |
| in | (mm) | ||||
| .035 | (.9) | GMAW | 20-26 | 70-120 | 100% Argon or 75% Argon, 25% Helium 45-55 CFH |
| .045 | (1.14) | GMAW | 22-28 | 120-160 | 100% Argon or 75% Argon, 25% Helium 45-55 CFH |
| 1/16 | (1.6) | GMAW | 29-32 | 250-400 | 100% Argon or 75% Argon, 25% Helium 45-55 CFH |
| 3/32 | (2.4) | GMAW | 32-34 | 170-230 | 100% Argon or 75% Argon, 25% Helium 45-55 CFH |
