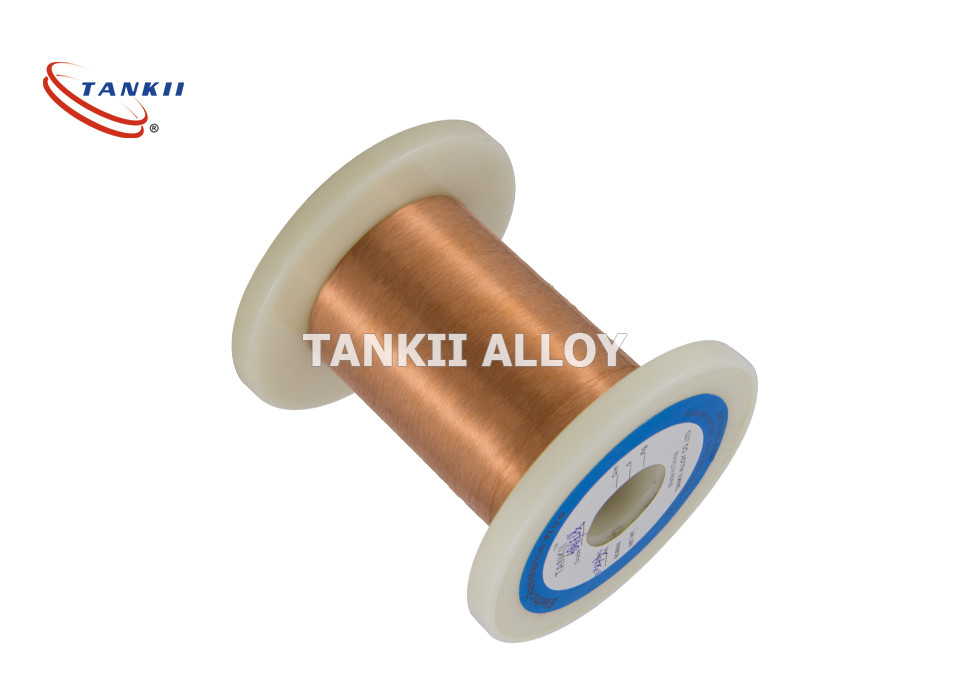

CuNi23 180 Copper Nickel Alloy Wire Flat Strip Foil Midohm

CuNi23 180 Copper Nickel Alloy Wire Flat Strip Foil Midohm
CuNi23 180 Copper Nickel Alloy Wire Flat Strip Foil Midohm

Large Image :  CuNi23 180 Copper Nickel Alloy Wire Flat Strip Foil Midohm

Product Details:
Place of Origin: Shanghai, China
Brand Name: TANKII
Certification: ISO9001: 2008
Model Number: CuNi23
Payment & Shipping Terms:
Minimum Order Quantity: 20kg
Price: Negotiation
Packaging Details: Spool, carton, plywod case with plastic film as clients required
Delivery Time: 15-28DAYS
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 300+TON+MONTH

CuNi23 180 Copper Nickel Alloy Wire Flat Strip Foil Midohm

Description
Material: Constantan/ Manganin Wire Chemical: Cu Ni/ Cu Mn
Type: Round Insulated Wire Insulation Material: Polyesterimide, Polyester
Application: Electric Instrument, Electric Part Coil And So On Class: 130,155,180,200,220
High Light:

Midohm Copper Nickel Wire

,

Flat Copper Nickel Welding Wire

,

Foil Cupronickel Wire

CuNi23 (alloy 180) Copper Nickel Alloy Wire/Flat Wire/Strip/foil Midohm

Product Description
CuNi23Mn low resistance heating alloy is widely used in low-voltage circuit breaker, thermal overload relay, and other low-voltage electrical product. It is one of the key materials of the low-voltage electrical products. The materials produced by our company have the characteristics of good resistance consistency and superior stability. We can supply all kinds of round wire, flat and sheet materials.

Chemical Content, %

Ni Mn Fe Si Cu Other ROHS Directive
Cd Pb Hg Cr
23 0.5 - - Bal - ND ND ND ND


Mechanical Properties

Max Continuous Service Temp 250ºC
Resisivity at 20ºC 0.35%ohm mm2/m
Density 8.9 g/cm3
Thermal Conductivity 16(Max)
Melting Point 115ºC
Tensile Strength,N/mm2 Annealed,Soft 270~420 Mpa
Tensile Strength,N/mm2 Cold Rolled 350~840 Mpa
Elongation(anneal) 25% (Max)
Elongation(cold rolled) 2% (Max)
EMF vs Cu, μV/ºC (0~100ºC) -25
Micrographic Structure austenite
Magnetic Property Non


CuNi23Mn Tradenames:
Alloy 180, CuNi 180, 180 Alloy, MWS-180, Cuprothal 180, Midohm, HAI-180, Cu-Ni 23, Alloy 380, Nickel alloy 180



Resistance Alloy 180 - CuNi23Mn Sizes / Temper Capabilities
Condition: Bright, Annealed, Soft
Wire diameter 0.02mm-1.0mm packing in spool, big than 1.0mm packing in coil
Rod, Bar diameter 1mm-30mm
Strip: Thickness 0.01mm-7mm, Width 1mm-280mm
Enameled condition is available



PropertiesGrade

CuNi1

CuNi2

CuNi6

CuNi8

CuMn3

CuNi10

Main Chemical Composition

Ni

1

2

6

8

_

10

Mn

_

_

_

_

3

_

Cu

Bal

Bal

Bal

Bal

Bal

Bal

Max Continuous Service Temperature(oC)

200

200

200

250

200

250

Resisivity at 20oC (Ωmm2/m)

0.03

0.05

0.10

0.12

0.12

0.15

Density(g/cm3)

8.9

8.9

8.9

8.9

8.8

8.9

Thermal Conductivity(α×10-6/oC)

<100

<120

<60

<57

<38

<50

Tensile Strength(Mpa)

≥210

≥220

≥250

≥270

≥290

≥290

EMF vs Cu(μV/oC)(0~100oC)

-8

-12

-12

-22

_

-25

Approximate Melting Point( oC)

1085

1090

1095

1097

1050

1100

Micrographic Structure

austenite

austenite

austenite

austenite

austenite

austenite

Magnetic Property

non

non

non

non

non

non



PropertiesGrade

CuNi14

CuNi19

CuNi23

CuNi30

CuNi34

CuNi44

Main Chemical Composition

Ni

14

19

23

30

34

44

Mn

0.3

0.5

0.5

1.0

1.0

1.0

Cu

Bal

Bal

Bal

Bal

Bal

Bal

Max Continuous Service Temperature(oC)

300

300

300

350

350

400

Resisivity at 20oC (Ωmm2/m)

0.20

0.25

0.30

0.35

0.40

0.49

Density(g/cm3)

8.9

8.9

8.9

8.9

8.9

8.9

Thermal Conductivity(α×10-6/oC)

<30

<25

<16

<10

<0

<-6

Tensile Strength(Mpa)

≥310

≥340

≥350

≥400

≥400

≥420

EMF vs Cu(μV/oC)(0~100oC)

-28

-32

-34

-37

-39

-43

Approximate Melting Point( oC)

1115

1135

1150

1170

1180

1280

Micrographic Structure

austenite

austenite

austenite

austenite

austenite

austenite

Magnetic Property

non

non

non

non

non

non
