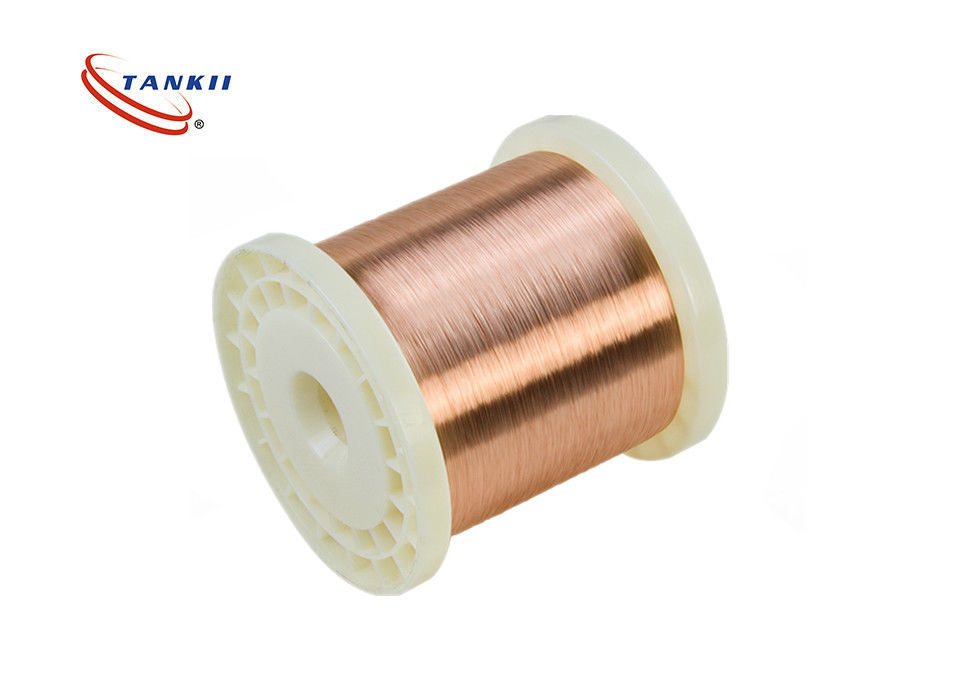

Automobile Shunt Cuni15 Copper Nickel Wire Bright Surface

Product Details

Place of Origin: Shanghai

Brand Name: TANKII

Certification: ISO9001

Model Number: Cuni 15

Payment & Shipping Terms

Minimum Order Quantity: 30kg

Price: negotiable

Packaging Details: spool,coil,carton,wooden pallet or box

Delivery Time: 8-20 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 200+ton+month

Get Best Price
Contact Now
Specifications
Highlight:

Copper Nickel Wire Bright Surface

,

Automobile Shunt Copper Nickel Wire

,

Cuni15 Copper Nickel Welding Wire

Material:
Nickel,copper,manganese
Composition:
Ni15%,Mn1%,Cu:bal
Surface:
Bright
Condition:
Soft
Application:
Cable,shunt,automobile
Material:
Nickel,copper,manganese
Composition:
Ni15%,Mn1%,Cu:bal
Surface:
Bright
Condition:
Soft
Application:
Cable,shunt,automobile
Description
Automobile Shunt Cuni15 Copper Nickel Wire Bright Surface

Automobile Shunt Cuni 15 Copper Nickel Wire Bright Surface



Copper nickel alloy,which has low electric resistance,good heat-resistant and corrosion-resistant, easy to be processed and lead welded.It is used to make the key components in the thermal overload relay,low resistance thermal circuit breaker, and the electrical appliances.It is also an important material for electrical heating cable.It's similar as s type cupronickel.



Product Description
Copper Nickel (CuNi) alloys are medium to low resistance materials typically used in applications with maximum operating temperatures up to 400°C (750°F).

With low temperature coefficients of electrical resistance, resistance, and thus performance, is consistent regardless of temperature. Copper Nickel alloys mechanically boast good ductility, are easily soldered and welded, as well as have outstanding corrosion resistance. These alloys are typically used in high current applications requiring a high level of precision.

Copper-base heat resistance alloy wire resistivity is low, has good corrosion resistance, welding property and machinable property , suitable for in thermal overload relay, a low-voltage circuit breakers, and other low- voltage electrical appliances and household appliances and other electrical appliances manufacturing heating element, and is an important material in production of heating cable.

Code Resistivity Ma.Working Temper Temp.Coeffi. Of Resistance EMF Against Copper (0~100℃) Chemical Composition (%) Mechanical,Properties
Mn Ni Cu Tensile Strength (N/mm2) Elongation % (Less than)
Diameter<=1.0mm Diameter>=1.0mm
NC003 CuNi1 0.03 200 <100 -8 - 1 Rest 210 18 25
NC005 CuNi2 0.05 200 <120 -12 - 2 Rest 220 18 25
NC010 CuNi6 0.10 220 <60 -18 - 6 Rest 250 18 25
NC012 CuNi8 0.12 250 <57 -22 - 8 Rest 270 18 25
NC015 CuNi10 0.15 250 <50 -25 - 10 Rest 290 20 25
NC020 CuNi14 0.20 250 <38 -28 0.3 14.2 Rest 310 20 25
NC025 CuNi19 0.25 300 <25 -32 0.5 19 Rest 340 20 25
NC030 CuNi23 0.30 300 <16 -34 0.5 23 Rest 350 20 25
NC035 CuNi30 0.35 300 <10 -37 1.0 30 Rest 400 20 25
NC040 CuNi34 0.40 350 0 -39 1.0 34 Rest 400 20 25
NC050 CuNi44 0.50 400 <-6 -43 1.0 34 Rest 420 20 25
Alloy DN-Trade Name Material-No. UNS-No. ASTM Specification DIN Specification
CuNi1 CuNi1
CuNi2 CuNi2 2.0802 C70200 ASTM B267 DIN 17471
CuNi6 CuNi6 2.0807 C70500 ASTM B267 DIN 17471
CuNi10 CuNi10 2.0811 C70700 ASTM B267 DIN 17471
CuNi10Fe1Mn CuNi10Fe1Mn (2.0872) / (CW352H) C70600 ASTM B151
CuNi15 CuNi15
CuNi23Mn CuNi23Mn 2.0881 C71100 ASTM B267 DIN 17471
CuNi30Mn CuNi30Mn 2.0890
CuNi30Mn1Fe CuNi30Mn1Fe (2.0882) / (CW354H) C71500 ASTM B151
CuNi44Mn1 Vernicon 2.0842     DIN 17471

294:Common Name:

Alloy294, Cuprothal294, Nico, MWS-294, Cupron, Copel, Alloy45, Cu-Ni102, Cu-Ni44, Cuprothal, Cupron, Copel, Neutrology, Advance, Konstantan

A30:Common Name:
Alloy 30, MWS-30, Cuprothal 5, Cu-Ni 23, Alloy 260, Cuprothal 30 HAI-30, Cu-Ni2, Alloy 230, Nickel Alloy 30

A90: Common Name:
Alloy 95, 90 Alloy, MWS-90, Cu-Ni 10, Cuprothal 15, Cu-Ni 10, Alloy 320 Alloy 90, Alloy 290, #95 Alloy, Cuprothal 90,HAI-90,Alloy 260,Nickel Alloy 90

A180: Common Name:
Alloy 180, 180 Alloy, MWS-180, Cuprothal 30, Midohm, Cu-Ni 23, Nickel Alloy 180
