Product Details
Place of Origin: Shanghai, China
Brand Name: TANKII
Certification: ISO9001: 2008
Model Number: CuNi 23
Payment & Shipping Terms
Minimum Order Quantity: 20kg
Price: Negotiation
Packaging Details: Spool, carton, plywod case with plastic film as clients required
Delivery Time: 15-28DAYS
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 300+TON+MONTH
Material: |
Constantan/ Manganin |
Wire Chemical: |
Cu Ni/ Cu Mn |
Type: |
Round Insulated Wire |
Insulation Material: |
Polyesterimide, Polyester |
Application: |
Electric Instrument, Electric Part Coil And So On |
Class: |
130,155,180,200,220 |
Material: |
Constantan/ Manganin |
Wire Chemical: |
Cu Ni/ Cu Mn |
Type: |
Round Insulated Wire |
Insulation Material: |
Polyesterimide, Polyester |
Application: |
Electric Instrument, Electric Part Coil And So On |
Class: |
130,155,180,200,220 |

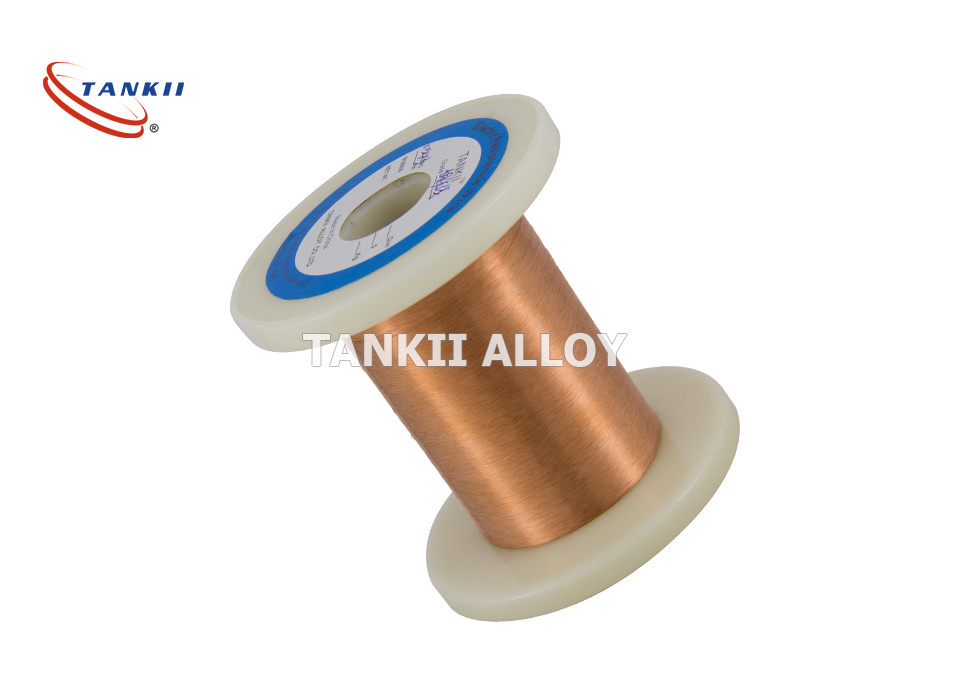

CuNi 23 (NC030) copper nickel Wire Low Resistance CuNi Alloy
Copper Nickel 23 or CuNi23Mn is a copper nickel alloy with the addition of Manganese to produce an alloy with a relatively low resistivity but high resistance to oxidation and chemical corrosion. Maximum working temperature is 500 °C. Applications include heating cords and mats
Material: CuNi1, CuNi2, CuNi6, CuNi8, CuNi10, CuNi14, CuNi19, CuNi23, CuNi30, CuNi34, CuNi44 in form of strip/heet/plate/falt wire/ribbon
As a big manufacturer and exporter in China on the line of electric resistance alloy, we can supply all kinds of electric resistance alloy wire and strips (resistance steel wire and strips),
General Description
Due to has high tensile strength and increased resistivity values, TANKII copper nickel alloy wires are the first choice for applications as resistance wires. With the different nickel amount in this product range, the characteristics of the wire can be chosen according to your requirements. Copper nickel alloy wires are available as bare wire, or enamelled wire with any insulation and self-bonding enamel. Furthermore, litz wire made of enamelled copper nickel alloy wire are available.
Features
1. Higher resistance than copper
2. High tensile strength
3. Good bending proof performance
Application
1. Heating applications
2. Resistance wire
3. Applications with high mechanical requirements
4. Others
Main grades and properties
| Type | Electrical resistivity (20degreeΩ mm²/m) |
temperature coefficient of resistance (10^6/degree) |
Dens ity g/mm² |
Max. temperature (°c) |
Melting point (°c) |
| CuNi1 | 0.03 | <1000 | 8.9 | / | 1085 |
| CuNi2 | 0.05 | <1200 | 8.9 | 200 |
1090 |
| CuNi6 | 0.10 | <600 | 8.9 | 220 | 1095 |
| CuNi8 | 0.12 | <570 | 8.9 | 250 | 1097 |
| CuNi10 | 0.15 | <500 | 8.9 | 250 | 1100 |
| CuNi14 | 0.20 | <380 | 8.9 | 300 | 1115 |
| CuNi19 | 0.25 | <250 | 8.9 | 300 | 1135 |
| CuNi23 | 0.30 | <160 | 8.9 | 300 | 1150 |
| CuNi30 | 0.35 | <100 | 8.9 | 350 | 1170 |
| CuNi34 | 0.40 | -0 | 8.9 | 350 | 1180 |
| CuNi40 | 0.48 | ±40 | 8.9 | 400 | 1280 |
| CuNi44 | 0.49 | <-6 | 8.9 | 400 | 1280 |
