Product Details
Place of Origin: Shanghai, China
Brand Name: TANKII
Certification: ISO9001: 2008
Model Number: CuNi 23
Payment & Shipping Terms
Minimum Order Quantity: 20kg
Price: Negotiation
Packaging Details: Spool, carton, plywod case with plastic film as clients required
Delivery Time: 15-28DAYS
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 300+TON+MONTH
Material: |
Constantan/ Manganin |
Wire Chemical: |
Cu Ni/ Cu Mn |
Type: |
Round Insulated Wire |
Insulation Material: |
Polyesterimide, Polyester |
Application: |
Electric Instrument, Electric Part Coil And So On |
Class: |
130,155,180,200,220 |
Material: |
Constantan/ Manganin |
Wire Chemical: |
Cu Ni/ Cu Mn |
Type: |
Round Insulated Wire |
Insulation Material: |
Polyesterimide, Polyester |
Application: |
Electric Instrument, Electric Part Coil And So On |
Class: |
130,155,180,200,220 |

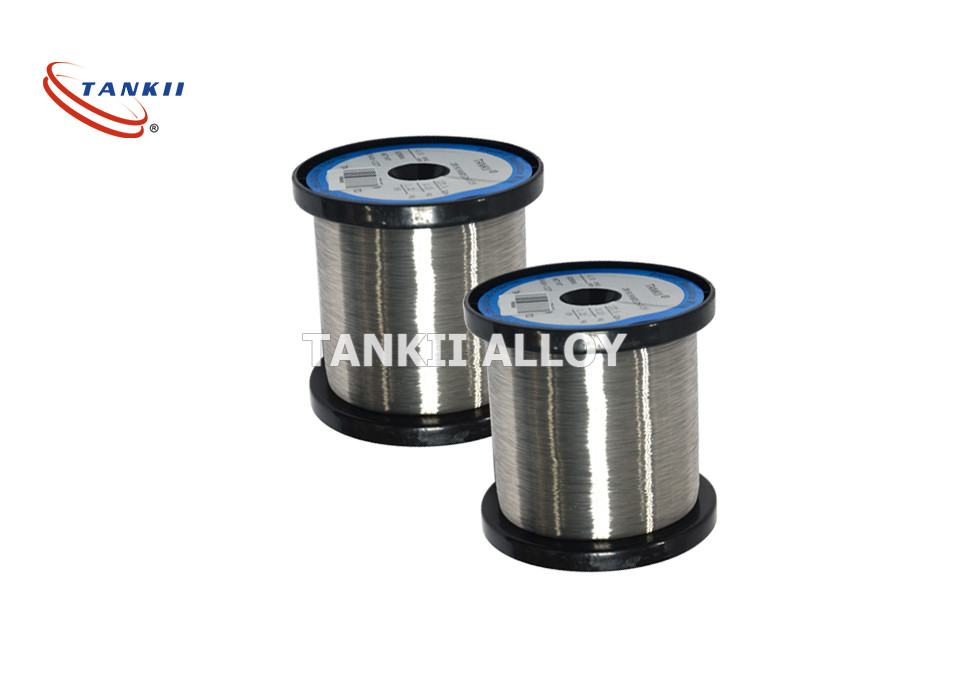

CuNi 23 /nickel alloy 30/Cuprothal 30 Electric Resistance Wire
Copper Nickel 23 or CuNi23Mn is a copper nickel alloy with the addition of Manganese to produce an alloy with a relatively low resistivity but high resistance to oxidation and chemical corrosion. Maximum working temperature is 500 °C. Applications include heating cords and mats
Size dimension range:
Wire: 0.1-10mm
Ribbons: 0.05*0.2-2.0*6.0mm
Strip: 0.05*5.0-5.0*250mm
Main grades and properties
| Type | Electrical resistivity (20degreeΩ mm²/m) |
temperature coefficient of resistance (10^6/degree) |
Dens ity g/mm² |
Max. temperature (°c) |
Melting point (°c) |
| CuNi1 | 0.03 | <1000 | 8.9 | / | 1085 |
| CuNi2 | 0.05 | <1200 | 8.9 | 200 |
1090 |
| CuNi6 | 0.10 | <600 | 8.9 | 220 | 1095 |
| CuNi8 | 0.12 | <570 | 8.9 | 250 | 1097 |
| CuNi10 | 0.15 | <500 | 8.9 | 250 | 1100 |
| CuNi14 | 0.20 | <380 | 8.9 | 300 | 1115 |
| CuNi19 | 0.25 | <250 | 8.9 | 300 | 1135 |
| CuNi23 | 0.30 | <160 | 8.9 | 300 | 1150 |
| CuNi30 | 0.35 | <100 | 8.9 | 350 | 1170 |
| CuNi34 | 0.40 | -0 | 8.9 | 350 | 1180 |
| CuNi40 | 0.48 | ±40 | 8.9 | 400 | 1280 |
| CuNi44 | 0.49 | <-6 | 8.9 | 400 | 1280 |
