Product Details:
|
| Material: | Silver Plated Copper Alloy Stranded Wire | Diameter: | 0.016mm Min. |
|---|---|---|---|
| Type: | 37/19/7 Core | Surface: | Bright |
| Origin: | Shanghai, China | Shape: | Bare Wire, Stranded Wire |
| HS Code: | 7115901090 | OEM: | Yes |
| High Light: | Silver Plated Copper Alloy Wire,Stranded Copper Alloy Wire,Bright 7 Core Copper Alloy Wire |
||
Silver Plated Copper Alloy Wire
Product standard: refer to JB / T 3135-2011, ASTM B289-99 or according to customer requirements
| Item | Diameter(mm) | |||||
| 0.016 | 0.02 | 0.025 | 0.03 | 0.04 | 0.05 | |
| Tolerance(mm) | ±0.001 | ±0.001 | ±0.002 | ±0.002 | ±0.002 | ±0.002 |
| Conductivity(%) | ≧70 | |||||
| Elongation(%) | ≧6 | ≧10 | ||||
| Tensile Strength(MPa) | / | |||||
| Coating Thickness(um) | ≧0.3 | |||||
| Appearance | No scratches, oil stains, exposed copper, oxidation, etc. | |||||
| Packing | 3 inch, 5 inch, etc. | |||||
| Remark | According to customers’ requirements | |||||
Soft Wire
Silver Plated Copper Alloy Wire-Hard Wire
| Item | Diameter(mm) | |||||
| 0.016 | 0.02 | 0.025 | 0.03 | 0.04 | 0.05 | |
| Tolerance(mm) | ±0.001 | ±0.001 | ±0.002 | ±0.002 | ±0.002 | ±0.002 |
| Conductivity(%) | ≧70 | |||||
| Elongation(%) | ≤4 | |||||
| Tensile Strength(MPa) | ≧700 | |||||
| Coating Thickness(um) | ≧0.2 | |||||
| Appearance | No scratches, oil stains, exposed copper, oxidation, etc. | |||||
| Packing | 3 inch, 5 inch, etc. | |||||
| Remark | According to customers’ requirements | |||||

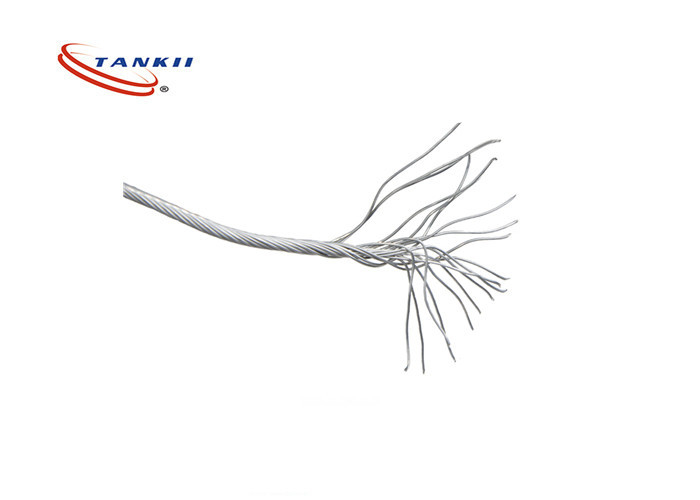

Silver Plated Copper Alloy Stranded Wire
| Item | Diameter(mm) | |||||
| 7/0.016 | 7/0.02 | 7/0.025 | 7/0.03 | 7/0.04 | 7/0.05 | |
| Tolerance(mm) | ±0.001 | ±0.001 | ±0.002 | ±0.002 | ±0.002 | ±0.002 |
| Conductivity(Ωmm2/m) | ≧70 | |||||
| Strand | 7 | |||||
| Direction of Twist | S(right) | |||||
| Elongation(%) | ≤4(Hard) | |||||
| ≧5(Soft) | ||||||
| Tensile Strength(MPa) | ≧700(Hard) | |||||
| /(Soft) | ||||||
| Coating Thickness(um) | ≧0.2 | |||||
| Appearance | No scratches, oil stains, exposed copper, oxidation, etc. | |||||
| Packing | Type 200 | |||||
| Remark | According to customers’ requirements | |||||
