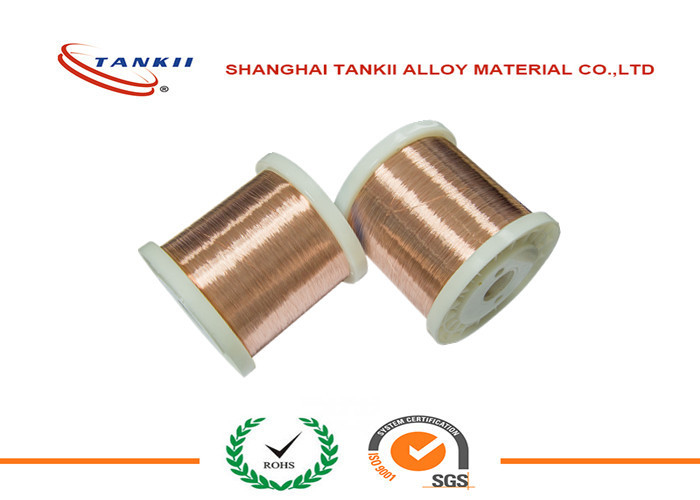

Household Appliances 0.03mm Silicon Bronze Alloy Wire Bright Surface

Household Appliances 0.03mm Silicon  Bronze Alloy Wire Bright Surface
Household Appliances 0.03mm Silicon  Bronze Alloy Wire Bright Surface Household Appliances 0.03mm Silicon  Bronze Alloy Wire Bright Surface Household Appliances 0.03mm Silicon  Bronze Alloy Wire Bright Surface

Large Image :  Household Appliances 0.03mm Silicon Bronze Alloy Wire Bright Surface

Product Details:
Place of Origin: Shanghai, China
Brand Name: TANKII
Certification: ISO9001 SGS
Model Number: TQSi1.5-0.5, TQSn0.7-0.02
Payment & Shipping Terms:
Minimum Order Quantity: 100 KG
Price: negotiable
Packaging Details: Spool + Carton + Wooned Case
Delivery Time: 7-20 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 Tons per month

Household Appliances 0.03mm Silicon Bronze Alloy Wire Bright Surface

Description
Material: Silicon Bronze Alloy Wire Diameter: 0.03-1.5mm
Resistivity: 0.167±0.03 μΩ·m Surface: Bright
Sample: Accepted Small Order HS Code: 7408290000
Origin: Shanghai, China Grade: TQSi1.5-0.5
High Light:

0.03mm Copper Nickel Alloy Wire

,

Bright Copper Nickel Alloy Wire

,

Household Appliances Copper Nickel Alloy

Special Silicon Bronze Alloy Wire



Special Silicon Bronze Alloy wire TQSi1.5-0.5, TQSn0.7-0.02 and BMn0.6-0.6. belong to our patented items, these alloy wires are of great welding property and lower resistivity which can be used in manufacturing fuse protector, electron component of lighting, electron, war industry, household appliances fields etc.



Chemical Composition

Name Grade Chemical Composition,% standard
Si Mn Ni Sn Fe Pb Zn Mg C S P Cu
Special Silicon Bronze TQSi1.5-0.5 1.35~1.85 0.1~0.6 ≤0.2 - ≤0.3 ≤0.03 ≤0.5 - - - - Bal. Q/SZD01-2012
Special Tin Bronze TQSn0.7-0.02 ≤0.1 - ≤0.2 0.4~1.0 ≤0.3 ≤0.03 - ≤0.1 ≤0.03 ≤0.01 0.015~0.035 Bal. Q/STZ01-2012
Manganese Cupronickel BMn0.6-0.6 ≤0.1 0.2~1.0 0.4~0.7 - ≤0.2 - - ≤0.01 ≤0.03 ≤0.01 ≤0.01 Bal. Q/SZD02-2012



dimension and tolerance

Dia./mm 0.03~0.10 >0.1~0.030 >0.30~0.60 >0.60~1.00 >1.00~3.00 >3.00~6.00
Tolerance(±) 0.003 0.004 0.007 0.010 0.015 0.020
0.004 0.005 0.009 0.015 0.020 0.030
0.005 0.006 0.010 0.020 0.030 0.040



Product performance

Grade State

Dia.

mm

T.S.

N/mm2(≥)

Elongation

%(≥)

Resistivity μΩ·m Standard
TQSi1.5-0.5 M 0.03~0.10 300 15 0.167±0.03 Q/SZD01-2012
>0.10~0.60 280 20
>0.60~1.00 260 25
>1.00~3.00 250 30
>3.00~6.00 240 30
TQSn0.7-0.02 M 0.03~0.10 200 15 0.032±0.005 Q/STZ01-2012
>0.10~1.00 200 20
>1.00~3.00 190 25
>3.00~6.00 190 30
BMn0.6-0.6 M 0.03~0.10 200 15 0.054±0.003 Q/SZD02-2012
>0.10~1.00 200 20
>1.00~3.00 190 25
>3.00~6.00 190 30



This kind of alloy is of lower resistivity, good processability,excellent welding property and good corrosion resistance, It can be used in producing heating components and current-limiting resistance of thermal overload relay, low-voltage circuit breaker and other low-voltage apparatus.
