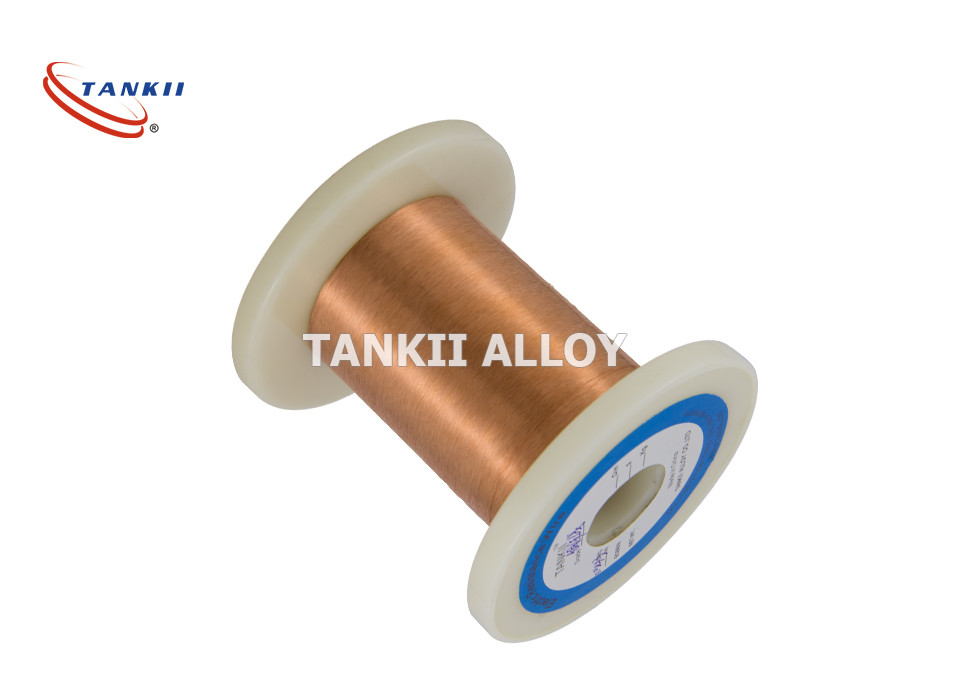

Bright Annealed 6j12 Manganin Wire For Cryogenic Systems

Bright Annealed 6j12 Manganin Wire For Cryogenic Systems
Bright Annealed 6j12 Manganin Wire For Cryogenic Systems

Large Image :  Bright Annealed 6j12 Manganin Wire For Cryogenic Systems

Product Details:
Place of Origin: CHINA
Brand Name: TANKII
Certification: ISO9001,SGS
Model Number: 6J8, 6J12, 6J13
Payment & Shipping Terms:
Minimum Order Quantity: 5KG
Packaging Details: on spool ,in wooden case
Payment Terms: Western Union, L/C, T/T

Bright Annealed 6j12 Manganin Wire For Cryogenic Systems

Description
State: Bright Annealed Type: Bare
Application: Heating Conductor Type: Solid
Conductor Material: Copper Insulation Material: None
Material: Steel
High Light:

6j12 Manganin Wire

,

Bright Annealed Manganin Wire

,

Cryogenic Systems Manganin Wire

Resistance/ Manganin Alloy Strip/Wire 6j12


Product Description

1. Description
Manganin is a trademarked name for an alloy of typically 86% copper, 12% manganese, and 2% nickel.
Manganin foil and wire is used in the manufacture of resistors, particularly ammeter shunts, because of its virtually zero temperature coefficient of resistance value and long term stability. Several Manganin resistors served as the legal standard for the ohm in the United States from 1901 to 1990. Manganin wire is also used as an electrical conductor in cryogenic systems, minimizing heat transfer between points which need electrical connections.
Manganin is also used in gauges for studies of high-pressure shock waves (such as those generated from the detonation of explosives) because it has low strain sensitivity but high hydrostatic pressure sensitivity.

Chemical Content(%)


Mn

Ni

Cu

Si

Fe

11~13

2~3

Bal

Microscale

<0.5


Mechanical Properties


Density

8.44 g/cm3

Operating temperature range

5~45ºC

Temperature Coefficient of Resistance

-3~+20 *10-6 /ºC

EMF VS Cu(0~100 ºC)

1μV/ºC

Resistivity (20ºC)

0.47 ±0.03 ohm*mm2/m

Elongation

Min15%







OTHER Chemical Composition And Main Properties Of Matrial

1. What's the minimum quantity customer can order?
If we have your size in stock, we can provide any quantity you want.
If we do not have, for spool wire, we can produce 1 spool, about 2-3kg. For coil wire, 25kg.

2. How can you pay for small sample amount?
We have Western union account, wire transfer for sample amount also ok.

3. Customer do not have express account. How will us arrange the delivery for sample order?
Just need to provide your address information, we will check the express cost, you can arrange the express cost together with sample value.

4. What's our payment terms?
We can accept LC T/T payment terms, it also depending on delivery and total amount. Let's talk more in details after getting your detailed requirements.

5. Do you provide free samples?
If you want several meters and we have stock of your size, we can provide, customer need to bear the International express cost.

6. What's our working time?
We will give you reply through email/phone Online contact tool within 24 hours. No matter working day or holidays. Pls contact with me whenever you need:
Mobile: +86-18017457857
