Ni95Al5 Thermal Spray Nickel Alloy Wire Bright Annealed

Ni95Al5 Thermal Spray Nickel Alloy Wire Bright Annealed
Ni95Al5 Thermal Spray Nickel Alloy Wire Bright Annealed Ni95Al5 Thermal Spray Nickel Alloy Wire Bright Annealed

Large Image :  Ni95Al5 Thermal Spray Nickel Alloy Wire Bright Annealed

Product Details:
Place of Origin: CHINA
Brand Name: TANKII
Certification: ISO9001
Model Number: NiAl95/5
Payment & Shipping Terms:
Minimum Order Quantity: 15KG
Price: Negotiation
Packaging Details: On Spool
Delivery Time: 5-10 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20, 000kg/month

Ni95Al5 Thermal Spray Nickel Alloy Wire Bright Annealed

Description
Package: 15kg/spool State: Bright Annealed
Diameter: 1.6mm,2.0mm
High Light:

Thermal Spray Nickel Alloy Wire

,

Ni95Al5 Nickel Alloy Wire

,

Bright Annealed Nickel Alloy Wire



 NiAl95/5

NiAl 95/5 Aolly 1.6mm 2.0mm Thermal Spray Wire Produces Dense , Well Bonding Coatings



High Purity Nickel Ni95Al5/TAFA 75B Thermal Spray Wire


Product Description of Ni95Al5 thermal spray wire:
TANKII Brand Ni95Al5 wire is a nickel aluminium alloy characterized by dense coating,high temperature oxidation resistance, heat shock resistance and scratch resistance.This wire has stable chemical composition, low oxgen and high bonding strength.
Typical applications for NiAl 95/5 (TAFA 75B)are widely used in arc and flange flame spray systems, Coatings to resist heat and prevent scaling of conventional low alloy steels,Bond coats for improving the adhesion of top coatings,Coatings on moulds in the glass industry.

Chemical Composition of Ni95Al5 thermal spray wire, %

Ni Al Total Others
93.0 4.0-5.5 1.7 Max

Mechanical Properties of Ni95Al5 thermal spray wire

Coating Hardness HRB 75
Bonding Strength 68.95 N/mm2
Deposit Rate 10 lbs/hr/100A
Condition Solid Wire

Normal Features of Ni95Al5 thermal spray wire:
(1)High mechanical properties
(2)High corrosion resistance
(3)High temperature coefficient of electrical resistance


Applications:
—For vacuum coating
—For making valves grid, inner components of vacuum valves
—Components insides the electron tubes
—For making lead, supporting wire
—For Electronic components
—For battery production
—Strong base of the filter
—manufacture of connections for heating elements as well as heating spirals in spark-plugs

Specification
Item
Inconel 625
Ni95Al5
45CT
Monel 400
Monel K500
HC-276
Cr20Ni80
C
≤0.05
≤0.02
0.01-0.1
≤0.04
≤0.25
≤0.02
≤0.08
Mn
≤0.4
≤0.2
≤0.2
2.5-3.5
≤1.5
≤1.0
≤0.06
Fe
≤1.0
N/A
≤0.5
≤1.0
≤1.0
4.0-7.0
N/A
P
≤0.01
≤0.01
≤0.01
≤0.01
≤0.01
≤0.01
≤0.02
S
≤0.01
≤0.01
≤0.01
≤0.01
≤0.01
≤0.01
≤0.01
Si
≤0.15
≤0.2
≤0.2
≤0.15
≤0.5
≤0.08
0.75-1.6
Cu
N/A
N/A
N/A
rest
27-33
N/A
N/A
Ni
rest
rest
rest
65-67
rest
rest
rest
Co
N/A
N/A
N/A
N/A
N/A
N/A
N/A
Al
≤0.4
4-5
N/A
≤0.5
2.3-3.15
N/A
N/A
Ti
≤0.4
0.4-1
0.3-1
2.0-3
0.35-0.85
N/A
N/A
Cr
21.5-23
≤0.2
42-46
N/A
N/A
14.5-16
20-23
Nb
3.5-4.15
N/A
N/A
N/A
N/A
N/A
≤1.0
Mo
8.5-10
N/A
N/A
N/A
N/A
15-17
N/A
V
N/A
N/A
N/A
N/A
N/A
≤0.35
N/A
W
N/A
N/A
N/A
N/A
N/A
3.0-4.5
N/A
Impurities
≤0.5
≤0.5
≤0.5
≤0.5
≤0.5
≤0.5
≤0.5








Ni95Al5 Thermal Spray Nickel Alloy Wire Bright Annealed 0
Ni95Al5 Thermal Spray Nickel Alloy Wire Bright Annealed 1
Ni95Al5 Thermal Spray Nickel Alloy Wire Bright Annealed 2
Ni95Al5 Thermal Spray Nickel Alloy Wire Bright Annealed 3


Packaging & Shipping

Packaging: Products are generally supplied in standard cardboard boxes, pallets, wooden boxes. Special packaging requirements can also be accommodated. (also depend on the customers' requirements)

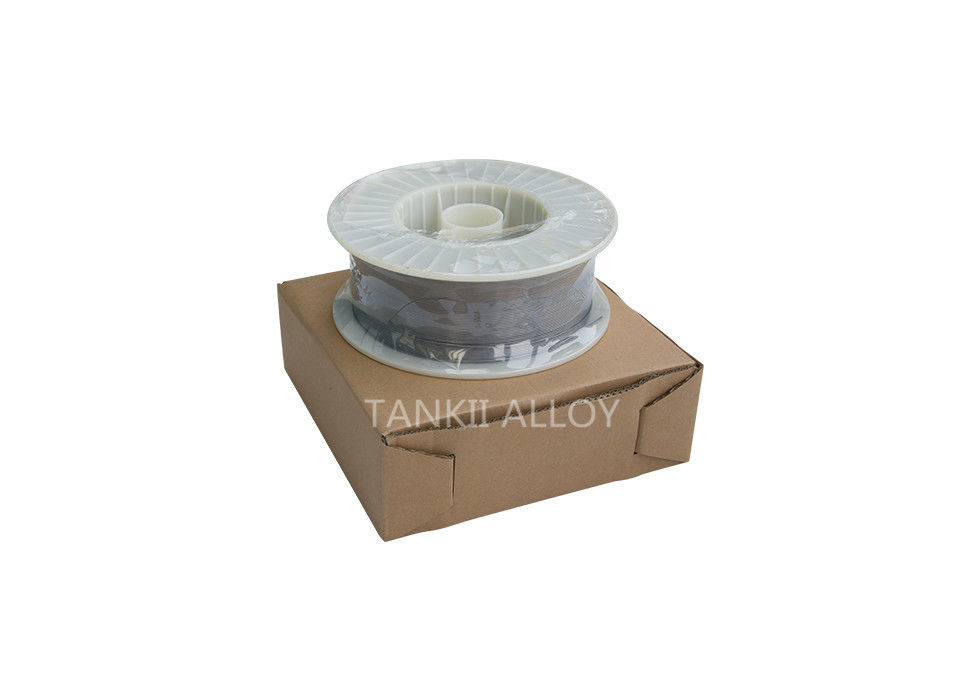

For the Thermal spray wires, we pack the wires on spools. Then put spools into cartons, Then put the cartons onto pallet.
Shipping: We cooperation with many logistics company, We can provide express, sea transportation, air transportation, and rail way transportation based on customers' requirement.





Our Services

1) We can provide a free sample for testing.
2) Customized lable, packing, OEM service
3) Mill test certificate will be provided after production, If it is necessary.
4) Good packing methods to keep goods no damage during delivery
5) We are cooperation with many famous forwarder, will try our best to choose the safety, convenience, quick, and cheap mode of transportation for our customers.
