Product Details
Place of Origin: Shanghai,China
Brand Name: TANKII
Certification: JIS,GB,DIN,BS,ASTM,AISI,CTI
Model Number: CuNi44
Payment & Shipping Terms
Minimum Order Quantity: 20pcs
Price: 15-30$
Packaging Details: on spool,paper box,wooden case/pallet,in coil
Delivery Time: 30days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 600pcs per moth
Port: |
Shanghai,China |
Brand: |
TANKII |
Type: |
Bar |
Application: |
Heating System |
Conductor Type: |
Solid |
Conductor Material: |
CuNi |
Insulation Material: |
Other |
Material: |
CuNi |
Shape: |
Wire |
Color: |
Bright |
Chemical Composition: |
Cu Ni Mn |
Size: |
As Request |
Surface: |
Bright Annealed |
Feature: |
High Resistance |
Elongation: |
25% |
Surface Treatmen: |
Oxidation |
MOQ: |
20pcs |
Port: |
Shanghai,China |
Brand: |
TANKII |
Type: |
Bar |
Application: |
Heating System |
Conductor Type: |
Solid |
Conductor Material: |
CuNi |
Insulation Material: |
Other |
Material: |
CuNi |
Shape: |
Wire |
Color: |
Bright |
Chemical Composition: |
Cu Ni Mn |
Size: |
As Request |
Surface: |
Bright Annealed |
Feature: |
High Resistance |
Elongation: |
25% |
Surface Treatmen: |
Oxidation |
MOQ: |
20pcs |
Product Details
Copper nickel alloy,which has low electric resistance,good heat-resistant and corrosion-resistance,easy to be processed and lead welded.It is used to make the key components in the thermal overload relay,low resistance thermal circuit breaker,and the electrical applicances.It is also an important material for electrical heating cable.It is similar as Kanthal's type cupronickel.
Principally destined for the manufacturing of low temperatures electric resistances so as heating cables,shunts,resistancces for automobile,they have a maxximum operating temperature of 752℉.
They do not therefore intervene in the field of resstances for industrial furnaces.
The most known,CuNi44(also called Constantan)presents the advantage of a very low temperature coefficient.
Their advantages are the following:
Very good resistances to corrosion.
Very good malleability
Very good solderability

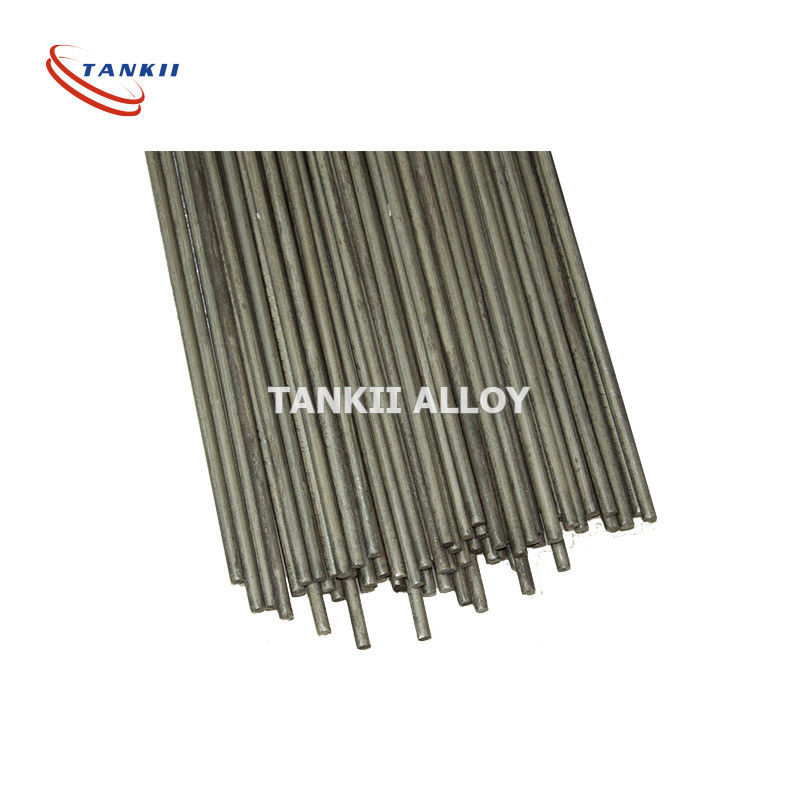

| Product name | Bright CuNi44,294,MWS-294,Cupron,CuNi102,Cu-Ni44 bar for industry |
| Grade | CuNi44 |
| Cuprothal | 49 |
| Isabellehutte | Isotan |
| Ni(%) | 44 |
| Cu(%) | Bal |
| Mn(%) | 1.0 |
| Resistivity μΩ/m at 20℃ | 0.49 |
| Resistivity Ω/cmf at 68℉ | 295 |
| Max Operating Temp℃ | 400 |
| Density g/cm³ | 8.9 |
| TCR(x10﹣6/℃) | ﹤-6 |
| Tensile Strength (Mpa) | ≧420 |
| Elongation | ≧25 |
| EMF vs Cu μV/℃ (0-100℃) | -43 |
| Melting point (℃) | 1280 |
| Magnetic Property | non |
| MOQ | 20PCS |
