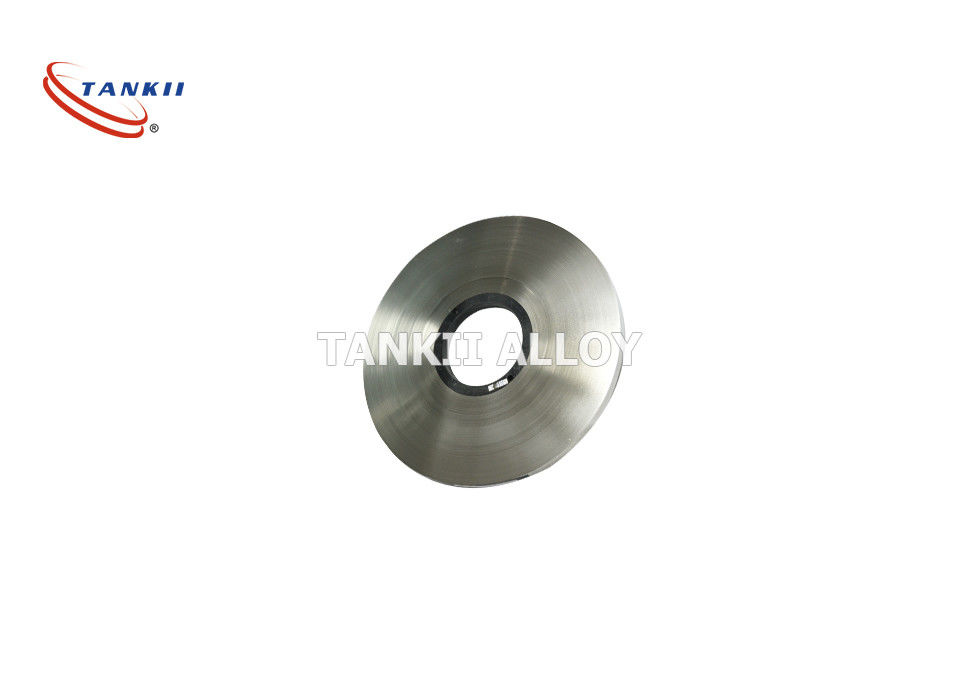

Bright Annealed NiCr80 Nickel Alloy Foil Heating Strip

Product Details

Place of Origin: Shanghai, China

Brand Name: TANKII

Certification: ISO9001: 2008

Model Number: Ni80Cr20

Payment & Shipping Terms

Minimum Order Quantity: 20kg

Price: Negotiation

Packaging Details: Spool, carton, plywod case with plastic film as clients required

Delivery Time: 15-28DAYS

Payment Terms: L/C, T/T, Western Union, Paypal

Supply Ability: 200+TON+MONTH

Get Best Price
Contact Now
Specifications
Highlight:

Nickel Alloy Foil Heating Strip

,

NiCr80 Foil Heating Strip

,

Bright Annealed Foil Heating Strip

Material:
Nickel Chrome
Working Temperature:
1200
Shape:
Wire/ Foil/ Ribbon/ Coil/ Strip
Surface:
Bright Annealed
Type:
Nickel Based Alloy
Resisitivity:
1.09
Tensile Strength:
750
Material:
Nickel Chrome
Working Temperature:
1200
Shape:
Wire/ Foil/ Ribbon/ Coil/ Strip
Surface:
Bright Annealed
Type:
Nickel Based Alloy
Resisitivity:
1.09
Tensile Strength:
750
Description
Bright Annealed NiCr80 Nickel Alloy Foil Heating Strip

HAI-NiCr80 Nickel Based Alloy Foil/ Strip Heating Strip for heating Applications



Grade: Ni80Cr20 / Resistohm 80 / Chromel A

Chemical composition: 80% nickel, 20% chromium

Resistivity: 1.09 Ohms mm2 / m

Condition: bright, annealed and soft

Surface: BA, 2B, polished

Dimensions: 1 ~ 470mm wide, 0.005mm ~ 7mm thick

We also produce NiCr 60/15, NiCr 38/17, NiCr 70/30, NiCr AA, NiCr 60/23, NiFe80, NiFe50, NiFe42, NiFe36, etc.

Producer: Shanghai Tankii Materials alloy S.L.

Shanghai Tankii Materials of alloy S.L .. is a professional producer of sheet, strip and sheet of nichrome.

Three advantages: bright surface, small tolerance, resistance on average.





Kanthal A1 large cold drawn wire products can be used for high temperature resistance furnaces. The practice has



demonstrated that: the product process is stable, the integrated performance is good. It has good oxidation at high temperatures.



longer endurance and life; Excellent winding properties in the processing at room temperature, ease of



molding process; little rebound resilience and so on. The processing performance is very good; operating



The temperature can reach 1400.



Main specifications and uses:



Conventional product specifications: 0.5 ~ 10mm



Uses: mainly used in powder metallurgy furnace, diffusion furnace, radiant tube heater and all kinds of



Furnace heater body temperature.

Diámetro (mm) Ω /m Área de sección por ohmios(cm2/Ω ) a las 20Ω. Peso por metro(g/m). Área de superficie por metro (cm2/m). Área de sección (mm2)
10.00 0.0185 17000 558 314 El 78,5
9.50 0.0205 14600 503 298 70.9
9.00 0.0228 12400 452 283 63.6
8.50 0.0256 10500 403 267 56.7
8.00 0.0288 8710 357 251 50.3
7.50 0.0328 7180 314 236 44.2
7.00 0.0377 5840 273 220 38.5
6.50 0.0437 4670 236 204 33.2
6.00 0.0513 3680 201 188 28.3
5.50. 0.061 2830 169 173 23.8
5.00 0.0738 2130 139 157 19.6
4.80 0.0801 1880 128 151 18.1
4.50 0.0912 1550 113 141 15.9
4.20 0,105 1260 98.4 132 13.9
4.00 0,115 1090 El 89,2 126 12.6
3.80 0.128 934 80.5 119 11.3
3.50 0,151 730 68.3 110 9.62
3.20 0,180 558 57.1 101 8.04
3.00 0.205 459 50.2 94.2 7.07
2.80
2.50 0,295 266 34.9 El 78,5 4.91
2.20 0.381 181 27 69.1 3.80
2.00 0.462 136 22.3 62.8 3.14
1.90 0.511 117 20.1 59.7 2.84
1.80 0.570 99.2 18.1 56.5 2.54
1.70 0.639 83.6 16.1 53.4 2.27
1.60 0.721 El 69,7 14.3 50.3 2.01
1.50 0,821 57.4 12.5 47.1 1.77
1.40 0.942 46.7 10.9 44.0 1.54
1.30 1.09 37.4 9.42 40.8 1.33
1.20 1.28 29.4 8.03 37.7 1.13
1.10 1.53 22.6 6.75 34.6 0.95
1.00 1.85 17 5.58 31.4 0,785

Bright Annealed NiCr80 Nickel Alloy Foil Heating Strip 0Bright Annealed NiCr80 Nickel Alloy Foil Heating Strip 1
