Product Details
Place of Origin: Shanghai, China,
Brand Name: TANKII
Certification: ISO SGS
Model Number: Nickel Plated Copper Wire
Payment & Shipping Terms
Minimum Order Quantity: 20KG
Price: negotiable
Packaging Details: wooden case / Carton
Delivery Time: 7-12 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 Tons per Month
Material: |
Tinned Flat Wire |
Diameter: |
0.05mm |
Surface: |
Bright |
Color: |
Silver Gray |
Coating Thickness(um): |
0.3-2.0 |
Name: |
Nickel Plated Flat Wire |
Material: |
Tinned Flat Wire |
Diameter: |
0.05mm |
Surface: |
Bright |
Color: |
Silver Gray |
Coating Thickness(um): |
0.3-2.0 |
Name: |
Nickel Plated Flat Wire |

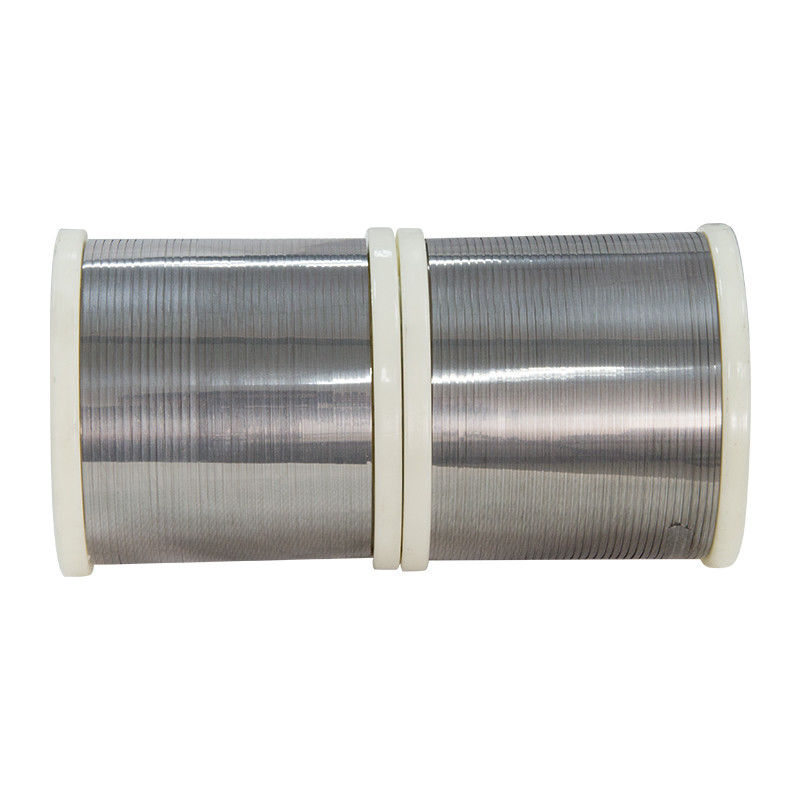

Nickel plated / Tinned Flat Ribbon / flat wire for Copper Cable Electrical Wire
Flat Wire
Tinned copper wire, nickel plated flat wire, tinned flat wire, etc.
Application:
Mainly used in special cables such as radio-frequency cables, phase-stable cables, electronics, medical, communications, aerospace, military and other fields.
Products comply with IEC national standards, GB national standards, JIS Japanese standards, CS Canadian standards, ASTM American standards.
Size:
Width(mm) | Tolerance(mm) | Thickness(mm) | Tolerance(mm) |
0.3-1.0 | ±0.015 | 0.03-0.04 | ±0.002 |
1.01-1.5 | ±0.02 | 0.041-0.05 | ±0.003 |
1.51-2.5 | ±0.03 | 0.051-0.08 | ±0.004 |
3.0-4.5 | ±0.05 | 0.081-1.00 | ±0.005 |
Specifications and performance parameters of silver-plated copper flat wire
Size | Coating Thickness(um) | Width Tolerance(±mm) | Thickness Tolerance(±mm) | Tensile Strength(Mpa) | Elongation(%) | Resistivity(Ωmm2/m) |
0.03*0.3 | According to customers´ requirements | 0.02 | 0.003 | ≥190 | ≥18 | ≤0.0178 |
0.035*0.3 | 0.02 | 0.003 | ≥190 | ≥18 | ≤0.0178 | |
0.038*0.3 | 0.02 | 0.003 | ≥190 | ≥18 | ≤0.0178 | |
0.03*0.4 | 0.02 | 0.003 | ≥190 | ≥18 | ≤0.0178 | |
0.035*0.4 | 0.02 | 0.003 | ≥190 | ≥18 | ≤0.0178 | |
0.038*0.4 | 0.02 | 0.003 | ≥190 | ≥18 | ≤0.0178 | |
0.038*0.5 | 0.02 | 0.003 | ≥190 | ≥20 | ≤0.0178 | |
0.04*0.6 | 0.02 | 0.003 | ≥190 | ≥20 | ≤0.0178 | |
0.05*0.6 | 0.02 | 0.003 | ≥190 | ≥20 | ≤0.0178 | |
0.05*0.8 | 0.02 | 0.003 | ≥190 | ≥20 | ≤0.0178 | |
0.03*1.0 | 0.03 | 0.003 | ≥190 | ≥20 | ≤0.0178 | |
0.05*1.0 | 0.03 | 0.003 | ≥190 | ≥20 | ≤0.0178 | |
0.03*1.2 | 0.03 | 0.003 | ≥190 | ≥20 | ≤0.0178 | |
0.05*1.2 | 0.03 | 0.003 | ≥190 | ≥20 | ≤0.0178 | |
0.04*1.5 | 0.04 | 0.003 | ≥190 | ≥20 | ≤0.0178 | |
0.05*1.5 | 0.04 | 0.003 | ≥190 | ≥20 | ≤0.0178 | |
0.05*2.0 | 0.04 | 0.003 | ≥190 | ≥20 | ≤0.0178 | |
0.05*2.3 | 0.04 | 0.005 | ≥190 | ≥20 | ≤0.0178 | |
0.05*2.5 | 0.04 | 0.005 | ≥190 | ≥20 | ≤0.0178 | |
0.08*3.0 | 0.05 | 0.005 | ≥190 | ≥20 | ≤0.0178 | |
0.08*3.3 | 0.05 | 0.005 | ≥190 | ≥20 | ≤0.0178 | |
0.08*4.5 | 0.05 | 0.005 | ≥190 | ≥20 | ≤0.0178 |
Packing:
1. Usually use PCK140 / PCK150 / PCK106 etc., and foam box vacuum packing.
2. Special packaging requirements accepted.
