Product Details:
|
| Material: | Cu-Zn | Color: | Yellow |
|---|---|---|---|
| Diameter: | 0.1-12.0mm | Standard: | GB / ASTM |
| Application: | Cutting Wire / Decoration | ||
| High Light: | copper and nickel alloy,alloy of copper and nickel,nickel copper alloy |
||

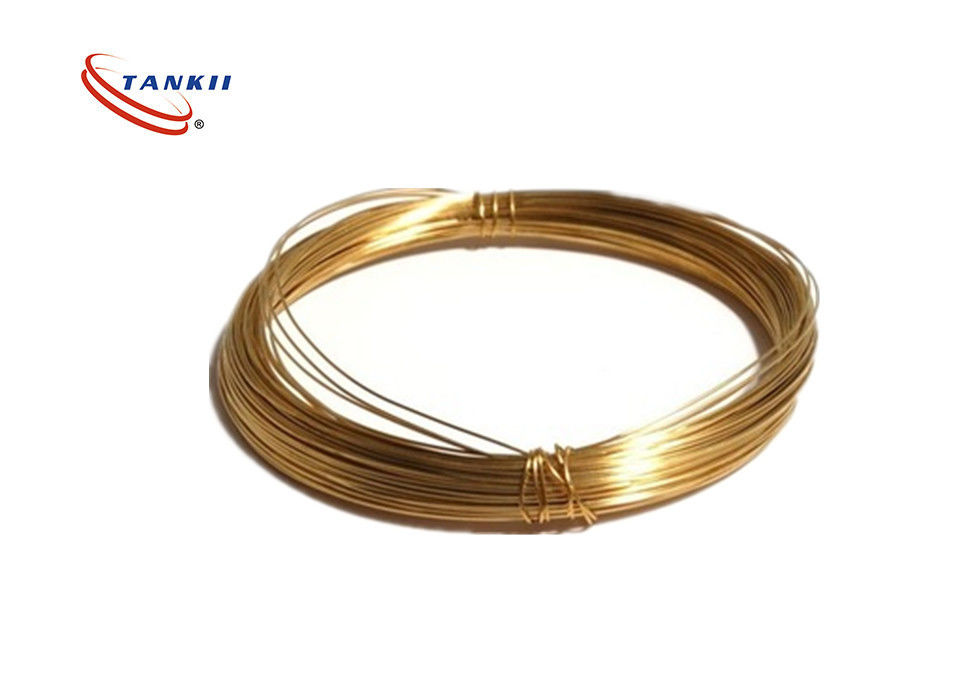

Copper Zinc Alloy CuZn35 CuZn37 CuZn33 0.3mm, 0.4mm, 0.5mm brass wire 5Kg/ spool
1.Details of EDM wire
1. Material : CuZn35,CuZn37,CuZn40
2. Wire diameter: 0.30mm, 0.25mm, 0.20mm,0.15mm,o.10mm
3. Weight/spool: 3 kg, 5 kg, 7 kg, 15 kg, 20kg
4. Tensile strength: 1000 N/mm2, 900 N/mm2, 500 N/mm2, 450 N/mm2, N/mm2
5. Packing: Vacuum packing, sealed with PVC cellephane, moisture proof, quakeproof, and corrosion resistance.
6. Application: used on low speed wire cutting machines like Agie-charmilles, Sodick, Mitsubishi, Makino
Zinc Coated EDM Brass Wire Features :
| Wire Diameter | Tolerance | Tensile Strength | Elongation | Chemical Composition | |
| Outer | Inner | ||||
| 0.10mm | +0/-0.001mm | >=900 N/mm2 | <=3% | 100% Zn | Cu 60%,Zn 40% |
| 0.15mm | +0/-0.001mm | >=900 N/mm2 | <=3% | 100% Zn | Cu 60%,Zn 40% |
| 0.20mm | +0/-0.002mm | >=900 N/mm2 | <=3% | 100% Zn | Cu 60%,Zn 40% |
| 0.25mm | +0/-0.002mm | >=900 N/mm2 | <=3% | 100% Zn | Cu 60%,Zn 40% |
| 0.30mm | +0/-0.002mm | >=900 N/mm2 | <=3% | 100% Zn | Cu 60%,Zn 40% |
Features of brass wire
Application of brass wire
OTHER BRASS WIRE TECHNICAL PARAMETERS
Excellent cold processing plasticity, elasticity and high strength.
| ASTM/CDA | DIN/EN | JIS | GB | SPECIFICATION | CHARACTERISTICS AND APPLICATION |
| C36000 | CuZn36Pb3 | C3602 | HPb62-3 | DIA1.0-120.0mm |
Characteristics:Excellent cutting,drilling performance,high strength,good electrical conductivity,strong corrosion resistance. Application:Applicable for automatic lathe,CNC lathe processing products,such as the hardware,electrical connectors,connectors. |
| - | - | C3601 | - | ||
| C37700 | CuZn39Pb2 | C3771 | HPb61-1 | ||
| C38000 | CuZn39Pb3 | C3604 | HPb60-2 | ||
| C35800 | CuZn40Pb3 | C3605 | HPb59-3 | ||
| C37000 | CuZn40Pb2 | C3710 | HPb59-1 | ||
| - | - | - | HPb58-3 |
| Item | Specification | Capability | Application | |||
| ASTM | DIN | JIS | GB | |||
| C28000 | CuZn40 | C2800 | H62 | 0.3-12.0mm | Good cold processing ability with good elastic and tensile strength. | Glasses accessory, rivet, battery, fastener, spring and electrode. |
| C27400 | CuZn37 | C2720 | H63 | |||
| C27000 | CuZn36 | C2700 | H65 | |||
| C26000 | CuZn30 | C2600 | H68 | |||
| C26000 | CuZn30 | C2600 | H70 | |||
| C23000 | CuZn15 | C2300 | H85 | |||
| C22000 | CuZn10 | C2200 | H90 | |||
| C21000 | CuZn4 | C2100 | H95 | |||
Note: we could provide special size,please contact us.
chemical composition
| Articles | Chemical composition(wt%) | Total Impurity(wt%) | ||||
| GB/QB | DIN/ASTM/JIS | Cu | Pb | Zn | Fe | |
| H62 | JIS C2800 | 59.0-63.0 | ≤0.1 | REM | ≤0.07 | - |
| H63 | JIS C2720 | 62.0-64.0 | ≤0.07 | REM | ≤0.07 | - |
| H65 | JIS C2700 | 63.0-67.0 | ≤0.05 | REM | ≤0.05 | - |
| H68 | C26800 | 64.0-68.5 | ≤0.09 | REM | ≤0.05 | - |
| H70 | JIS C2600 | 68.5-71.5 | ≤0.05 | REM | ≤0.05 | - |
| H80 | JIS C2400 | 78.5-81.5 | ≤0.05 | REM | ≤0.05 | - |
| H85 | JIS C2300 | 84.0-86.0 | ≤0.05 | REM | ≤0.05 | - |
| H90 | JIS C2200 | 89.0-91.0 | ≤0.05 | REM | ≤0.05 | |
