Product Details
Place of Origin: Shanghai China
Brand Name: TANKII
Certification: SGS
Model Number: Ni80Cr20
Payment & Shipping Terms
Minimum Order Quantity: 20 KGS
Price: negotiable
Packaging Details: Spool+ Carton+ Wooden Case / Wooden Pallet
Delivery Time: 7-12days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 TONS PER MONTH
Resistivity: |
1.09+/-0.03 |
Surface: |
Bright |
Size: |
0.5x3.0mm |
Shape: |

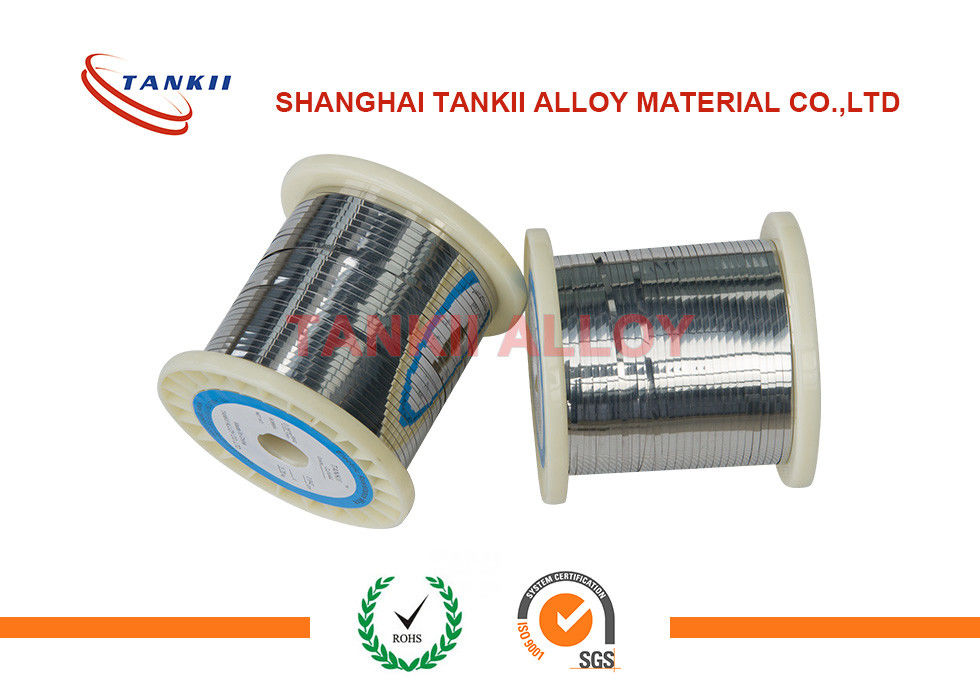

Ribbon, Tape, Wire |
Type: |
Bare, Ni80Cr20 |
Application: |
Heating,Heating System And Household Electrical Appliances,Resistance Application; |
Conductor Material: |
NiCr |
Conductor Type: |
Solid, Soft |
Resistivity: |
1.09+/-0.03 |
Surface: |
Bright |
Size: |
0.5x3.0mm |
Shape: |
Ribbon, Tape, Wire |
Type: |
Bare, Ni80Cr20 |
Application: |
Heating,Heating System And Household Electrical Appliances,Resistance Application; |
Conductor Material: |
NiCr |
Conductor Type: |
Solid, Soft |
| Max Continuous Service Temperature: | 1200ºC |
| Resisivity 20ºC: | 1.09 ohm mm2/m |
| Density: | 8.4 g/cm3 |
| Thermal Conductivity: | 60.3 KJ/m·h·ºC |
| Coefficient of Thermal Expansion: | 18 α×10-6/ºC |
| Melting Point: | 1400ºC |
| Elongation: | Min 20% |
| Micrographic Structure: | Austenite |
| Magnetic Property: | nonmagnetic |
Temperature Factors Of Electrical Resistivity
| 20ºC | 100ºC | 200ºC | 300ºC | 400ºC | 500ºC | 600ºC |
| 1 | 1.006 | 1.012 | 1.018 | 1.025 | 1.026 | 1.018 |
| 700ºC | 800ºC | 900ºC | 1000ºC | 1100ºC | 1200ºC | 1300ºC |
| 1.01 | 1.008 | 1.01 | 1.014 | 1.021 | 1.025 | - |
