Product Details:
|
| Grade: | Alloy 30 (Cuni2) | Wire Shape: | Round Wire |
|---|---|---|---|
| Wire Color: | Natural Color | Application: | Heating Element For Auto |
| Density: | 8.9 | Item: | Alloy30 Solid Wire 0.25mm On DIN125 Spool Used For Automobile Cables Heating Cables |
| High Light: | copper and nickel alloy,nickel copper alloy |
||
Alloy30 Solid Wire 0.25mm On DIN125 Spool Used For Automobile Cables Heating Cables
Product Description
Copper nickel alloy Wire with moderate resistivity and low temperature coefficent of resistance with a flat resistance/temperature curve over a wider range than the "manganins". it also shows better corrosion resistance, and welding performance.
The copper-based low resistance heating alloy is widely used in low-voltage circuit breaker, thermal overload relay, and other low-voltage electrical product. It is one of the key materials of the low-voltage electrical products. The materials produced by our company have the characteristics of good resistance consistency and superior stability. We can supply all kinds of round wire, flat and sheet materials.
Chemical Content, %
Ni |
Mn |
Fe |
Si |
Cu |
Other |
ROHS Directive |
|||
Cd |
Pb |
Hg |
Cr |
||||||
| 2 | - | - | - | Bal | - | ND | ND | ND | ND |
Mechanical Properties
Max Continuous Service Temp |
200ºC |
Resisivity at 20ºC |
0.05±10%ohm mm2/m |
Density |
8.9 g/cm3 |
Melting Point |
1090ºC |
Tensile Strength,N/mm2 Annealed,Soft |
≥220Mpa |
Elongation(anneal) |
25%(Min) |
Elongation(cold rolled) |
≥Min)2%(Min) |
EMF vs Cu, μV/ºC (0~100ºC) |
-12 |
Micrographic Structure |
austenite |
Magnetic Property |
Non |
| Type | Electrical resistivity (20degreeΩ mm²/m) |
Temperature coefficient of resistance (10^6/degree) |
Density g/mm² |
Max. temperature (°c) |
Melting point (°c) |
| CuNi1 | 0.03 | <1000 | 8.9 | / | 1085 |
| CuNi2 | 0.05 | <1200 | 8.9 | 200 | 1090 |
| CuNi6 | 0.10 | <600 | 8.9 | 220 | 1095 |
| CuNi8 | 0.12 | <570 | 8.9 | 250 | 1097 |
| CuNi10 | 0.15 | <500 | 8.9 | 250 | 1100 |
| CuNi14 | 0.20 | <380 | 8.9 | 300 | 1115 |
| CuNi19 | 0.25 | <250 | 8.9 | 300 | 1135 |
| CuNi23 | 0.30 | <160 | 8.9 | 300 | 1150 |
| CuNi30 | 0.35 | <100 | 8.9 | 350 | 1170 |
| CuNi34 | 0.40 | -0 | 8.9 | 350 | 1180 |
| CuNi40 | 0.48 | ±40 | 8.9 | 400 | 1280 |
| CuNi44 | 0.49 | <-6 | 8.9 | 400 | 1280 |
Our advantages:
a) We can provide high quality material, excellent design, precise manufacturing,complete specifications, considerate and integrity serivices.
b) We can provide all kinds of electric heating alloy material and elements, including customized products.
c) We can provide a complete solution for you.
d) OEM service can be provided.
e) Product selection
f) Process optimization
g) New product development

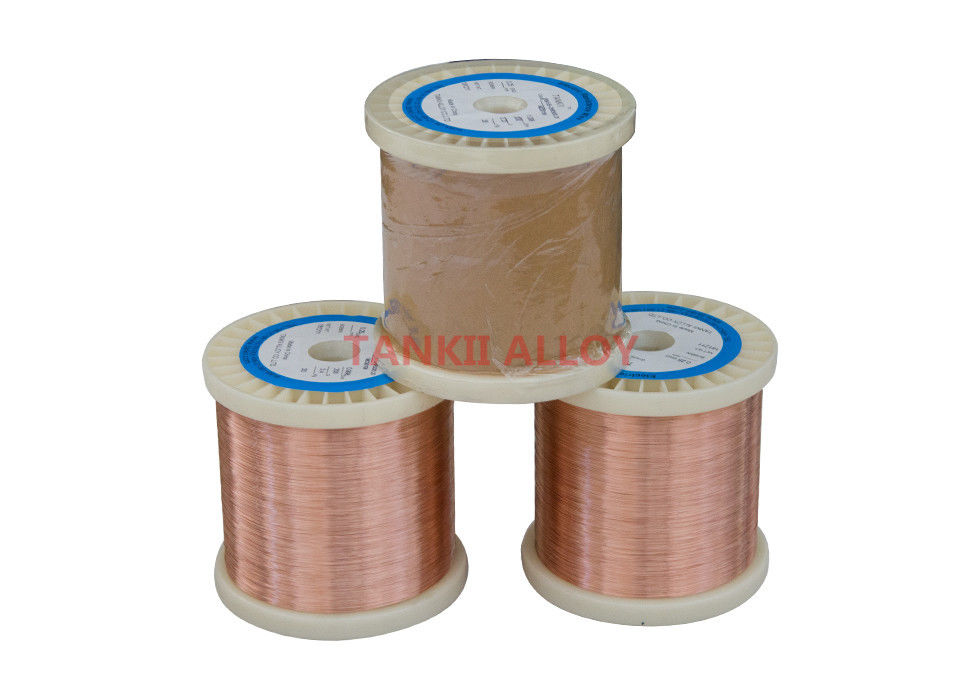

Product picture:
Package:
