Flat Copper Nickel Alloy Resistance Wire 0.2 * 0.7mm For Shunt Elements

Flat Copper Nickel Alloy Resistance Wire 0.2 * 0.7mm For Shunt Elements
Flat Copper Nickel Alloy Resistance Wire 0.2 * 0.7mm For Shunt Elements Flat Copper Nickel Alloy Resistance Wire 0.2 * 0.7mm For Shunt Elements Flat Copper Nickel Alloy Resistance Wire 0.2 * 0.7mm For Shunt Elements Flat Copper Nickel Alloy Resistance Wire 0.2 * 0.7mm For Shunt Elements

Large Image :  Flat Copper Nickel Alloy Resistance Wire 0.2 * 0.7mm For Shunt Elements

Product Details:
Place of Origin: China mainland
Brand Name: Tankii
Certification: ISO9001
Model Number: NC005
Payment & Shipping Terms:
Minimum Order Quantity: 10kg per size
Price: USD 22.5/kg
Packaging Details: Standard export package
Delivery Time: 3-5 days after getting the payment
Payment Terms: Western Union, L/C, D/A, D/P, T/T
Supply Ability: 1000T per year

Flat Copper Nickel Alloy Resistance Wire 0.2 * 0.7mm For Shunt Elements

Description
Grade: Cuni44 Wire Shape: Flat
Wire Color: Silvery Color Application: Heating Element
Density: 8.9 Item: Copper Nickel Alloy Wire CuNi44 Constantan Flat Wire 0.2*0.7mm Used For Shunt's Elements
Highlight:

copper and nickel alloy

,

nickel copper alloy



Copper Nickel Alloy Wire CuNi44 Constantan Flat Wire 0.2*0.7mm Used For Shunt's Elements



Product Description



Copper nickel alloy Wire with moderate resistivity and low temperature coefficent of resistance with a flat resistance/temperature curve over a wider range than the "manganins". it also shows better corrosion resistance, and welding performance. It always used for thermal overload relay, low-voltage relay etc.


Chemical Content, %


Ni

Mn

Fe

Si

Cu

Other

ROHS Directive

Cd

Pb

Hg

Cr
44 1.0 - - Bal - ND ND ND
ND



Mechanical Properties


Max Continuous Service Temp

400ºC

Resisivity at 20ºC

0.49±10%ohm mm2/m

Density

8.9 g/cm3

Thermal Conductivity

<-6

Melting Point

1280ºC

Tensile Strength,N/mm2 Annealed,Soft
≥420 Mpa

Elongation(anneal)

25%(Min)

Elongation(cold rolled)

≥Min)2%(Min)

EMF vs Cu, μV/ºC (0~100ºC)

-43

Micrographic Structure

austenite

Magnetic Property

Non





Our advantages:

a) We can provide high quality material, excellent design, precise manufacturing,complete specifications, considerate and integrity serivices.
b) We can provide all kinds of electric heating alloy material and elements, including customized products.
c) We can provide a complete solution for you.
d) OEM service can be provided.
e) Product selection
f) Process optimization
g) New product development

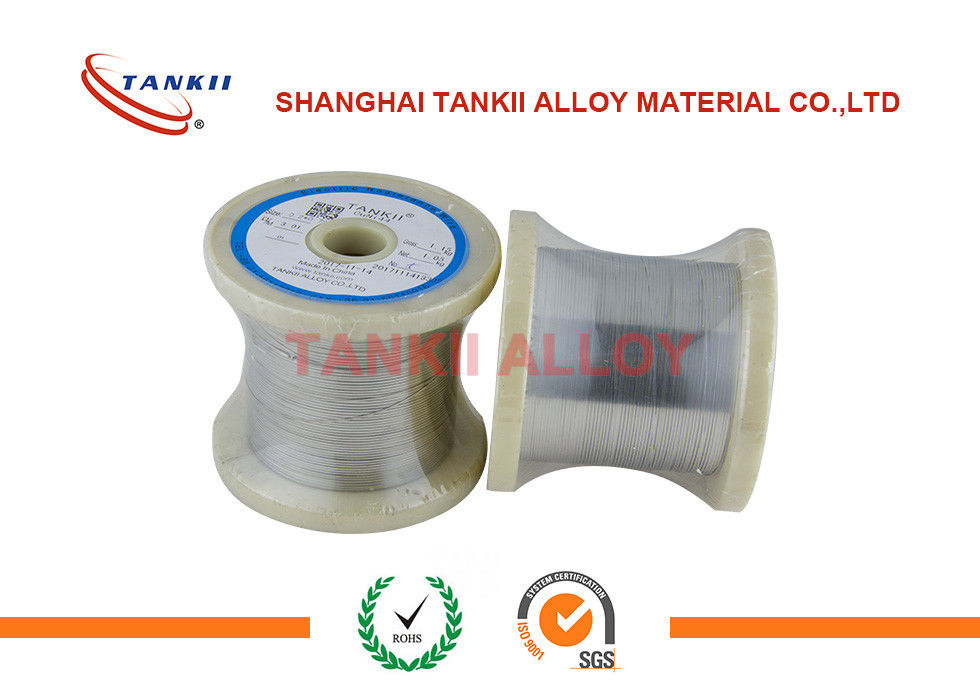

Product picture:

Flat Copper Nickel Alloy Resistance Wire 0.2 * 0.7mm For Shunt Elements 0

Company Information
Shanghai Tankii Alloy Material Co.,Ltd. is specialized in production of Ni-Cr Alloy, Cu-Ni Alloy, Fechral, thermocouple wire, pure nickel and other precision alloy materials in the form of wire, strip, rod, bar and plate.
We've already got ISO9001 quality system certification and ISO14001 environmental protection system.
We own a complete set of advanced production flow of refining, cold reduction, drawing and heat treating etc. We also proudly have independent R&D capacity.


Based on the principle of "first quality, sincere service", our managing ideology is pursuing technology innovation and creating the top brand in the alloy field. We persist in Quality - the foundation of the survival. It is our forever ideology to serve you with full heart and soul. We committed to provide customers all over the world with high-quality, competitive products and perfect service.



Our products, such us nichrome wire, nichrome strip, fecral wire, fecral strip, thermocouple wire, nickel wire, nickel strip have been exported to Europe, USA, India, Southest Asia, South America,etc.
We are willing to establish strong and long-time partnership with our customers



Your inquiry is a gift for us, your reply is a trust to us, your trust will bring us to provide you the best services in the business. Welcome to call me or email to me for more information on copper nickel alloy wires.
