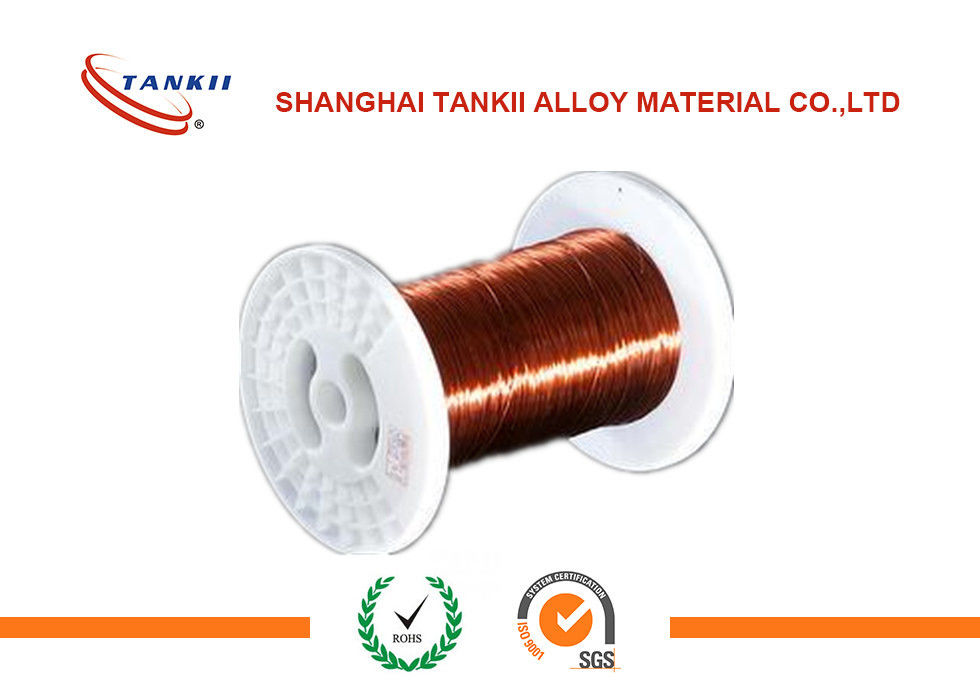

Round Copper Based Nicr Alloy 180 Class Insulated Enameled Copper Wire

Round Copper Based Nicr Alloy 180 Class Insulated Enameled Copper Wire
Round Copper Based Nicr Alloy 180 Class Insulated Enameled Copper Wire Round Copper Based Nicr Alloy 180 Class Insulated Enameled Copper Wire Round Copper Based Nicr Alloy 180 Class Insulated Enameled Copper Wire Round Copper Based Nicr Alloy 180 Class Insulated Enameled Copper Wire Round Copper Based Nicr Alloy 180 Class Insulated Enameled Copper Wire Round Copper Based Nicr Alloy 180 Class Insulated Enameled Copper Wire

Large Image :  Round Copper Based Nicr Alloy 180 Class Insulated Enameled Copper Wire

Product Details:
Place of Origin: Shanghai, China
Brand Name: TANKII
Certification: ISO9001:2008
Model Number: 6J40
Payment & Shipping Terms:
Minimum Order Quantity: 50kg
Price: To negotiate
Packaging Details: Spool, Carton, Plywood case as clients’ requirements
Delivery Time: 7-12 days
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 200+TON+MONTH

Round Copper Based Nicr Alloy 180 Class Insulated Enameled Copper Wire

Description
Material: Constantan/ Manganin Wire Chemical Composition: Cu Ni/ Cu Mn
Type: Round Insulated Wire Insulation Material: Polyesterimide, Polyester
Application: Electric Instrument, Electric Part Coil And So On Class: 130,155,180,200,220
High Light:

nickel copper alloy

,

copper and nickel alloy

Round Copper Based Nicr Alloy 180 Class Insulated Enameled Copper Wire



1.Material General Description



1)

Manganin is an alloy of typically 84% copper, 12% manganese, and 4% nickel.

Manganin wire and foil are used in the manufacture of resistors, particularl ammeter shunt, because of its virtually zero temperature coefficient of resistance and long term stability. Several Manganin resistors served as the legal standard for the ohm in the United States from 1901 to 1990. Manganin wire is also used as an electrical conductor in cryogenic systems, minimizing heat transfer between points which need electrical connections.

Manganin is also used in gauges for studies of high-pressure shock waves (such as those generated from the detonation of explosives) because it has low strain sensitivity but high hydrostatic pressure sensitivity.



2)

Constantan is a copper-nickel alloy also known as Eureka, Advance, and Ferry. It usually consists of 55% copper and 45% nickel. Its main feature is its resistivity, which is constant over a wide range of temperatures. Other alloys with similarly low temperature coefficients are known, such as manganin (Cu86Mn12Ni2).



For the measurement of very large strains, 5% (50 000 microstrian) or above, annealed constantan (P alloy) is the grid material normally selected. Constantan in this form is very ductile; and, in gauge lengths of 0.125 inches (3.2 mm) and longer, can be strained to >20%. It should be borne in mind, however, that under high cyclic strains the P alloy will exhibit some permanent resistivity change with each cycle, and cause a corresponding zero shift in the strain gauge. Because of this characteristic, and the tendency for premature grid failure with repeated straining, P alloy is not ordinarily recommended for cyclic strain applications. P alloy is available with S-T-C numbers of 08 and 40 for use on metals and plastics, respectively.



2. Enamelled Wire Introduction and applications



Although described as "enameled", enameled wire is not, in fact, coated with either a layer of enamel paint nor with vitreous enamel made of fused glass powder. Modern magnet wire typically uses one to four layers (in the case of quad-film type wire) of polymer film insulation, often of two different compositions, to provide a tough, continuous insulating layer. Magnet wire insulating films use (in order of increasing temperature range) polyvinyl formal (Formar), polyurethane, polyimide, polyamide, polyster, polyester-polyimide, polyamide-polyimide (or amide-imide), and polyimide. Polyimide insulated magnet wire is capable of operation at up to 250 °C. The insulation of thicker square or rectangular magnet wire is often augmented by wrapping it with a high-temperature polyimide or fiberglass tape, and completed windings are often vacuum impregnated with an insulating varnish to improve insulation strength and long-term reliability of the winding.

Self-supporting coils are wound with wire coated with at least two layers, the outermost being a thermoplastic that bonds the turns together when heated.

Other types of insulation such as fiberglass yarn with varnish, aramid paper, kraft paper, mica, and polyester film are also widely used across the world for various applications like transformers and reactors. In the audio sector, a wire of silver construction, and various other insulators, such as cotton (sometimes permeated with some kind of coagulating agent/thickener, such as beeswax) and polytetrafluoroethylene (PTFE) can be found. Older insulation materials included cotton, paper, or silk, but these are only useful for low-temperature applications (up to 105°C).

For ease of manufacturing, some low-temperature-grade magnet wire has insulation that can be removed by the heat of soldering. This means that electrical connections at the ends can be made without stripping off the insulation first.





3.Chemical Composition and Main Property of Cu-Ni Low Resistance Alloy


PropertiesGrade

CuNi1

CuNi2

CuNi6

CuNi8

CuMn3

CuNi10

Main Chemical Composition

Ni

1

2

6

8

_

10

Mn

_

_

_

_

3

_

Cu

Bal

Bal

Bal

Bal

Bal

Bal

Max Continuous Service Temperature(oC)

200

200

200

250

200

250

Resisivity at 20oC (Ωmm2/m)

0.03

0.05

0.10

0.12

0.12

0.15

Density(g/cm3)

8.9

8.9

8.9

8.9

8.8

8.9

Thermal Conductivity(α×10-6/oC)

<100

<120

<60

<57

<38

<50

Tensile Strength(Mpa)

≥210

≥220

≥250

≥270

≥290

≥290

EMF vs Cu(μV/oC)(0~100oC)

-8

-12

-12

-22

_

-25

Approximate Melting Point( oC)

1085

1090

1095

1097

1050

1100

Micrographic Structure

austenite

austenite

austenite

austenite

austenite

austenite

Magnetic Property

non

non

non

non

non

non



PropertiesGrade

CuNi14

CuNi19

CuNi23

CuNi30

CuNi34

CuNi44

Main Chemical Composition

Ni

14

19

23

30

34

44

Mn

0.3

0.5

0.5

1.0

1.0

1.0

Cu

Bal

Bal

Bal

Bal

Bal

Bal

Max Continuous Service Temperature(oC)

300

300

300

350

350

400

Resisivity at 20oC (Ωmm2/m)

0.20

0.25

0.30

0.35

0.40

0.49

Density(g/cm3)

8.9

8.9

8.9

8.9

8.9

8.9

Thermal Conductivity(α×10-6/oC)

<30

<25

<16

<10

<0

<-6

Tensile Strength(Mpa)

≥310

≥340

≥350

≥400

≥400

≥420

EMF vs Cu(μV/oC)(0~100oC)

-28

-32

-34

-37

-39

-43

Approximate Melting Point( oC)

1115

1135

1150

1170

1180

1280

Micrographic Structure

austenite

austenite

austenite

austenite

austenite

austenite

Magnetic Property

non

non

non

non

non

non






Round Copper Based Nicr Alloy 180 Class Insulated Enameled Copper Wire 0Round Copper Based Nicr Alloy 180 Class Insulated Enameled Copper Wire 1
