|Standard:||ASTM B 165||Alloy Or Not:||Is Alloy|
|Application:||Oil Industry, Elastic Parts||Ni:||Min 63%|
|Type:||Nickel Pipe/ Tube||Advantages:||Fine After-sale Service, Competitive Price|
copper and nickel alloy,
alloy of copper and nickel

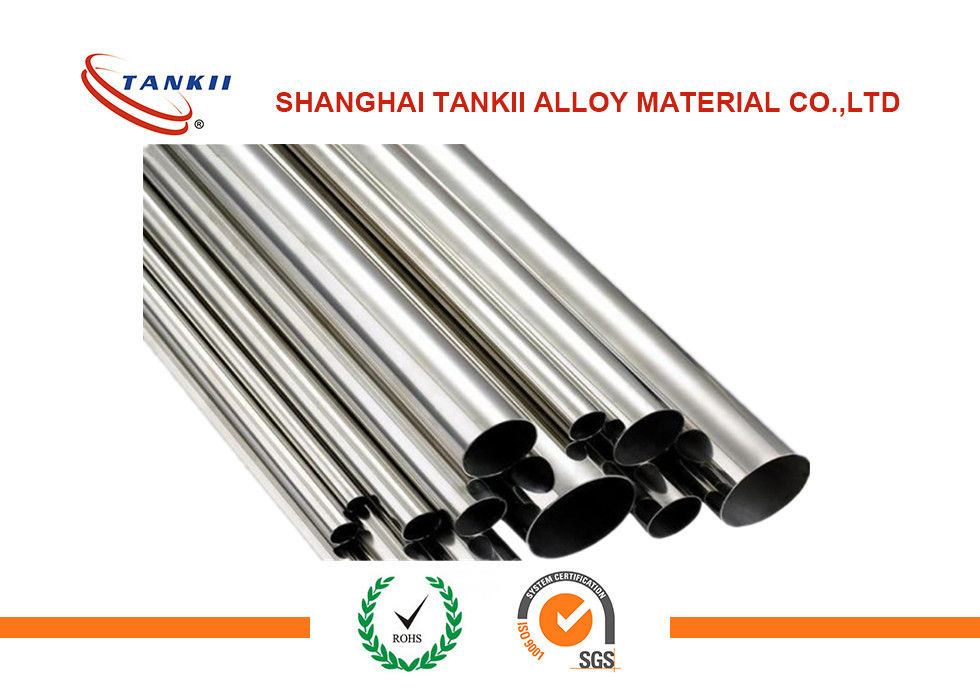

Hollow Seamless Copper Nickel Tube Ni68cu28fe 8.44 G/cm3 For Elastic Parts
Monel K-500 Chemical composition:
Monel K-500 Physical properties:
Monel is a group of nickel alloys, primarily composed of nickel (up to 67%) and copper with small amounts of iron, manganese, carbon, and silicon. Stronger than pure nickel, Monel alloys are resistant to corrosion by many agents, including rapidly flowing seawater. They can be fabricated readily by hot- and cold-working, machining, and welding.
Monel alloy 400 is a binary alloy of the same proportions of nickel and copper as is found naturally in the nickel ore from the Sudbury (Ontario) mines and is therefore considered a puritan alloy. Monel was named after company president Ambrose Monell, and patented in 1906. One L was dropped, because family names were not allowed as trademarks at that time.
It is a very expensive alloy, with cost ranging from 5 to 10 times the cost of copper and nickel, hence its use is limited to those applications where it cannot be replaced with cheaper alternatives. Compared to carbon steel, piping in Monel is more than 3 times as expensive.
Monel alloy 400 has a specific gravity of 8.80, a melting range of 1300-1350 °C, an electrical conductivity of approximately 34% IACS, and (in the annealed state) a hardness of 65 Rockwell B. Monel alloy 400 is notable for its toughness, which is maintained over a considerable range of temperatures.
Monel alloy 400 has excellent mechanical properties at subzero temperatures. Strength and hardness increase with only slight impairment of ductility or impact resistance. The alloy does not undergo a ductile-to-brittle transition even when cooled to the temperature of liquid hydrogen. This is in marked contrast to many ferrous materials which are brittle at low temperatures despite their increased strength.
Monel K-500 minimum mechanical properties in the room temperature:
|Inconel Series||Inconel 718 / UNS N07718 / DIN W. Nr. 2.4668
Inconel 601 / UNS N06601 / DIN W. Nr. 2.4851
Inconel 625 / UNS N06625 / DIN W. Nr. 2.4856
Inconel 725 / UNS N07725
Inconel X-750 / UNS N07750 / DIN W. Nr. 2.4669
Inconel 600 / UNS N06600 / DIN W. Nr. 2.4816
|Hastelloy Series||Hastelloy B / UNS N10001
Hastelloy B-2 / UNS N10665 / DIN W. Nr. 2.4617
Hastelloy C-4 / UNS N06455 / DIN W. Nr. 2.4610
Hastelloy C-22 / UNS N06022 / DIN W. Nr. 2.4602
Hastelloy C-276 / UNS N10276 / DIN W. Nr. 2.4819
Hastelloy X / UNS N06002 / DIN W. Nr. 2.4665
|Incoloy Series||Incoloy 925/UNS N09925-Oil
Incoloy 825 / UNS N08825 / NS142 / W.Nr 2.4858
Incoloy 800HT / UNS N08811 / W.Nr 1.4954
Incoloy 800H/UNS N08810/W.Nr 1.4876
Incoloy A-286 / UNS S66286 / W. Nr. 1.4980
|Monel Series||Monel 400 / UNS N04400 / W.Nr 2.4360|
|Nickel Series||Nickel 200 / UNS N02200 / W.Nr 2.40
Nickel 201 / GB/T N02201 / W.Nr 2.4060
