Product Details
Place of Origin: Shanghai, China
Brand Name: TANKII
Certification: ISO9001:2008
Model Number: 6J12
Payment & Shipping Terms
Minimum Order Quantity: 20kg
Price: To negotiate
Packaging Details: Spool, Coil, Carton, Wooden Case Customized Size as to client´s requirements
Delivery Time: 7-12 days
Payment Terms: L/C, T/T, Western Union, , MoneyGram
Supply Ability: 2000+TON+YEAR
Color: |
Golden, Metallic |
Model: |
6J8, 6J12, 6J13 |
Material: |
Manganese, Copper, Nickel |
Surface: |
Smooth, Soft |
Feature: |
Good Welding Ability |
Color: |
Golden, Metallic |
Model: |
6J8, 6J12, 6J13 |
Material: |
Manganese, Copper, Nickel |
Surface: |
Smooth, Soft |
Feature: |
Good Welding Ability |

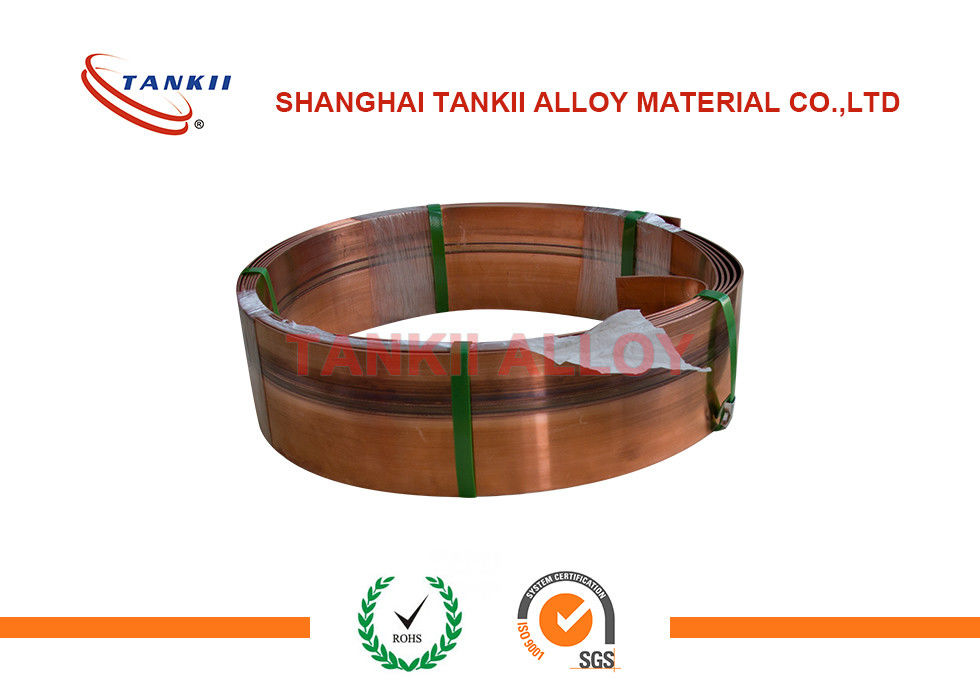

Manganin(6J8 6J12 6J13) Copper Nickel Manganese Alloy Tape/Strip For Ultra High Pressure Sensitive Material
General Description
Manganin foil and wire is used in the manufacture of resistors, particularly ammeter shunts, because of its virtually zero temperature coeffcient of resistance value and long term stability. Several Manganin resistors served as the legal standard for the ohm in the United States from 1901 to 1990. Manganin wire is also used as an electrical conductor in cryogenic systems, minimizing heat transfer between points which need electrical connections.
Manganin is also used in gauges for studies of high-pressure shock waves (such as those generated from the detonation of explosives) because it has low strain sensitivity but high hydrostaticpressure sensitivity.
Chemical Content, %
| Ni | Mn | Fe | Si | Cu | Other | ROHS Directive | |||
| Cd | Pb | Hg | Cr | ||||||
| 2~5 | 11~13 | <0.5 | micro | Bal | - | ND | ND | ND | ND |
Mechanical Properties
| Max Continuous Service Temp | 0-100ºC |
| Resisivity at 20ºC | 0.44±0.04ohm mm2/m |
| Density | 8.4 g/cm3 |
| Thermal Conductivity | 40 KJ/m·h·ºC |
| Temp Coefficient of Resistance at 20 ºC | 0~40α×10-6/ºC |
| Melting Point | 1450ºC |
| Tensile Strength(Hard) | 585 Mpa(min) |
| Tensile Strength,N/mm2 Annealed,Soft | 390-535 |
| Elongation | 6~15% |
| EMF vs Cu, μV/ºC (0~100ºC) | 2(max) |
| Micrographic Structure | austenite |
| Magnetic Property | non |
| Hardness | 200-260HB |
| Micrographic Structure | Ferrite |
| Magnetic Property | Magnetic |
Resistance Alloy- Shunt Manganin Sizes / Temper Capabilities
