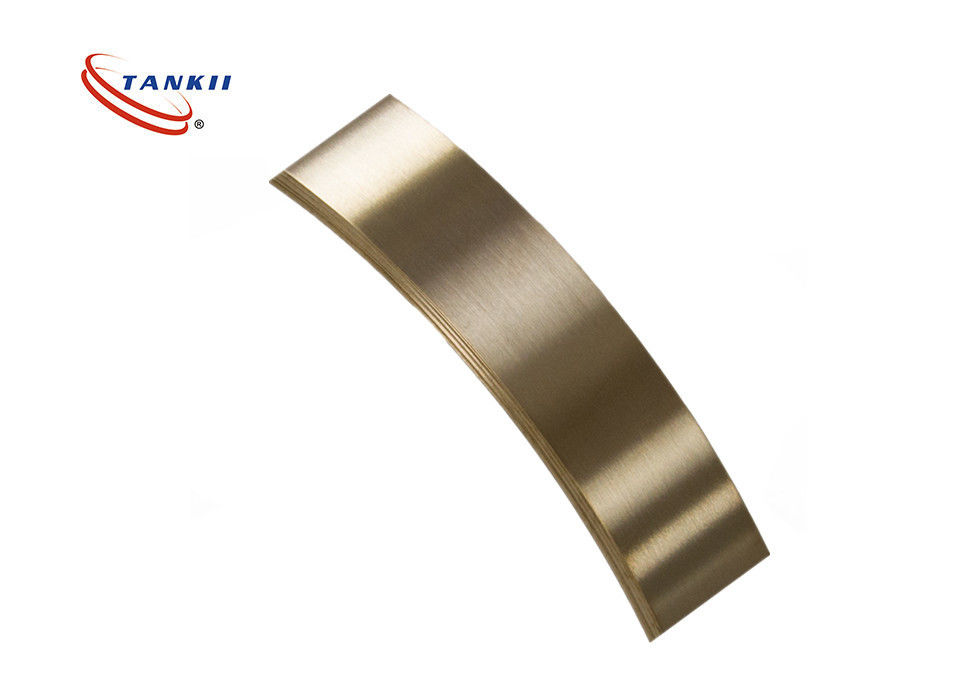

Qbe2 C17200 Harden Beryllium Copper Strip Polished 0.05mm

Name: Qbe2 C17200 Harden Beryllium Copper Strip Polished 0.05mm
Brand: TANKII
SKU: CuBe2
Rating: 4.6 (143 reviews)

Product Details

Place of Origin: Shanghai, China,

Brand Name: TANKII

Certification: ISO SGS

Model Number: CuBe2

Payment & Shipping Terms

Minimum Order Quantity: 300KGS

Price: negotiable

Packaging Details: wooden case

Delivery Time: 7-15 work days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 300 Tons per Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                            Harden Beryllium Copper Strip, Polished Beryllium Copper Strip, Beryllium Copper Strip 0.05mm


Production Name:	Beryllium Coper Tape	Material:	Copper Beryllium Alloy
Thickness:	0.05mm	Width:	1-250mm
Surface:	Bright / Polished

Production Name:	Beryllium Coper Tape
Material:	Copper Beryllium Alloy
Thickness:	0.05mm
Width:	1-250mm
Surface:	Bright / Polished

Description

Qbe2 C17200 Harden Beryllium Copper Strip Polished 0.05mm

Xhm (TM06) / Xhms (TM08) Harden Copper Alloy Strip beryllium Coper Tape C17200 Qbe2 Strip

Shanghai Tankii Alloy Material Co.,Ltd is the leader company in the manufacture of beryllium-copper alloys. We actively participate in all environmental studies made on all substances used in our products. Our priority is to comply with all legal regulations in force to ensure the continued existence of our products to our clients.

Beryllium-Copper-alloys are mainly based on copper with a beryllium addition. High strength beryllium copper alloys contain 0.4-2% of beryllium with about 0.3 to 2.7% of other alloying elements such as nickel, cobalt, iron or Lead. The high mechanical strength is achieved by precipitation hardening or age hardening.
It is the best high-elastic material in copper alloy. It has high strength, elasticity, hardness, fatigue strength, low elastic hysteresis, corrosion resistance, wear resistance, cold resistance, high conductivity, no magnetism, no impact, no sparks, etc. A range of excellent physical, chemical and mechanical properties.

Chemistry Content
Name	Main Chemistry Content				Impuity(≤wt%)
Name	Be	Co	Ni	Cu	Fe	Al	Si	Pb	Total
QBe2	1.8~2.1	/	0.2~0.25	Bal	0.15	0.15	0.15	0.005	0.5
QBe1.9	1.85~2.1	Ti:0.1~0.25	0.2~0.4	Bal	0.15	0.15	0.15	0.005	0.5
CuBe1.7(C17000)	1.6~1.79	Ni+Co≥0.2		Cu+stipulated Element≥99.5	Ni+Co+Fe≤0.6				0.5
CuBe2(C17200)	1.8~2.0	Ni+Co≥0.2		Cu+stipulated Element≥99.5	Ni+Co+Fe≤0.6				0.5
C17300	1.8~2.0	Ni+Co≥0.2		Cu+stipulated Element≥99.5	Ni+Co+Fe≤0.6			0.2~0.6	0.5
C17500	0.4~0.7	2.4~2.7	/	Bal	Cu+Be+Ni+Co≥99.5
C17510	0.2~0.6	0.3	1.4~2.2	Bal	0.1	0.02	0.2	/	0.5
CuBe0.3	0.2~0.4	Ni+Co:1.8~2.5		Cu+Be+Ni+Co≥99.0

Physical Properties C17200

Density (g/cm3)	8.36
Density before age hardening (g/cm3	8.25
Elastic Modulus (kg/mm2 (103))	13.40
Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C)	17 x 10-6
Thermal Conductivity (cal/(cm-s-°C))	0.25
Melting Range (°C)	870-980

Mechanical property:(before heat treatment) C17200

status	Tensile strength (Kg/mm3)	Hardness (HV)	Conductivity ( IACS%)	Elongation (%)
H	70-85	210-240	22	2-8
1/2H	60-71	160-210	22	5-25
0	42-55	90-160	22	35-70

Mechanical property:(after heat treatment) C17200

status	Tensile strength (Kg/mm3)	Hardness (HV)	Conductivity (IACS%)	Elongation (%)
H	130-151	380-420	22	1-5
1/2H	126-147	370-410	22	2-7
0	112-135	350-339	22	3-11

Features
1. High thermal conductivity
2. High corrosion resistance, especially suitable for polyoxyethylene (PVC) products mold.
3. High hardness, wear resistance and toughness, as inserts used with mould steel and aluminium can make the mold play a highly efficient, prolong the service life.
4. Polishing performance is good, can achieve high mirror surface precision and complicated shape design.
5. Good tackiness resistance, easy to welding with other metal, easy to machining, there is no need additional heat treatment.

Qbe2 C17200 Harden Beryllium Copper Strip Polished 0.05mm 0
