Product Details
Place of Origin: CHINA
Brand Name: Tankii
Certification: ISO 9001
Model Number: FeCrAl
Payment & Shipping Terms
Minimum Order Quantity: 30KG
Packaging Details: spool，coil
Delivery Time: 5-30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000kg/month
Application: |
Heating |
Shape: |
Strip,ribbon |
Material: |
Iron-Chromium-Aluminium Alloy |
Chemical Composition: |
Fe Cr Al |
Dimensions: |
0.05-12mm |
Surface: |
Acid White/oxidized |
Application: |
Heating |
Shape: |
Strip,ribbon |
Material: |
Iron-Chromium-Aluminium Alloy |
Chemical Composition: |
Fe Cr Al |
Dimensions: |
0.05-12mm |
Surface: |
Acid White/oxidized |

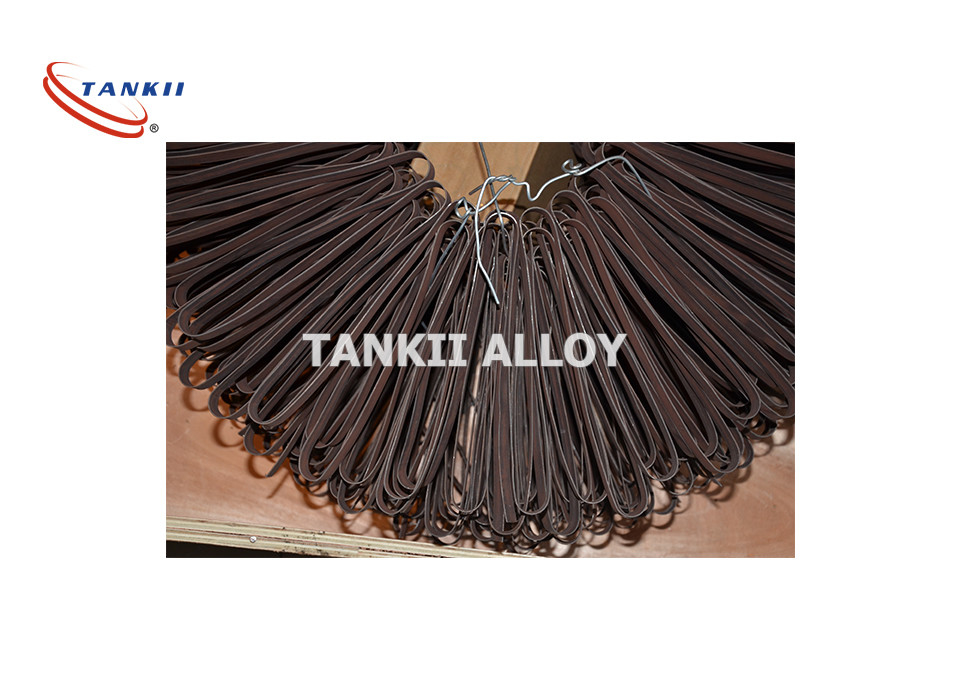

China Resistance Wire 0cr21al6 Heating Electric Resistance for Industrial Oven
0Cr21Al6
(Common Name:0Cr21Al6)
0Cr21Al6is a iron-chromium-aluminium alloy (FeCrAl alloy) characterized by high resistance, low coefficient of electric resistance, high operating temperature, good corrosion resistance under high temperature.It is suitable for use at temperatures up to 1250°C.
Typical applications for 0Cr21Al6 are used in electric ceramic cooktop,industrial furnace,heaters and catalytic purifier.
Normal composition%
| C | P | S | Mn | Si | Cr | Ni | Al | Fe | Other |
| Max | |||||||||
| 0.06 | 0.025 | 0.025 | 0.70 | Max 1.0 | 19.0~22.0 | Max 0.60 | 5.0~7.0 | Bal. | - |
Typical Mechanical properties(1.0mm)
| Yield strength | Tensile Strength | Elongation |
| Mpa | Mpa | % |
| 520 | 720 | 20 |
|
Grade
|
Highest temperature
|
Resistivity
|
Melting point
|
Tensile strength
|
Elongation
|
|
0Cr21Al4
|
1100ºC
|
1.23±0.06μΩ.m
|
1500ºC
|
750
|
≥12
|
|
0Cr25Al5
|
1250ºC
|
1.42±0.07μΩ.m
|
1500ºC
|
750
|
≥12
|
|
0Cr23Al5
|
1300ºC
|
1.35±0.06μΩ.m
|
1500ºC
|
750
|
≥12
|
|
0Cr21Al6NbCo
|
1350ºC
|
1.43±0.07μΩ.m
|
1510ºC
|
750
|
≥12
|
|
0Cr27Al7Mo2
|
1400ºC
|
1.53±0.07μΩ.m
|
1520ºC
|
750
|
≥10
|
