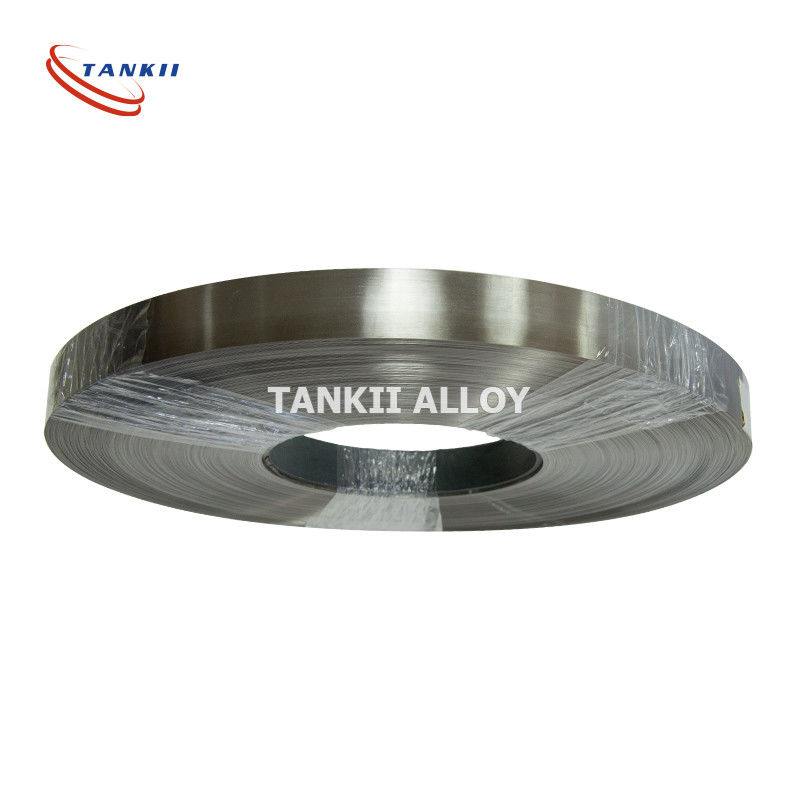

1mm*10mm 0Cr25Al5 Flat Ribbon Round Burr With Bright Surface Strip

1mm*10mm 0Cr25Al5 Flat Ribbon Round Burr With Bright Surface Strip

    • 1mm*10mm 0Cr25Al5 Flat Ribbon Round Burr With Bright Surface Strip
    • 1mm*10mm 0Cr25Al5 Flat Ribbon Round Burr With Bright Surface Strip
    • 1mm*10mm 0Cr25Al5 Flat Ribbon Round Burr With Bright Surface Strip
    • 1mm*10mm 0Cr25Al5 Flat Ribbon Round Burr With Bright Surface Strip
  • 1mm*10mm 0Cr25Al5 Flat Ribbon Round Burr With Bright Surface Strip

    Product Details:

    Place of Origin: Shanghai, China
    Brand Name: TANKII
    Certification: ISO9001:2008
    Model Number: 0Cr25Al5

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: To negotiate
    Packaging Details: Spool, Coil, Carton, Wooden case with Plastic Film According to Client's Requirements
    Delivery Time: 7-15 days
    Payment Terms: L/C, T/T, Western Union, MoneyGram
    Supply Ability: 20+TON+MONTH
    Contact Now
    Detailed Product Description
    Alloy: High Resistance Alloy Use: Electric Furnace,Glass Top Hobs....
    Feature: Anti-Oxidation Rare Earths Quantity: As Required

    Stock Price 1mm*10mm 0Cr25Al5 Flat Ribbon Round Burr Bright Surface Strip



    1. Introduction

    Nichrome, a non-magnetic 80/20 alloy of nickel and chromium, is the most common resistance wire for heating purposes because it has a high resistivity and resistance to oxidation at high temperatures. When used as a heating element, resistance wire is usually wound into coils. One difficulty in using nichrome wire is that common tin-based electrical solder will not bond with it, so the connections to the electrical power must be made using other methods such as crimp connectors or screw terminals.

    FeCrAl alloys used in a wide range of high-temperature applications.

    Constantan [Cu55Ni45] has a low temperature coefficient of resistivity and as a copper alloy, is easily soldered. Other constant-resistance alloys include manganin [Cu86Mn12Ni2], Cupron [Cu53Ni44Mn3]and Evanohm.

    The Evanohm family of nickel-chrome alloys [Ni72Cr20Mn4Al3Si1], [Ni73Cr20Cu2Al2Mn1Si], have high resistance, low temperature coefficient of resistance, low electromotive force (Galvani potential) when in contact with copper, high tensile strength, and also are very stable with regards to heat treatment.



    2.Specification:

    Grade Main chemical composition Hightest temperature ℃

    Rrsistivity

    µΩ.m

    Melting point ℃ Tensile strength N/mm²

    Elogation

    %

    Working life

    h/℃

    Magnetic

    properties

      Cr Al Ni Fe
    OCr21Al4 17-21 3-4 - - 1100 1.23±0.06 1500 750 ≥12 ≥80/1250 magnetic
    OCr25Al5 23-26 4.5-6.5 - - 1250 1.42±0.07 1500 750 ≥12 ≥80/1300 magnetic
    OCr21Al6Nb 21-23 5-7 - - 1350 1.43±0.07 1510 750 ≥12 ≥50/1350 magnetic
    OCr27Al7Mo2 22-24 5-7 - - 1400 1.53±0.07 1520 750 ≥10 ≥50/1350 magnetic
    KSC 26.8-27.8 6-7 - - 1350 1.44±0.05 1510 750 ≥16 ≥60/1350 magnetic
    Cr20Ni80 20-23 - Rest ≤1.0 1200 1.09±0.05 1400 750 ≥20 ≥80/1200 Non-magnetic
    Cr30Ni70 30 - Rest ≤1.0 1250 1.18±0.05 1380 750 ≥20 ≥50/1250 Non-magnetic
    Cr15Ni60 15-18 - 55 Rest 1150 1.12±0.05 1390 750 ≥20 ≥80/1150 Non-magnetic
    Cr20Ni35 18-21 - 35 Rest 1100 1.04±0.05 1390 750 ≥20 ≥80/1100 Weak magnetic
    Cr20Ni30 20 - 32 Rest 1100 1.04±0.05 1390 750 ≥20 ≥80/1100 Weak magnetic



    3.

    Material Resistivity
    (ohm-cmil/ft)
    Resistivity
    (10−6 ohm-cm)
    Aluminum 15.94 2.650
    Brass 42.1 7.0
    Carbon (amorphous) 23 3.95
    Constantan 272.97 45.38
    Copper 10.09 1.678
    Iron 57.81 9.61
    Manganin 290 48.21
    Molybdenum 32.12 5.34
    Nichrome 675 112.2
    Nichrome V 650 108.1
    Nickel 41.69 6.93
    Platinum 63.16 10.5
    Stainless steel (304) 541 90
    Steel (0.5% carbon) 100 16.62
    Zinc 35.49 5.90

    1mm*10mm 0Cr25Al5 Flat Ribbon Round Burr With Bright Surface Strip1mm*10mm 0Cr25Al5 Flat Ribbon Round Burr With Bright Surface Strip
