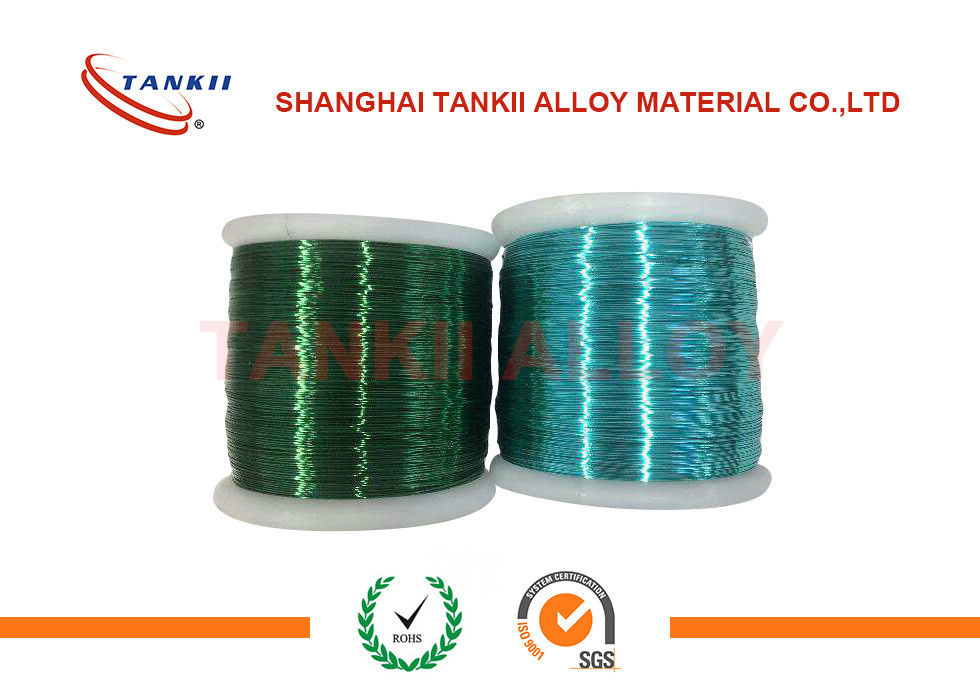

Colored Enamelled Copper Wire , Super Enamel Coated Copper Wire For Precision Resistor

Colored Enamelled Copper Wire , Super Enamel Coated Copper Wire For Precision Resistor

    • Colored Enamelled Copper Wire , Super Enamel Coated Copper Wire For Precision Resistor
    • Colored Enamelled Copper Wire , Super Enamel Coated Copper Wire For Precision Resistor
    • Colored Enamelled Copper Wire , Super Enamel Coated Copper Wire For Precision Resistor
  • Colored Enamelled Copper Wire , Super Enamel Coated Copper Wire For Precision Resistor

    Product Details:

    Place of Origin: China
    Brand Name: TANKII
    Certification: ROHS,SGS
    Model Number: Enamelled Resistance Wire

    Payment & Shipping Terms:

    Minimum Order Quantity: 5kg
    Packaging Details: in Spool
    Payment Terms: L/C, T/T, Western Union
    Contact Now
    Detailed Product Description
    Temper Class:: 133℃,150℃180℃,200℃,220℃ Bare Conductor: Copper
    Insulation: Enamelled Colour Of Enamelled: Black,Red,Nature,Blue,Green,yellow
    Shape: Round Wire,Flat Wire Application:: Precision Resistor



    Colored Enamelled Copper Wire , Super Enamel Coated Copper Wire For Precision Resistor



    Product Description

        These enameled resistance wires have been broadly used for standard resistors, automobile
    parts, winding resistors, etc. using the insulation processing best suited for these applications, taking full advantage of the distinctive features of enamel coating.

    Furthermore, we will carry out enamel coating insulation of precious metal wire such as silver and platinum wire upon order. Please make use of this production-on-order.



    Constantan Definition

     Resistance alloy with moderate resistivity and low temperature coefficent of resistance with a flat resistance/temperature

     curve over a wider range than the "manganins". Constantan also shows better corrosion resistance than the man ganins. Uses tend to be restricted to ac circuits. Constantan is also the negative element of the type J thermocouple

    with Iron being the positive; type J thermocouples are used in heat treating applications. Also, it is the negative element

    of the type T thermocouple with OFHC Copper the positive; type T thermocouples are used at cryogenic temperatures.



    Constantan material:

    Constantan, CuNi1, CuNi2, CuNi6, CuNi8, CuNi10, CuNi14, CuNi19, CuNi23, CuNi30, CuNi34, CuNi40 (6J40), CuNi44.



    Constantan wire Characteristics

    Constantan has a number of special characteristics due to which it is known as the most versatile alloy that is available.  Some of its important characteristics are:

    • High specific heat resistance
    • Negligible temperature Coefficient
    • Easily ductile
    • Resistant to atmospheric corrosion
    • Can be easily soldered and molded



    Constantan wire Resistance





    The resistance of constantan wire is 15.94 ohm-cmil/ft.   Since  the resistance  of constantan does  not change with temperature ,  it is  used f or the  purpose  of making  thermocouples  and other  such appliances  where the resistance  should remain constant  for  a  particular  range  of  temperature. It is an electric resistance wire.



    Type of Insulation

    Insulation-enamelled Name

    Thermal Level℃

    (working time 2000h)

    Code Name

    GB Code

    ANSI. TYPE

    Polyurethane enamelled wire

    130

    UEW

    QA

    MW75C

    Polyester enamelled wire

    155

    PEW

    QZ

    MW5C

    Polyester-imide enamelled wire

    180

    EIW

    QZY

    MW30C

    Polyester-imide and polyamide-imide double coated enameled wire

    200

    EIWH

    (DFWF)

    QZY/XY

    MW35C

    Polyamide-imide enamelled wire

    220

    AIW

    QXY

    MW81C

    Colored Enamelled Copper Wire , Super Enamel Coated Copper Wire For Precision Resistor

    Type Of Bare Alloy Wire

    The alloy we can do enamelled are Copper-nickel alloy wire,Constantan wire,Manganin wire. Kama Wire,NiCr Alloy wire,FeCrAl Alloy wire etc alloy wire

    Size:

    Round wire:0.018mm~3.0mm

    Color of enamel insulation:Red,Green,Yellow,Black,Blue,Nature etc.

    Ribbon Size:0.01mm*0.2mm~1.2mm*24mm

    Moq:5kg each size
