Round Polyester Enamelled Wire Type K Thermocouple Wire

Product Details

Place of Origin: Shanghai

Brand Name: Tankii

Certification: DIN, ASTM, JIS

Model Number: type K

Payment & Shipping Terms

Minimum Order Quantity: 20kg

Packaging Details: spool ,coil, or as clients' requirement

Delivery Time: 25days

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Supply Ability: 1000T/month

Get Best Price
Contact Now
Specifications
Highlight:

Thermocouple Polyester Enamelled Wire

,

IEC Type K Thermocouple Wire

,

0.031mm Enamelled Wire

Application:
Industry
Conductor Material:
Copper
Type:
Insulated
Color:
As Requirement
Thermal Class:
130
Standard:
IEC
Shape:
Round
Rated Voltage:
300/500v
Condition:
Soft
MOQ:
20KG
Application:
Industry
Conductor Material:
Copper
Type:
Insulated
Color:
As Requirement
Thermal Class:
130
Standard:
IEC
Shape:
Round
Rated Voltage:
300/500v
Condition:
Soft
MOQ:
20KG
Description

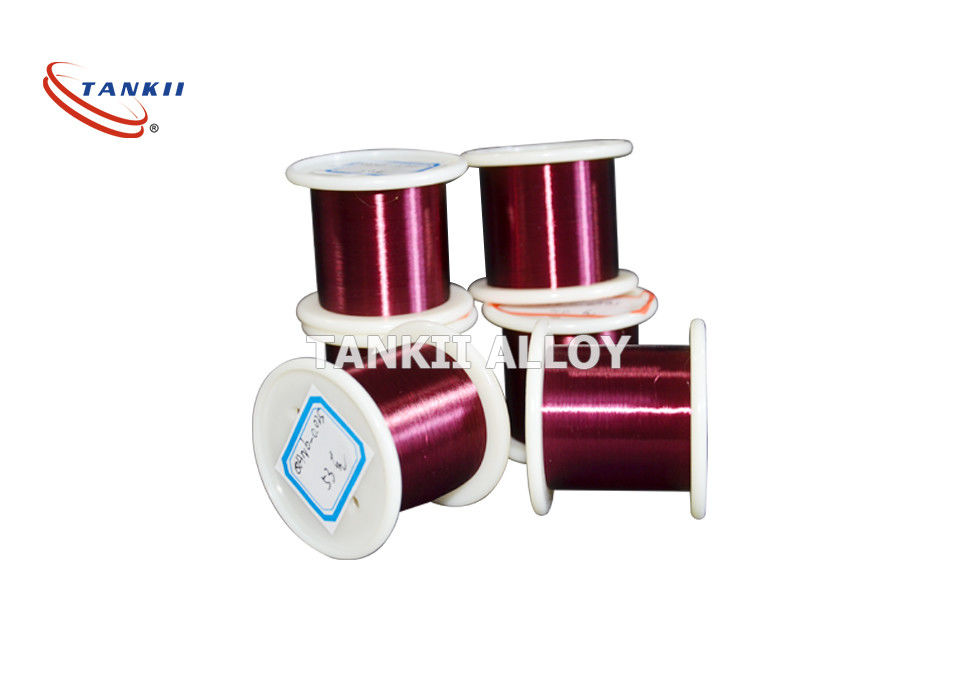

Round Polyester Enamelled Wire Type K Thermocouple Wire

Polyester Enamelled wire round wire thermocouple wire type K 0.031mm

NiCr-NiSi /NiAl (Type K) thermocouple wire finds the widest use in all basemetal thermocouple, at temperature above 500 °C.

Type K thermocouple wire has strong resistance to oxidation than other base metal thermocouples. It has high EMF against Platinum 67, excellent temperature accuracy, sensitivity and stability, with a low cost. It is recommended for oxidizing or inert atmospheres, but cannot be used directly in the following cases:
(1) Alternatively oxidizing and reducing atmosphere.
(2) Atmosphere with sulphur gases.
(3) Long time in vacuum.
(4) Low oxidizing atmosphere such as hydrogen and carbon monoxide atmosphere.


NiCr-NiAl thermocouple wire can be produced as per the chemical composition requirement of the customers.
Insulation material: PVC, PTFE, FB or as per the customer's requirement.

Detailed Parameter


Chemical Composition

Conductor Name

Polarity

Code

Nominal Chemical Composition /%

Ni

Cr

Si

Ni-Cr

Positive

KP

90

10

--

Ni- Si

Negative

KN

97

--

3
Working Temperature

Diameter/mm

Long time Working temperature /ºC

Short period Working temperature /ºC

0.3

700

800

0.5

800

900

0.8,1.0

900

1000

1.2,1.6

1000

1100

2.0,2.5

1100

1200

3.2

1200

1300
