Home ProductsEnamelled Wire

UEW PEW EIW EIWH AIW Enamellew High Resistance Wire Manganin CuNi44 Constantan

UEW PEW EIW EIWH AIW Enamellew High Resistance Wire Manganin CuNi44 Constantan

    • UEW PEW EIW EIWH AIW Enamellew High Resistance Wire Manganin CuNi44 Constantan
    • UEW PEW EIW EIWH AIW Enamellew High Resistance Wire Manganin CuNi44 Constantan
    • UEW PEW EIW EIWH AIW Enamellew High Resistance Wire Manganin CuNi44 Constantan
  • UEW PEW EIW EIWH AIW Enamellew High Resistance Wire Manganin CuNi44 Constantan

    Product Details:

    Place of Origin: Sahnghai China
    Brand Name: TANKII
    Certification: ISO:9001 RoHS
    Model Number: Enamelled Nichrome wire

    Payment & Shipping Terms:

    Minimum Order Quantity: 20kilograms
    Price: USD + 20-60 + kilograms
    Packaging Details: packing, wooden case. Inside package, carton
    Delivery Time: 7-10 work days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 10 + Tons + per month
    Contact Now
    Detailed Product Description
    Color: Red Green Yellow White Etc. Size: 0.01 - 10mm
    Standard: ASTM / GB / JIS / DIN Sample: Free

    UEW PEW EIW EIWH AIW Enamellew High Resistance Wire Manganin CuNi44 Constantan


    Product Description
    These enameled resistance wires have been broadly used for standard resistors, automobile
    parts, winding resistors, etc. using the insulation processing best suited for these applications, taking full advantage of the distinctive features of enamel coating.
    Furthermore, we will carry out enamel coating insulation of precious metal wire such as silver and platinum wire upon order. Please make use of this production-on-order.


    Type of bare Alloy wire
    The alloy we can do enamelled are Copper-nickel alloy wire,Constantan wire,Manganin wire. Kama Wire,NiCr Alloy wire,FeCrAl Alloy wire etc alloy wire
    Size:
    Round wire:0.01mm~3.0mm

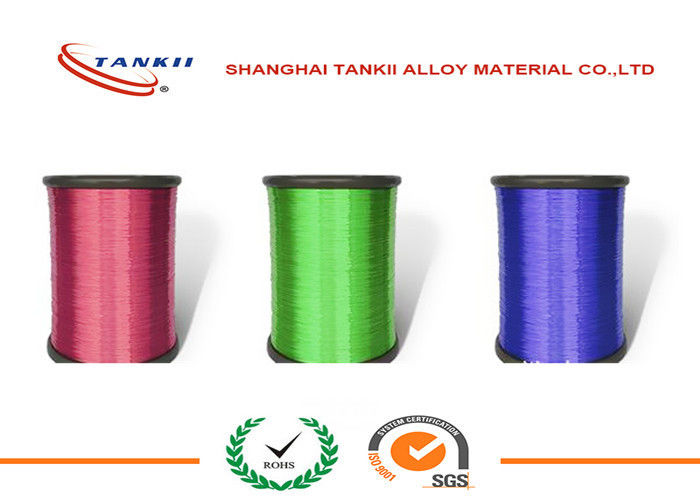

    Color of enamel insulation:Red,Green,Yellow,Black,Blue,Nature etc.
    Ribbon Size:0.01mm*0.2mm~1.2mm*24mm
    Moq:5kg each size

    Type of insulation

    Insulation-enamelled Name Thermal LevelºC
    (working time 2000h)
    Code Name GB Code ANSI. TYPE
    Polyurethane enamelled wire 130 UEW QA MW75C
    Polyester enamelled wire 155 PEW QZ MW5C
    Polyester-imide enamelled wire 180 EIW QZY MW30C
    Polyester-imide and polyamide-imide double coated enameled wire 200 EIWH
    (DFWF)
    QZY/XY MW35C
    Polyamide-imide enamelled wire 220 AIW QXY MW81C



    Chemical Content, %

    Ni Mn Fe Si Cu Other ROHS Directive
    Cd Pb Hg Cr
    2~5 11~13 <0.5 micro Bal - ND ND ND ND



    Mechanical Properties

    Max Continuous Service Temp 0-100℃
    Resisivity at 20℃ 0.44±0.04ohm mm2/m
    Density 8.4 g/cm3
    Thermal Conductivity 40 KJ/m·h·℃
    Temp Coefficient of Resistance at 20 ºC 0~40α×10-6/ºC
    Melting Point 1450℃
    Tensile Strength(Hard) 585 Mpa(min)
    Tensile Strength,N/mm2 Annealed,Soft 390-535
    Elongation 6~15%
    EMF vs Cu, μV/ºC (0~100ºC) 2(max)
    Micrographic Structure austenite
    Magnetic Property non
    Hardness 200-260HB
    Micrographic Structure Ferrite
    Magnetic Property Magnetic



    Application of Manganin

    Manganin foil and wire is used in the manufacture of resistor, Particularly ammeter shunt, because of its virtually zero temperature coefficient of resistance value and long term stability


    Application of Constantan
    Constantan is a copper-nickel alloy that contains specific minor amounts of additional
    elements to achieve precise values for the temperature coefficient of resistivity. Careful
    control of melting and conversion practices results in a very low level of pinholes at
    ultra-thin thicknesses. The alloy is used extensively for foil resistors and strain gauges.

    Shanghai Tankii Alloy Material Co., Ltd.specialized in production of Resistance Heating Alloy, Nickel Chromium Alloy, Iron Chromium Aluminum Alloy, Nickel Aluminum Alloy, Magnin, Copper Nickel Alloy, thermocouple wire, pure nickel and other precision alloy materials in the form of round wire, ribbon wire, sheet, tape, strip, rod and plate.
    We've already got ISO9001 quality system certificate and approval of ISO14001 environmental protection system.
    We own a complete set of advanced production flow of refining, cold reduction, drawing and heat treating etc. We also proudly have independent R&D capacity.
    Shanghai Tankii Alloy Material Co., Ltd has accumulated lots of experiences over nine years in this field. During nine years, more than 60 management elites and high science and technology talents were employed.They participated in every walk of the company life, which make our company keep blooming and invincible in the competitive market.
    Based on the principle of "first quality, sincere service", our managing ideology is pursuing technology innovation and creating the top brand in the alloy field. We persist in Quality - the foundation of the survival. It is our forever ideology to serve you with full heart and soul. We committed to provide customers all over the world with high-quality, competitive products and perfect service.
    Our products, such us nichrome wire, nichrome strip, fecral wire, fecral strip, thermocouple wire, nickel wire, nickel strip have been exported to Europe, USA, India, Southest Asia, South America,etc.
