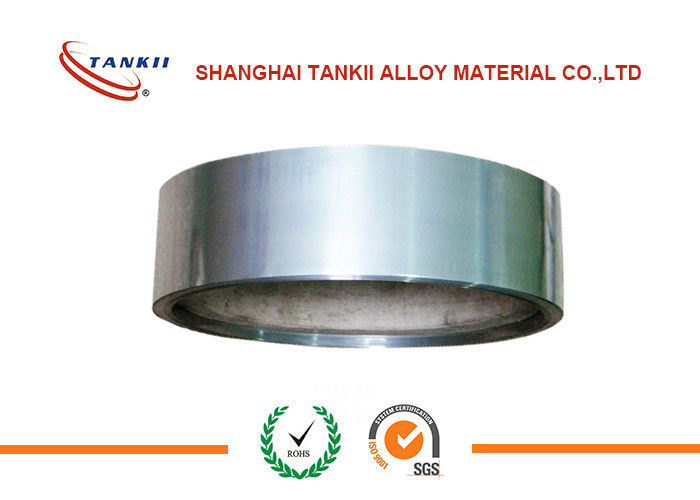

Bright Annealed Nickel Alloy Ni80cr20 Strip For Braking Resistor

Bright Annealed Nickel Alloy Ni80cr20 Strip For Braking Resistor

Bright Annealed Nickel Alloy Ni80cr20 Strip For Braking Resistor

Product Details:

Place of Origin: CHINA
Brand Name: TANKII
Certification: ISO9001
Model Number: NiCr80/20.

Payment & Shipping Terms:

Minimum Order Quantity: 20kg
Price: negotiation
Packaging Details: spool+plastic bag+carton+pallet for resistance wires
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20, 000kg/month
Contact Now
Detailed Product Description
Color: Sliver Or Polish Conductor Material: Ni-Cr
Wire: 0.018mm-10mm Condition: Bright Annealed
Feature:: High Nickel, High Resistance Certificate:: ISO 9001 RoHS SGS

Nickel Based Alloy Ni80cr20 Strip for Braking Resistor



NiCr80/20

A Resistance Alloy used in electrical heating application. It is recommended for use in dry air applications up to 2150 degrees F with good hot strength. It is an alloy of nickel and chromium with high electrical resistance; used for resistance heating elements. Nichrome 80/20 is an ideal material, because it has relatively high resistance and forms an adherent layer of chromium oxide when it is heated for the first time. Material beneath the wire will not oxidize, preventing the wire from breaking or burning out.
Applications:
These elements are commonly found in precision heating applications such as Medical Diagnostics, Satellite, and Aerospace
Electrical appliance industry
Ironing machines, water heaters, plastic moulding dies, soldering irons, metal sheathed tubular elements, cartridge elements
SPECIFICATION



NiCr Type:Cr20Ni80,Cr15Ni60, Cr20Ni35, Cr20Ni30, Cr25Ni20 etc.Series electric flat belt, electric fire wire.



3.Product size:

Round wire dia.0.05—12mm;

flat strip thickness0.03—5mm,flat strip width0.2—500mm.







Ni80Cr20

Chemical Content, %

C

P

S

Mn

Si

Cr

Ni

Al

Fe

Other

Max

0.08

0.02

0.015

0.60

0.75~1.60

20.0~23.0

Bal.

Max 0.50

Max 1.0

-





Mechanical Properties

Max Continuous Service:

Resisivity( 20℃)/Ω·m:







Density:

Thermal Conductivity:

Coefficient of Thermal Expansion:

Melting Point:

Elongation:

Micrographic Structure:

Magnetic Property:

1200℃

1.09 +/-0.05 (Dia: <0.5mm)

1.13+/-0.05  (Dia: 0.50-3.00 mm)

1.14+/-0.05  (Dia: >3.0mm)



8.4  g/cm3

60.3  KJ/m·h·℃

18.0  α×10-6/℃

1400 ℃

Min  20%

Austenite

nonmagnetic



Our Nichrome alloy are in the form of wire, ribbon, strip, coil.



  • Round wire
  • Ribbon (flat wire)
  • Strip / foil
  • Stranded wire
  • Sheet / plate



Delivery conditions are:

  • Bright annealed
  • Oxidized
  • Pickled
  • Enameled

Nichrome wire sizes are:

Wire: 0.018mm-10mm
Ribbon: 0.05*0.2mm-2.0*6.0mm
Strip: 0.5*5.0mm-5.0*250mm
Bar: 10-100mm



NiCr 80:20 – Industrial furnaces (upto 1200°C), electric cooking equipment, precision resistors.



NiCr 70:30 – Industrial furnaces (upto 1230°C) with alternating oxidizing/reducing atmosphere, precision resistors.



NiCr 60:15 – Industrial furnaces (upto 1100°C), electrically heated equipment, high-resistance and potentiometer resistors.



NiCr 40:20 – Domestic heating appliances (upto 1050°C), furnaces in carburising or semi-reducing atmosphere.



NiCr 30:20/ NiCr 20:25 – Industrial furnaces (upto 1050°C), heating elements of cooking equipment.





RAQ:

1. Why the price is so low?
You are ordering directly from the factory.

2.What type of payment do you have available?
A:We accept TT and L/C,as sample order,the Western union,Money gram and Aliexpress is available.

3.How can I get some samples?
We are honored to offer you samples.
4.How does your factory do regarding quality control?
"Quality is in my hand,customer in our heart”. Topright people always attach great importance to quality controlling from the very beginning to the very end.





Our other material:



Nickel chrome alloys: Ni80Cr20, Ni70Cr30, Ni60Cr15, Ni35Cr20, Ni30Cr20, pure nickel Ni200 and Ni201



FeCrAl alloy: 0Cr25Al5, 0Cr23Al5, 0Cr21Al4, 0Cr27Al7Mo20Cr21Al6Nb, 0Cr21Al6.



Copper nickel alloy: CuNi1, CuNi2, CuNi6, CuNi8, CuNi10, CuNi23, CuNi30, CuNi44, Constantan,CuMn12Ni

Nickel iron: 4J29(Kover), Invar 36, FeNi42, 79Ni4MoFe, 80Ni5MoFe, 1J50 (Ni50)



Thermocouple wire: Type K, N, E, J, T, S, R, B
