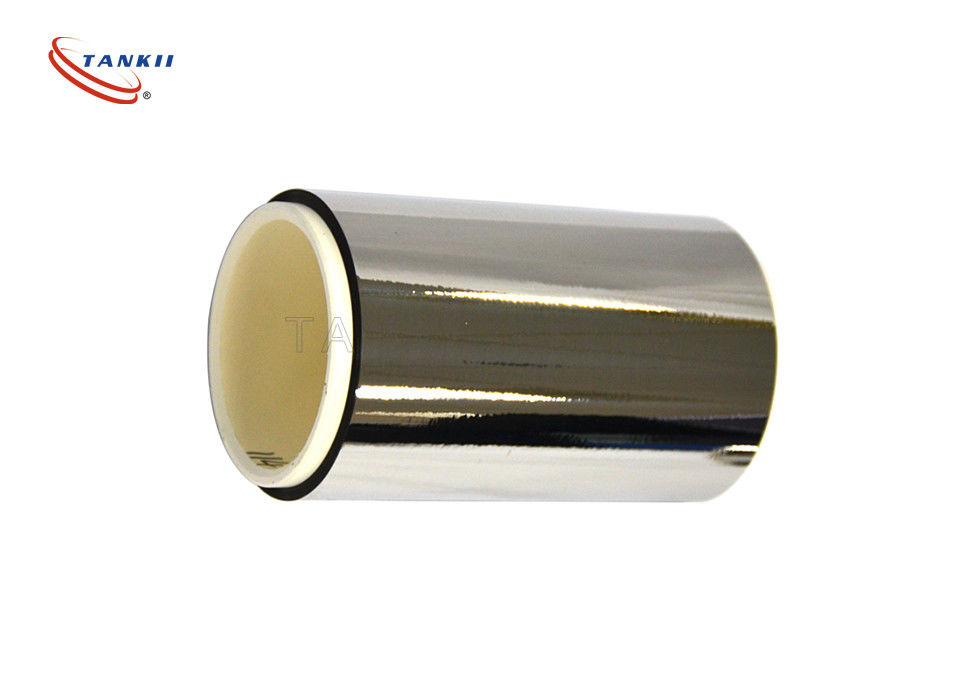

Precision Resistance Nicr Alloy / Evanohm Foil / Strip 0.001mm Thickness For Strainometer

Precision Resistance Nicr Alloy / Evanohm Foil / Strip 0.001mm Thickness For Strainometer

    • Precision Resistance Nicr Alloy / Evanohm Foil / Strip 0.001mm Thickness For Strainometer
    • Precision Resistance Nicr Alloy / Evanohm Foil / Strip 0.001mm Thickness For Strainometer
    • Precision Resistance Nicr Alloy / Evanohm Foil / Strip 0.001mm Thickness For Strainometer
    • Precision Resistance Nicr Alloy / Evanohm Foil / Strip 0.001mm Thickness For Strainometer
    • Precision Resistance Nicr Alloy / Evanohm Foil / Strip 0.001mm Thickness For Strainometer
  • Precision Resistance Nicr Alloy / Evanohm Foil / Strip 0.001mm Thickness For Strainometer

    Product Details:

    Place of Origin: China Mainland
    Brand Name: Tankii
    Certification: ISO9001
    Model Number: karma

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Packaging Details: Standard exoprt package
    Delivery Time: About 20 days after getting the payment
    Payment Terms: T/T, Paypal, Western Union, MoneyGram,
    Supply Ability: 1000Ton per year
    Contact Now
    Detailed Product Description
    Material: Karma / Evanohm Surface: Bright
    Thickness: 0.001mm~0.009mm Leading Time: 20 Days As Per The Order Qty
    Item: Precision Resistance Alloy NiCr / Evanohm Foil / Strip 0.001mm Thickness For Strainometer Application: Strain Resistance Materials
    Powder Or Not: Not Powder Density: 8.1g/cm3
    Elongation (≥ %): 10~20



    Precision Resistance Alloy NiCr / Evanohm Foil / Strip 0.001mm Thickness For Strainometer


    Tankii Nickel-chromium alloy with high and stable resistance, corrosion resistance, surface oxidation resistance, excellent coil- forming ability.it is an ideal material,it has good ductility,workability and weldability under high temperature and seismic strength.



    Common Name:Karma, Evanohm, Ni80Cr20,Nikrothal 8,MWS-650,NiCrA,Tophet A,HAI-NiCr 80,Chromel A,Alloy A,Alloy 650,N8,Resistohm 80, Stablohm 650,Nichorme V,Nikrothal 80.



    NiCr series: Karma, Evanohm, Cr20Ni80, Cr30Ni70, Cr15Ni60, Cr20Ni35, Cr20Ni30.

    1. Size dimension range:
    Foil: Tailor-made
    Wire: 0.01-10mm
    Ribbons: 0.05*0.2-2.0*6.0mm
    Strip: 0.05*5.0-5.0*250mm
    Bar:10-50mm



    Precision Resistance Alloy NiCr / Evanohm Foil / Strip 0.001mm Thickness For Strainometer



    Key Features of nichrome products:

    1. Nichrome 80 is a proven electrical resistance heating material
    2. Produces adherent chromium oxide layer to prevent oxidation
    3. Highly durable and corrosion resistant
    4. Ideal for use in frequent temperature switching application
    Chemical Composition and Propertes:

    Propertes/Grade
    Evanohm



    Karma


    NiCr 80/20

    NiCr 70/30

    NiCr 60/15

    NiCr 35/20

    NiCr 30/20

    Main Chemical Composition(%)

    Ni



    Bal.



    Bal.


    Bal.

    Bal.

    55.0-61.0

    34.0-37.0

    30.0-34.0



    Cr
    19~21.5 19~21.5
    20.0-23.0

    28.0-31.0

    15.0-18.0

    18.0-21.0

    18.0-21.0



    Fe
    - 2~3
    ≤ 1.0

    ≤ 1.0

    Bal.

    Bal.

    Bal.
      Al 2.7~3.2 2.7~3.2 - - - - -
      Cu 2.0~3.0 - - - - - -
      Mn 0.5~1.5 0.5~1.5 - - - - -

    Max Working Temperature(ºC)
    400 300
    1200

    1250

    1150

    1100

    1100

    Resistivity at 20ºC
    (μ Ω · m)
    1.33 1.33
    1.09

    1.18

    1.12

    1.04

    1.04

    Density(g/cm3)
    8.1 8.1
    8.4

    8.1

    8.2

    7.9

    7.9

    Thermal Conductivity
    (KJ/m· h· ºC)
    46 46
    60.3

    45.2

    45.2

    43.8

    43.8

    Coefficient of Thermal Expansion(α × 10-6/ºC)
    - -
    18

    17

    17

    19

    19

    Melting Point(ºC)
    1400 1400
    1400

    1380

    1390

    1390

    1390

    Elongation(%)
    10~20 10~20
    > 20

    > 20

    > 20

    > 20

    > 20

    Micrographic Structure
    austenite austenite
    austenite

    austenite

    austenite

    austenite

    austenite

    Magnetic Property
    Non Non
    nonmagnetic

    nonmagnetic

    nonmagnetic

    nonmagnetic

    nonmagnetic



    Precision Resistance Alloy NiCr / Evanohm Foil / Strip 0.001mm Thickness For Strainometer



    2. Products and services
    1> ROHS cerfication;
    2.> Small orders are accepted;
    3.> Factory direct sale;
    4.> Timely delivery;
    5> Samples are available;

    3 Features
    1>. Good oxidation resistance;
    2> . Low embrittlement at high temperature;
    3.> Good plasticity(easier to give them a shape);
    4> . Nice performance and processing;



    4 Applications
    1> . In metal sheathed tubular elements used in grills;
    2> . Toaster ovens;
    3.> Storage heaters;
    4.> As suspended coils in air heaters;
    5.> Used in clothes dryers, fan heaters, hand dryers;
    6> . Industrial hot wire foam cutters.



    Precision Resistance Nicr Alloy / Evanohm Foil / Strip 0.001mm Thickness For Strainometer

    Precision Resistance Nicr Alloy / Evanohm Foil / Strip 0.001mm Thickness For Strainometer

    Precision Resistance Nicr Alloy / Evanohm Foil / Strip 0.001mm Thickness For Strainometer
