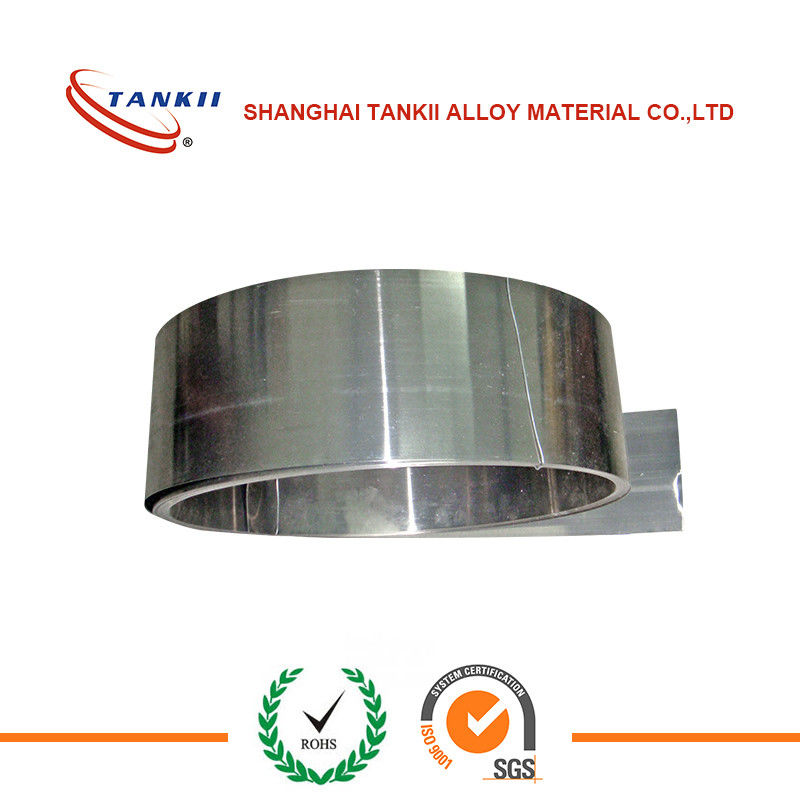

675 Alloy Cr15Ni60 NiCrC Nichrome Strip Used In Resistors ISO 9001

675 Alloy Cr15Ni60 NiCrC Nichrome Strip Used In Resistors ISO 9001

675 Alloy Cr15Ni60 NiCrC Nichrome Strip Used In Resistors ISO 9001

Product Details:

Place of Origin: CHINA
Brand Name: TANKII
Certification: ISO9001
Model Number: NiCr60/15

Payment & Shipping Terms:

Minimum Order Quantity: 20kg
Price: negotiation
Packaging Details: spool+plastic bag+carton+pallet for resistance wires
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20, 000kg/month
Contact Now
Detailed Product Description
Color: Sliver Or Polish Conductor Material: Ni-Cr
Thickness: : 0.02----4.0mm Condition: Bright Annealed
Feature:: High Nickel, High Resistance Certificate:: ISO 9001 RoHS SGS
Width: 2.5----250mm Type: Nickel Strip

  675 Alloy, Cr15Ni60, NiCrC,  Nichrome Strip, Sable Resistance For Resistors or Heating Element



NiCr60/15



Specifications

1.Pass: ISO9001 certification
2.fine after-sale services
3.small order accepted
4.samples available
5.short delivery time



1. Introduction to products

Nickel-chromium, nickel-chromium alloy with high and stable resistance, corrosion resistance, surface oxidation resistance is good, a better under high temperature and seismic strength, good ductility, good workability and weldability.



2. Products and services

1.Pass: ISO9001 certification;
2.fine after-sale services;
3.small order accepted;
4.samples available;



3.Application

Our Products widely apply to chemical industry, metallurgy mechanism, glass industry, ceramic industry, home appliance area and so on.



4.size

wires:0.018-10mm                   Ribbons:0.05*0.2-2.0*6.0mm

Strips:0.5*5.0-5.0*250mm       Bars:D10-100mm



Chemical Content, %

C

P

S

Mn

Si

Cr

Ni

Al

Fe

Other

Max

0.08

0.02

0.015

0.60

0.75~1.60

15.0-18.0

55-61

Max 0.50

Bal

-



Mechanical Properties

Max Continuous Service Temperature:

Resisivity ( 20℃)/Ω·m::



Density:

Thermal Conductivity:

Coefficient of Thermal Expansion:

Melting Point:

Elongation:

Micrographic Structure:

Magnetic Property:

1150℃

1.12 +/-0.05 (Dia: <0.5mm)

1.15+/-0.05  (Dia: ≥0.50 mm)

8.2 g/cm3

45.2 KJ/m·h·℃

17×10-6/℃ (20℃~1000℃)

1390℃

Min 20%

Austenite

nonmagnetic



Temperature Factor of Electrical Resistivity

20℃

100℃

200℃

300℃

400℃

500℃

600℃

1.011

1.024

1.038

1.052

1.064

1.069



700℃

800℃

900℃

1000℃

1100℃

1200℃

1300℃

1.073

1.0278

1.088

1.095

1.109

-

-





Our Nichrome alloy are in the form of wire, ribbon, strip, coil.



  • Round wire
  • Ribbon (flat wire)
  • Strip / foil
  • Stranded wire
  • Sheet / plate



Delivery conditions are:

  • Bright annealed
  • Oxidized
  • Pickled
  • Enameled



 Our major product line:

 Electric resistance alloy materials in wire, strip, tube, and bar form.

Furnace products and heating systems

  • Metalic heating elements
  • Heating modules: Prefabricated heating modules with electric heating elements and fiber or dense ceramic insulation.
  • Air heating cassettes: Cassettes with metallic heating elements for heating of air or gases
  • Diffusion Cassettes: Diffusion cassettes for the production of crystalline silicon wafers for solar cells and semiconductors
  • Furnace tubes: Extruded tubes made from FeCrAl alloys for gas-heated or electrically heated furnaces.
  • Construction materials: Wire, strip, tube and bar for manufacturing of furnace furniture and other furnace accessories
  • Furnace rollers: Furnace rollers for heat treatment furnaces.
  • Resistance heating wire and strip.: Resistance heating wire and strip for manufacturing of electric heating elements.
  • Technical Ceramics: Ceramic supporting materials for electrothermal components.
  • Thermocouple wire and strip: Wire, ribbon and strip for thermocouples, extension leads and compensating cables.
  • Ceramic engineering material: Ceramic engineering material for high-temperature and chemical environments.
  • Electric heating systems: Electric heating systems for aluminium and steel production







675 Alloy Cr15Ni60 NiCrC Nichrome Strip Used In Resistors ISO 9001675 Alloy Cr15Ni60 NiCrC Nichrome Strip Used In Resistors ISO 9001675 Alloy Cr15Ni60 NiCrC Nichrome Strip Used In Resistors ISO 9001
