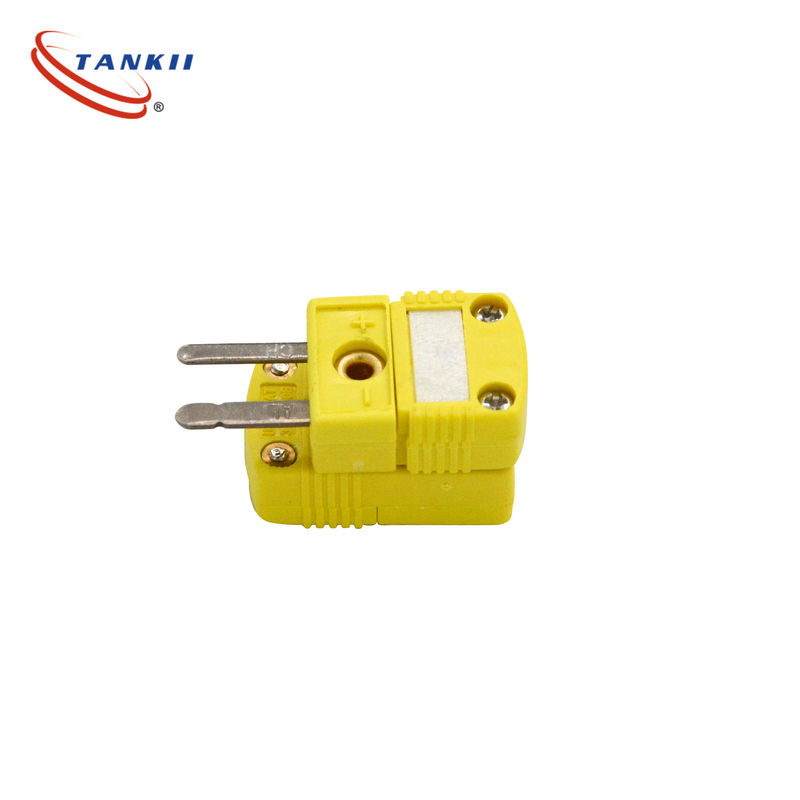

Wholesales SMPW/HMPW-K Miniature Connectors Type K In Yellow Color Used For Biopharmaceuticals

Wholesales SMPW/HMPW-K Miniature Connectors Type K In Yellow Color Used For Biopharmaceuticals

Quick Details for tankii Standard connector :

• Connector Type: K
• Special Information: Glass filled Nylon body

• Description: Thermocouple Connector, Standard, Type-K, Female Jack; 1/ea

• Max Temperature (DegreeC): 149
• Max Temperature (DegreeF): 300


When to use a Thermocouple Connector?

Although the simplest of thermocouples end in bare wires (as found in many laboratory and industrial/research applications, for example), there are many other applications where a connector is usually desirable to make life easier.
 The connector is usually used to connect the thermocouple sensor to thermocouple or extension cables, then on to the reference junction and the instrumentation concerned. The connectors allow for rapid fitting or exchange of sensors without sacrificing thermocouple conductor uniformity. Plug and jacks are designed so that their installation can be made simply and securely, with designed-in locking mechanisms. Plugs and jacks are polarized by size and are usually marked for negative and positive polarity. Although there is no standard as such, connectors are generally pin compatible with devices from several manufacturers.


Thermocouple connectors can also be ordered in a smaller compact size which are typically called mini thermocouple plugs and jacks.
The male mini thermocouple plugs have smaller flat polarized plugs.
Thermocouple plugs and jacks can be ordered in a variety of body materials with various temperature ratings to suite your application.

High Purity Alumina Ceramic Thermocouple Connectors are also available for high temperature applications up to 650℃.

All thermocouple Connectors can be ordered in Type E, J, K, N, T, R, S, and B thermocouple calibrations and with ANSI or IEC Color Coded bodies.

SMPW-K-M plug thermocouple connector best-selling miniature thermocouple plug type K

STANDARD THERMOCOUPLE CONNECTOR SPECIFICATIONS
1. Flat Pin Design
2. High Quality Thermoplastic body
3. Polarized flat pins made from Thermocouple Alloys
4. Central cover screw design for quick wiring
5. Molded barriers to prevent short circuit of conductors
6. Captive cover screw for easy assembly
7. Easy wire connection through sandwich construction
8. Stainless Steel Screws
9. Molded barriers to prevent short circuit
10. Available in all calibrations; Type B, E, J, K, N, R, S, T

Wholesales SMPW/HMPW-K Miniature Connectors Type K In Yellow Color Used For Biopharmaceuticals

Connector Type and Color


Pack and delivery:
Packing: 10pcs/package, 400pcs/ carton, Carton size: 50*32*27cm
Delivery time : 5-7 days after getting the payment
Delivery: By express

Application for the following :
1. Automobile
2. Semiconductor
3. Industrial automation
4. Photovoltaic
5. Research in universities
6. Biopharmaceuticals
7. Nuclear power
