Product Details
Place of Origin: China mainland
Brand Name: Tankii
Certification: ISO9001
Model Number: T
Payment & Shipping Terms
Minimum Order Quantity: 5 Pcs
Price: Negotiation
Packaging Details: 10pcs/package, 400pcs/ carton, Carton size: 50*32*27cm
Delivery Time: 3-5 days after getting the payment
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 5000 Piece/Pieces per day
Item: |
Miniature Thermocouple Plug And Socket Type T With Flat Pin Used For Medical Industry |
MOQ: |
1pc |
Available Size: |
Male And Female Connector |
Application: |
Connecting T Type Thermocouple Sensor With Extension Cable |
Standard: |
ANSI Or Customized |
Type: |
T Type |
Rated Current: |
10A/15A/16A |
Customized: |
Available |
Item: |
Miniature Thermocouple Plug And Socket Type T With Flat Pin Used For Medical Industry |
MOQ: |
1pc |
Available Size: |
Male And Female Connector |
Application: |
Connecting T Type Thermocouple Sensor With Extension Cable |
Standard: |
ANSI Or Customized |
Type: |
T Type |
Rated Current: |
10A/15A/16A |
Customized: |
Available |
Miniature Thermocouple Plug And Socket Type T With Flat Pin Used For Medical Industry
Advantages of Tankii miniature connector :

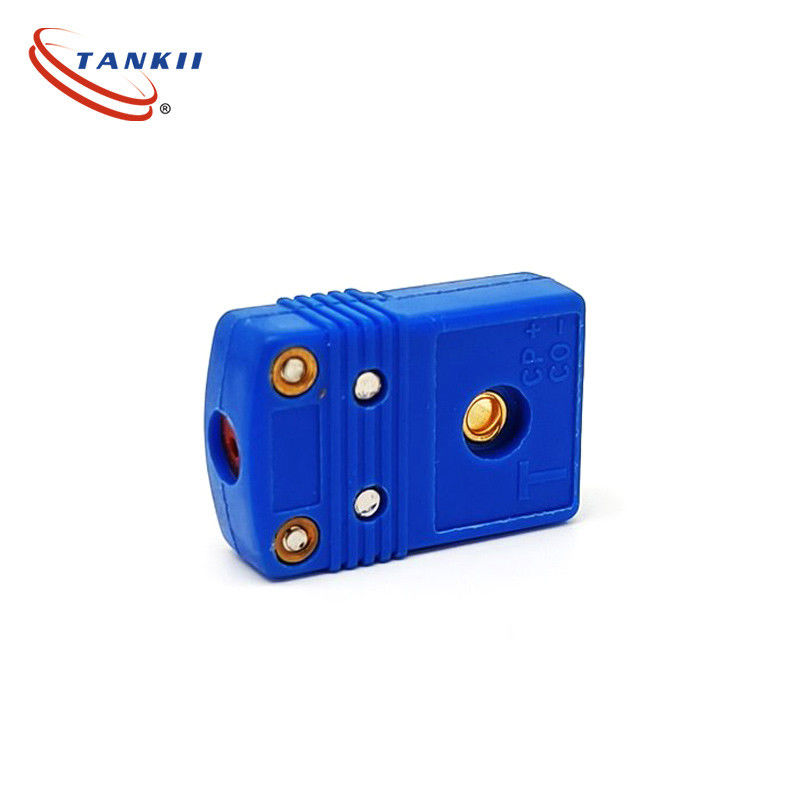

Description: Thermocouple Connector, miniature, Type-T, blue, Female Jack; 1/ea
Pin material: Copper, constantan
Application scenarios of Tankii thermocouple connectors:
Thermocouple connectors are widely used in fields such as healthcare, food testing, automotive industry, electronics industry, metallurgy, petroleum, aerospace, etc.
1. Industrial field: In the industrial field, thermocouple joints are mainly used for real-time temperature monitoring and process control during heat treatment processes, as well as temperature measurement in furnace temperature monitoring, liquid measurement, and other aspects.
2. Metallurgical and petroleum fields: In the fields of metallurgy and petroleum, thermocouple joints are widely used in charging furnaces, heat treatment furnaces, steel smelting industries, petrochemical industries, etc.
3. Aerospace field: Thermocouple joints are also widely used in industries such as aerospace, such as thermal restraints, temperature measurement of liquid oxygen and liquid hydrogen thrusters, etc.
When to use a Thermocouple Connector
Although the simplest of thermocouples end in bare wires (as found in many laboratory and industrial/research applications, for example), there are many other applications where a connector is usually desirable to make life easier.
The connector is usually used to connect the thermocouple sensor to thermocouple or extension cables, then on to the reference junction and the instrumentation concerned. The connectors allow for rapid fitting or exchange of sensors without sacrificing thermocouple conductor uniformity. Plug and jacks are designed so that their installation can be made simply and securely, with designed-in locking mechanisms. Plugs and jacks are polarized by size and are usually marked for negative and positive polarity. Although there is no standard as such, connectors are generally pin compatible with devices from several manufacturers.
Thermocouple connectors can also be ordered in a smaller compact size which are typically called mini thermocouple plugs and jacks.
The male mini thermocouple plugs have smaller flat polarized plugs.
Thermocouple plugs and jacks can be ordered in a variety of body materials with various temperature ratings to suite your application.
High Purity Alumina Ceramic Thermocouple Connectors are also available for high temperature applications up to 650℃.
All thermocouple Connectors can be ordered in Type E, J, K, N, T, R, S, and B thermocouple calibrations and with ANSI or IEC Color Coded bodies.
Blue Colour T Type Thermocouple Connector Used For Connecting Cable And Instrument
STANDARD THERMOCOUPLE CONNECTOR SPECIFICATIONS
1. Flat Pin Design
2. High Quality Thermoplastic body
3. Polarized flat pins made from Thermocouple Alloys
4. Central cover screw design for quick wiring
5. Molded barriers to prevent short circuit of conductors
6. Captive cover screw for easy assembly
7. Easy wire connection through sandwich construction
8. Stainless Steel Screws
9. Molded barriers to prevent short circuit
10. Available in all calibrations; Type B, E, J, K, N, R, S, T
Connector Types and Colors
| Type | Color | Conductor Material |
| KX | yellow (ANSI) or green (IEC) | NiCr-NiSi |
| NX | orange | NiCrSi-NiSiMg |
| EX | purple | NiCr-CuNi |
| JX | black | Fe-CuNi |
| TX | blue | Cu-CuNi |
| R/S | green | Cu-CuNi |
| PT100 | white | Cu/Ni |
Pack and delivery:
Packing: 10pcs/package, 400pcs/ carton, Carton size: 50*32*27cm
Delivery time : 5-7 days after getting the payment
Delivery: By express
Application for Medical industry:
Related Product:
Thermocouple bare wire:
Thermocouple extension cable
About Us
Shanghai Tankii Alloy Material Co., Ltd. specialized in production of thermocouple wires, thermocouple ribbon wire, thermocouple strips, thermocouple rods, thermocouple connectors and etc.
Based on the principle of “first quality, sincere service”, our managing ideology is pursuing technology innovation and creating the top brand in the alloy field. We persist in Quality - the foundation of the survival. It is our forever ideology to serve you with full heart and soul. We committed to provide customers all over the world with high-quality, competitive products and perfect service.
Welcome to email to me for more information on thermocouple connector.
