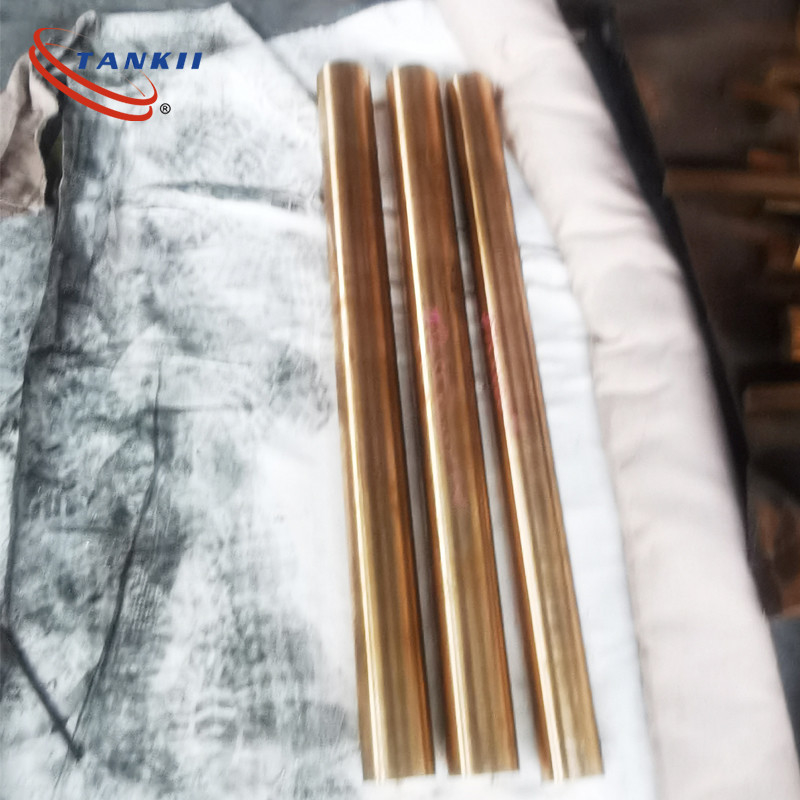

C17510 Beryllium Nickel Copper Material Round Bar CuBe C1720 Beryllium Copper Rod

Name: C17510 Beryllium Nickel Copper Material Round Bar CuBe C1720 Beryllium Copper Rod
Brand: TANKII
SKU: Beryllium Copper rod
Price: 1.00 USD
Availability: InStock
Rating: 4.7 (155 reviews)

Product Details

Place of Origin: Shanghai, China

Brand Name: TANKII

Certification: ISO9001 SGS

Model Number: Beryllium Copper rod

Payment & Shipping Terms

Minimum Order Quantity: 100 KG

Price: negotiable

Packaging Details: Wooned Case

Delivery Time: 7-20 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 200 Tons per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            C17510 Round Bar, Beryllium Nickel Copper Round Bar, C1720 Beryllium Copper Rod


Material:	Beryllium Copper Alloy Rod	Standard:	GB
Surface:	Bright	Diameter:	3.0-300.0mm
Length:	1000-6000mm	Trademark:	TANKII
Transport Package:	Wooden Case	HS Code:	74099000
Shape:	Round/ Flat

Material:	Beryllium Copper Alloy Rod
Standard:	GB
Surface:	Bright
Diameter:	3.0-300.0mm
Length:	1000-6000mm
Trademark:	TANKII
Transport Package:	Wooden Case
HS Code:	74099000
Shape:	Round/ Flat

Description

C17510 Beryllium Nickel Copper Material Round Bar CuBe C1720 Beryllium Copper Rod

C17510 Beryllium Nickel Copper Material Round Bar CuBe Beryllium Copper C1720 rod

Specification
UNS/CDA: UNS. C17510, CDA 1751
ASTM: B441
QQ/MIL: SAEJ 461,463
RWMA: Class 3
DIN: 2.0850, CW110C

Chemical Composition

Be:: 0.20-0.60%
Ni 1.40-2.20%
Cu:: Balance
Note:
Cu+Be+Co+Ni+Fe:99.50% Min.
Physical Properties

Density (g/cm3)	0.317Ib/in3 at 68F
Specific Gravity	8.83g/cm3
Melting Point(Liquidus)	1955F
Melting Point(Solidus)	1885F
Electrical Resistivity	22.8 ohms/cmil/ft@68F
Electrical Conductivity	48%IACS@68F(heat-treated)
Thermal Conductivity	120.0Btu ft ata 68F
Modulus Elasticity inTension	19200ksi

Application

UNS.C17510 Beryllium Copper Alloy 3( CDA1751 DIN CuNi2Be 2.0850 CW110C)

Beryllium copper alloy C17510 is heat-treatable with moderate electrical and thermal conductivity and high tensile strength.
It is recommended for projection welding dies, flash and butt welding dies, current-carrying members, and heavy-duty offset electrode holders. It is also generally recommended for spot and steam welding steels with high electrical resistance, such as stainless steel.
It provide a good strength with even better thermal conductivity than C17200.This alloy offers conductivity of 45 to 60 percent of pure copper while providing significant strength and hardness properties. So C17510 is often used in the resistance welding industry
