Product Details
Place of Origin: china
Brand Name: TANKII
Model Number: Nial80/20
Payment & Shipping Terms
Minimum Order Quantity: 5kg
Price: Negotiation
Packaging Details: on spool or in coil, then in wooden case
Payment Terms: Western Union, L/C, T/T
Supply Ability: 500kg/month
State: |
Bright Annealed |
Diameter: |
3.17 |
Application: |
Welding, Brazing, Spraying |
Corrosion Resistance: |
Excellent |
Heat Treatment: |
Annealing |
State: |
Bright Annealed |
Diameter: |
3.17 |
Application: |
Welding, Brazing, Spraying |
Corrosion Resistance: |
Excellent |
Heat Treatment: |
Annealing |
Equivalent: TAFA 79B, PMET 884,Sulzer Metco 405
NiAl 80/20 can be used as an adhesive coating and require minimal surface treatment. Bond strengths in excess of 9000 psi can be obtained on blasting surfaces of gravel. It has good resistance to high temperature oxidation and abrasion, and excellent resistance to impact and bending.
Application:
| C | Si | S | Mn | Cr | Ni | Al | P |
| ≤0.08 | 0.75-1.6 | ≤0.015 | ≤0.6 | 20.0-23.0 | Bal. | ≤0.5 | ≤0.02 |
Typical Deposit Characteristics
| Typical Hardness HRB |
Bond Strength PSI |
Deposit Rate lbs /hr/100A |
Deposit Efficiency | Machilityineab |
| 60-75 | 9100 | 10 | 60-70% | Good |
Wire Dimensions:
1/16''(1.6mm),2.0mm,DIN 200,wire weight per spool can be 15kgs and 12.5kgs
1/8''(3.17mm),it will be coil,weight per coil is 5kgs/10kgs/15kgs
They can be available according to your requirements.
Our main thermal spray wire
3.17mm Nial80/20 Thermal Spray Wire Tafa 79b Metco 405 for Bond Coat
DESCRAPTION:
Nickel clad aluminum exothermic coating powder, and the substrate with high strength, mainly used for spraying primer coating having oxidation resistance; but also as a work piece surface coating or repair. And ordinary carbon steel, alloy steel, stainless steel, nitriding steel, cast iron, cast steel, nickel, magnesium, zirconium, titanium, Monel, nickel-chromium alloy can achieve a good metallurgical bond micro.
NiAl 80/20 is widely used as bond coat for subsequent thermal spray topcoats and as a one step build up material for dimensional restoration of aircraft engines.It show good resistance to high temperature oxidation and abrasion, and excellent resistance to impact and bending. Nickel Aluminum 80/20 thermal spray wires can equivalent to: Tafa 79B, Sulzer Metco 405.
Product Details
Chemical composition:
| Grade | Nominal composition | Al % | Ni % |
| NiAl 80/20 | Min | 20.0 | |
| Max | Bal. |
Typical Characteristics:
| Typical Hardness | Bond Strength | Deposit Rate | Deposit Efficiency | Machilityineab |
|
HRB 60-75
|
9100 psi
|
10 lbs /hr/100A | 60-70% | Good |

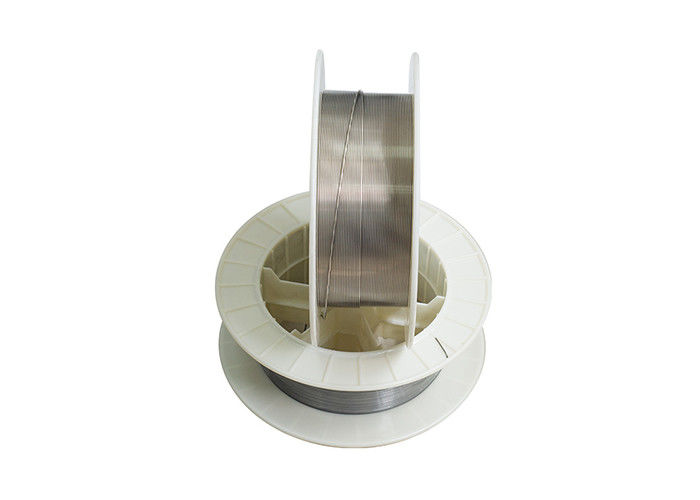

Sizes & Packaging:
| Diameter | Packaging | Wire Weight |
| 1/8" (3.17mm) | MIG (D 300) | 5kg((33 lb)/spool |
Note that special sizes, or packing requirements are available on all requests.
|
Item
|
Inconel 625
|
Ni95Al5
|
45CT
|
Monel 400
|
Monel 500
|
HC-276
|
Cr20Ni80
|
|
C
|
≤0.05
|
≤0.02
|
0.01-0.1
|
≤0.04
|
≤0.25
|
≤0.02
|
≤0.08
|
|
Mn
|
≤0.4
|
≤0.2
|
≤0.2
|
2.5-3.5
|
≤1.5
|
≤1.0
|
≤0.06
|
|
Fe
|
≤1.0
|
N/A
|
≤0.5
|
≤1.0
|
≤1.0
|
4.0-7.0
|
N/A
|
|
P
|
≤0.01
|
≤0.01
|
≤0.01
|
≤0.01
|
≤0.01
|
≤0.01
|
≤0.02
|
|
S
|
≤0.01
|
≤0.01
|
≤0.01
|
≤0.01
|
≤0.01
|
≤0.01
|
≤0.01
|
|
Si
|
≤0.15
|
≤0.2
|
≤0.2
|
≤0.15
|
≤0.5
|
≤0.08
|
0.75-1.6
|
|
Cu
|
N/A
|
N/A
|
N/A
|
rest
|
27-33
|
N/A
|
N/A
|
|
Ni
|
rest
|
rest
|
rest
|
65-67
|
rest
|
rest
|
rest
|
|
Co
|
N/A
|
N/A
|
N/A
|
N/A
|
N/A
|
N/A
|
N/A
|
|
Al
|
≤0.4
|
4-5
|
N/A
|
≤0.5
|
2.3-3.15
|
N/A
|
N/A
|
|
Ti
|
≤0.4
|
0.4-1
|
0.3-1
|
2.0-3
|
0.35-0.85
|
N/A
|
N/A
|
|
Cr
|
21.5-23
|
≤0.2
|
42-46
|
N/A
|
N/A
|
14.5-16
|
20-23
|
|
Nb
|
3.5-4.15
|
N/A
|
N/A
|
N/A
|
N/A
|
N/A
|
≤1.0
|
|
Mo
|
8.5-10
|
N/A
|
N/A
|
N/A
|
N/A
|
15-17
|
N/A
|
|
V
|
N/A
|
N/A
|
N/A
|
N/A
|
N/A
|
≤0.35
|
N/A
|
|
W
|
N/A
|
N/A
|
N/A
|
N/A
|
N/A
|
3.0-4.5
|
N/A
|
|
Impurities
|
≤0.5
|
≤0.5
|
≤0.5
|
≤0.5
|
≤0.5
|
≤0.5
|
≤0.5
|
TYPICAL DEPOSIT CHARACTERISTICS:
1.Typical Hardness HRB 60-75
2. Bond Strength 9100 psi
3.Deposit Rate 10 lbs /hr/100A
4. Deposit Efficiency 70%
5. Wire Coverage 0.9 oz/ft2 / m
6. Surface Texture *Variable
7. Machineability Good
1. CE and ROHS cerfication;
2. Small orders are accepted;
3. Factory direct sale;
4. Timely delivery;
5. Samples are available;
SURFACE PREPARATION:
Surface should be clean, white metal, with no oxides (rust), dirt, grease, or oil on the surface to be coated. Note: It is best not to handle surfaces after cleaning. Recommended method of preparationis, to grit blast with 24 mesh aluminum oxide, rough grind, or rough machine in a lathe.
SPECIFICATION:
NOMINAL CHEMICAL COMPOSISTION (wt%):
Al Ni
20 Bal
80Ni 20Al
RECOMMENDED SPRAY PARAMETERS:
| Diameter | Air Pressure | Voltage | Amperage | Standoff |
| 3.17mm | *50 - 60 psi | *29 - 32 | *100 - 200 | *3 - 6 in (8 - 15cm) |
* Parameters are typical and may vary depending on equipment used. Contact your equipment manufacture for optimum spray parameters.
OTHER Chemical Composition And Main Properties
1. What's the minimum quantity customer can order?
If we have your size in stock, we can provide any quantity you want.
If we do not have, for spool wire, we can produce 1 spool, about 2-3kg. For coil wire, 25kg.
2. How can you pay for small sample amount?
We have Western union account, wire transfer for sample amount also ok.
3. Customer do not have express account. How will us arrange the delivery for sample order?
Just need to provide your address information, we will check the express cost, you can arrange the express cost together with sample value.
4. What's our payment terms?
We can accept LC T/T payment terms, it also depending on delivery and total amount. Let's talk more in details after getting your detailed requirements.
5. Do you provide free samples?
If you want several meters and we have stock of your size, we can provide, customer need to bear the International express cost.
6. What's our working time?
We will give you reply through email/phone Online contact tool within 24 hours. No matter working day or holidays. Pls contact with me whenever you need: Mobile: +86-18017457857
