Product Details
Place of Origin: China Mainland
Brand Name: TANKII
Certification: ISO9001
Model Number: N6 /Ni200
Payment & Shipping Terms
Minimum Order Quantity: 20kg
Price: usd35~65/kg
Packaging Details: In Coil
Delivery Time: 5~14 dyas after getting the payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 tons/year
Item: |
Nickel 99.6% Strip |
Density: |
8.9 |
Stock Size: |
0.3mm*25mm |
Leading Time: |
2~25 Days As Order Qty |
MOQ: |
20kg Per Size |
Purity: |
More Than 99.6% |
Advantage: |
Strong Conductivity |
Item: |
Nickel 99.6% Strip |
Density: |
8.9 |
Stock Size: |
0.3mm*25mm |
Leading Time: |
2~25 Days As Order Qty |
MOQ: |
20kg Per Size |
Purity: |
More Than 99.6% |
Advantage: |
Strong Conductivity |
Ni201 /N02200 /Nickel 99.6% Strip 0.3*100mm Half Hard For Nickel Cadmium Battery
| Grade | Ni+Co | Cu | Si | Mn | C | Mg | S | P |
| N4 | 99.8 | 0.015 | 0.03 | 0.002 | 0.01 | 0.01 | 0.001 | 0.001 |
| N6 | 99.6 | 0.10 | 0.10 | 0.05 | 0.10 | 0.10 | 0.005 | 0.002 |
| Ni201 | ≥99.0 | ≤0.25 | ≤0.35 | ≤0.35 | ≤0.02 | / | ≤0.01 | / |
| Ni200 | ≥99.2 | ≤0.25 | ≤0.35 | ≤0.35 | ≤0.15 | / | ≤0.01 | / |
Physical properties of nickel foil for battery:
| Density | Melting point | Coefficient of expansion | Modulus of rigidity | Modulus of elasticity | Electrical resistivity | |
| Ni200 | 8.9g/cm3 | 1446°C | 13.3 µm/m °C (20-100°C) | 81kN/mm2 | 204kN/mm2 | 9.6μW• cm |
| Ni201 | 1446°C |
13.1µm/m °C (20-100°C) |
82kN/mm2 | 207kN/mm2 | 8.5μW• cm |
Composition of nickel foil for battery:
| Grade | Element Composition/% | |||||||
| Ni+Co | Mn | Cu | Fe | C | Si | Cr | S | |
| Ni201 | ≥99.0 | ≤0.35 | ≤0.25 | ≤0.30 | ≤0.02 | ≤0.3 | ≤0.2 | ≤0.01 |
| Ni200 | ≥99.0 | /≤0.35 | ≤0.25 | ≤0.30 | ≤0.15 | ≤0.3 | ≤0.2 | ≤0.01 |

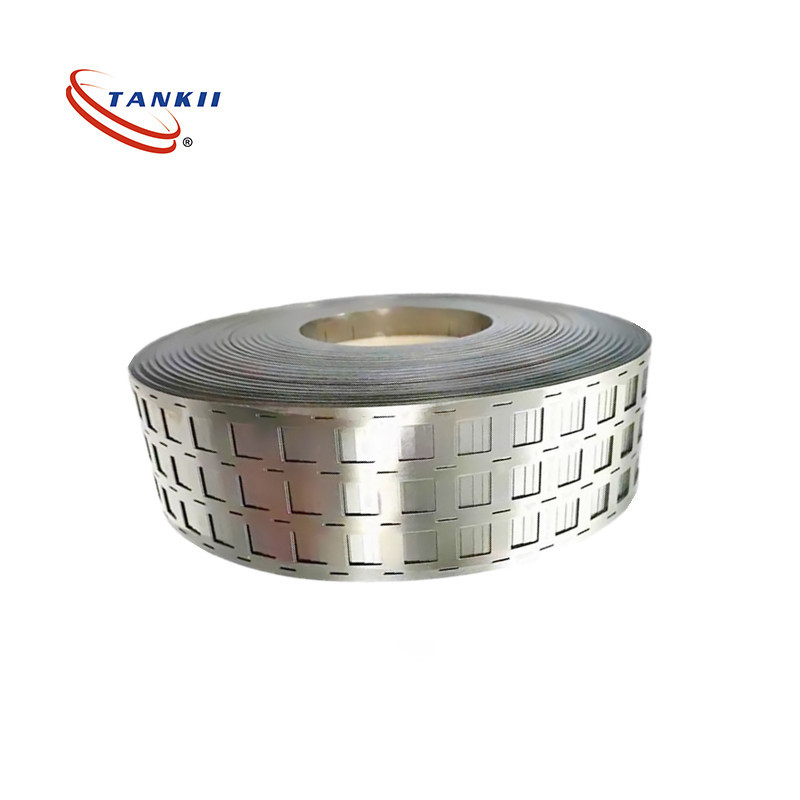

18650 battery nickel strip
H shape nickel strip: 1P, 2P 3P, 4P, 5P, 6P, 7P, 8P, 9P
| Model | Thickness | Distance of two welding centers: 18.5mm (used for battery pack without battery spacer) |
Distance of two welding centers: 19mm | Distance of two welding centers: 19.5mm | Distance of two welding centers: 20/20.25mm |
| Width(mm) | Width(mm) | Width(mm) | Width(mm) | ||
| 1P | 0.15/0.2mm | 8 | 8 | 8 | 8 |
| 2P | 25.5/27 | 26.5/27 | 26.5/27 | 27 | |
| 3P | 44 | 46 | 46 | 47 | |
| 4P | 62.5 | 65.5 | 65.5 | 67 | |
| 5P | 81 | 85 | 85 | 87 | |
| 6P | 99.5 | 104.5 | 104.5 | 107 | |
| 7P | 118 | 124 | 124 | 127 | |
| 8P | 136.5 | 143.5 | 143.5 | 147 | |
| 9P | 155 | 163 | 163 | 167 |
4. Application:
Shieldingmaterial for communication electronics, antenna material, EMI-shieldingmaterial, spring contact,
flexible terminal, environmentally-friendlyplating-free electronic parts and components, quartz oscillator, high-level material and electric material.
It widely used for core of all kinds of the magnetic head-frequency, magnetic head-core,
Inductor microelement, high frequency induction element, the performace reaches or approaches advanced
Should have any question, please contact us freely.
