Product Details
Place of Origin: China
Brand Name: No
Certification: Rohs
Model Number: 3J1
Payment & Shipping Terms
Minimum Order Quantity: 100Kg
Price: 36USD
Packaging Details: wooden box
Delivery Time: 10-15 days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 500 tons per month
Material: |
FeNi |
Shape: |
Strip |
Application: |
Industrial Elestic Element |
Dimensions: |
Customizable |
Standard: |
GB EN DIN ASTM |
Size: |
Customizable |
Condition: |
Hard Soft Harf Hard |
Packing: |
Wooden Box |
Material: |
FeNi |
Shape: |
Strip |
Application: |
Industrial Elestic Element |
Dimensions: |
Customizable |
Standard: |
GB EN DIN ASTM |
Size: |
Customizable |
Condition: |
Hard Soft Harf Hard |
Packing: |
Wooden Box |

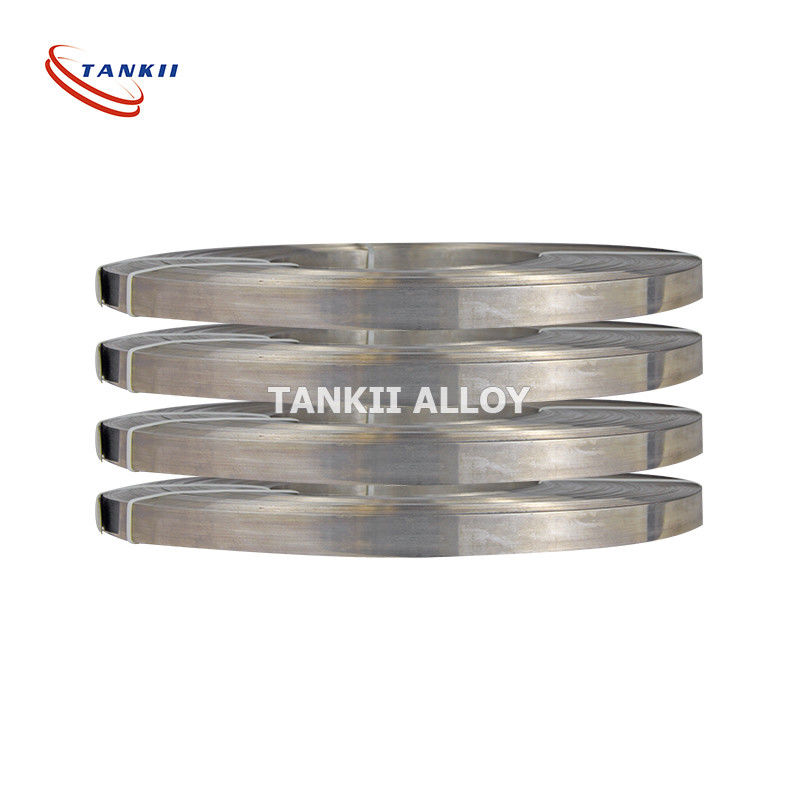

iron-nickel-chromium high elastic alloy strip 3J1/36HXTЮ strip
3J1 precision alloy is an iron-nickel-chromium austenite precipitation strengthening type with high elasticity alloy. After solution treatment, it has good plasticity, low hardness and easy processing and forming. After aging treatment after solid solution or cold strain, high mechanical properties and elastic properties are obtained.
This type of alloy has the characteristics of high strength, high elastic modulus, small elastic aftereffect and hysteresis, weak magnetic properties, good corrosion resistance and thermal stability, and can be used at higher temperature and greater stress. Or work under corrosive media conditions. 3J1 alloy can work below 250℃. This type of alloy can also be used at low temperatures (such as near -200°C).
For 3J1(Ni36CrTiAl),the equivalent in other country is ЭИ702,36HXTЮ, A286
Product features:
High elasticity, corrosion resistance, weak magnetic or non-magnetic.
Application:
It is mainly used to make Make precision sensors, mechanical filter vibrators, tuning forks of frequency resonators, and reeds and diaphragms in resonant relays.
Chemical Content(%):
| C | Mn | Si | P | S | Ni | Cr | Ti | Al | Fe | |
| ≤0.05 | ≤1.0 | ≤0.80 | ≤0.02 | ≤0.02 | 34.5-36.5 | 11.5-13 | 2.7-3.2 | 1.0-1.8 | Bal. |
Physical properties and Mechanical properties:
| Cold strain+aging state | Solution+aging state | |
| Density | ρ=8.0g/cm3 | |
| Resistivity | ρ=1.02μΩ.m | |
| Coefficient of thermal expansion | 12.0～14.0)×10-6/℃ | |
| Magnetic Susceptibility | χm=(12.5～205)×10-11 |
The alloy has good corrosion resistance to corrosive media such as nitric acid, phosphoric acid, sodium hydroxide, sulfur-containing petroleum, fuel oil and lubricating oil, as well as under ocean and tropical climate conditions.
Form and Dimension:
| Strip | (0.05~2.0)mm x(10~200)mm |
| Bar/Rod | Φ10~Φ100mm |
| Wire | Φ0.5~Φ10mm |
Our Standard is YB/T5256-1993 YB/T 5253-93
