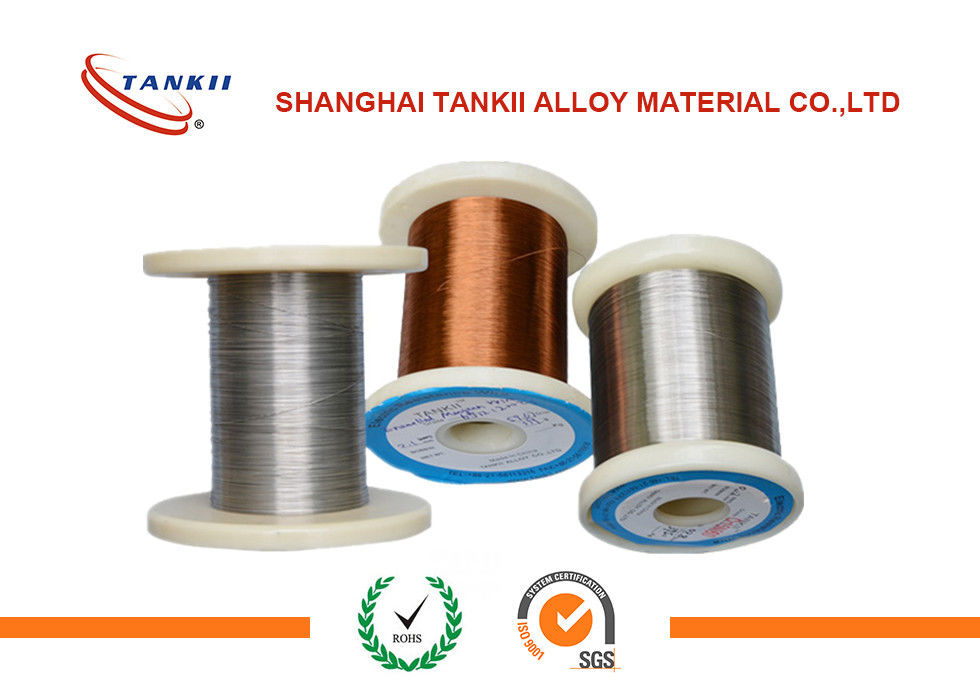

Karma Enamelled Wire Dia 0.08mm Resistance Heating Wire for Precision Instrument

Karma Enamelled Wire Dia 0.08mm Resistance Heating Wire for Precision Instrument

    • Karma Enamelled Wire Dia 0.08mm Resistance Heating Wire for Precision Instrument
    • Karma Enamelled Wire Dia 0.08mm Resistance Heating Wire for Precision Instrument
    • Karma Enamelled Wire Dia 0.08mm Resistance Heating Wire for Precision Instrument
  • Karma Enamelled Wire Dia 0.08mm Resistance Heating Wire for Precision Instrument

    Product Details:

    Place of Origin: China
    Brand Name: TANKII
    Certification: ROHS,SGS
    Model Number: Karma

    Payment & Shipping Terms:

    Minimum Order Quantity: 5kg
    Packaging Details: in Spool
    Payment Terms: L/C, T/T, Western Union
    Contact Now
    Detailed Product Description
    Material: Karma Size: 0.05~2mm
    Application: Precision Instrument Insulation: Enamelled
    Temper Class: 150,180,200,220 Color: Red,Blue,Green,Black

    Karma Enamelled Wire Dia 0.08mm Resistance Heating Wire for Precision Instrument



    Product Description

        These enameled resistance wires have been broadly used for standard resistors, automobile
    parts, winding resistors, etc. using the insulation processing best suited for these applications,

    taking full advantage of the distinctive features of enamel coating.

    Furthermore, we will carry out enamel coating insulation of precious metal wire such as silver

    and platinum wire upon order. Please make use of this production-on-order.



    Chemistry of Karma Wire



    Name Code Main Composition% Standard
    Cr Al Fe Ni JB/T5328
    Karma 6J22 19~21 2.5~3.2 2.0~3.0 Bal



    Type Of Bare Alloy Wire

       The alloy we can do enamelled are Copper-nickel alloy wire,Constantan wire,Manganin wire.

    Kama Wire,NiCr Alloy wire,FeCrAl Alloy wire etc alloy wire



    Size:

    Round wire:0.018mm~3.0mm

    Color of enamel insulation:Red,Green,Yellow,Black,Blue,Nature etc.

    Ribbon Size:0.01mm*0.2mm~1.2mm*24mm

    Moq:5kg each size



    Type of Insulation


    Insulation-enamelled Name

    Thermal Level℃

    (working time 2000h)

    Code Name GB Code ANSI. TYPE
    Polyurethane enamelled wire 130 UEW QA MW75C
    Polyester enamelled wire 155 PEW QZ MW5C
    Polyester-imide enamelled wire 180 EIW QZY MW30C
    Polyester-imide and polyamide-imide double coated enameled wire 200

    EIWH

    (DFWF)

    QZY/XY MW35C
    Polyamide-imide enamelled wire 220 AIW QXY

    MW81C

































    Product



    Karma Enamelled Wire Dia 0.08mm Resistance Heating Wire for Precision Instrument
