Product Details
Place of Origin: China Mainland
Brand Name: Tankii
Certification: ISO9001
Model Number: K
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiation
Packaging Details: Standard exoprt package in carton box or wooden case
Delivery Time: 5~20 days as per order qty
Payment Terms: T/T, Paypal, Western Union, MoneyGram,
Supply Ability: 1000Ton per year
Item: |

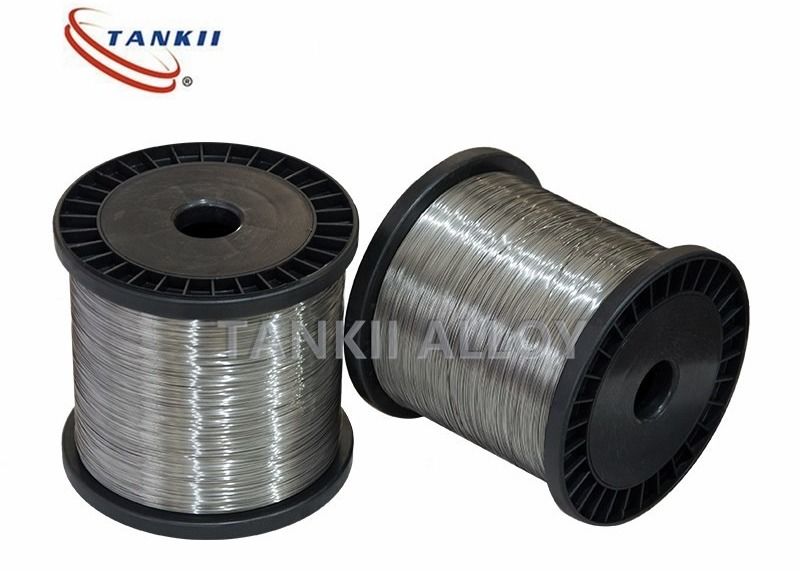

14AWG 1.63mm Thermocouple Bare Wire Type K For Industrial Thermocouples |
Stock Size: |
1.63mm |
MOQ: |
5kg~10kg |
Shape: |
Wire / Coil |
Sample: |
Available |
Wire Size: |
0.05~10mm |
Production Time: |
5~20 Days After Getting The Payment |
Wire Packing: |
Spool Or Coil As Per The Size |
Item: |
14AWG 1.63mm Thermocouple Bare Wire Type K For Industrial Thermocouples |
Stock Size: |
1.63mm |
MOQ: |
5kg~10kg |
Shape: |
Wire / Coil |
Sample: |
Available |
Wire Size: |
0.05~10mm |
Production Time: |
5~20 Days After Getting The Payment |
Wire Packing: |
Spool Or Coil As Per The Size |
Type K Thermocouple (Chromel/Alumel) Bare Wire for Industrial Temperature Measurement
Type K thermocouples usually work in most applications as they are nickel based and exhibit good corrosion resistance. It is the most common sensor calibration type providing the widest operating temperature range. Due to its reliability and accuracy the Type K thermocouple is used extensively at temperatures up to 2300°F (1260°C).
The simplest thermocouple is made using a bare wire configuration, that is two thermoelements joined at one end and directly exposed to the atmosphere of the operating environment.
Thermocouple alloy wire(high temperature level) types , this type of thermocouple wire is mainly suitable
for thermocouple type K, J, E, T, N and L and other high temperature detection instrument, temperature sensor, etc.
|
Chemical Composition for thermocouple wire
|
|||||
Conductor Name |
Polarity |
Code |
Nominal Chemical Composition /% |
||
Ni |
Cr |
Si |
|||
Ni-Cr |
Positive |
KP |
90 |
10 |
-- |
Ni- Si |
Negative |
KN |
97 |
-- |
3 |
|
Working Temperature
of thermocouple wire |
||
| Diameter/mm | Long time Working temperature /ºC |
Short period Working temperature /ºC |
0.3 |
700 |
800 |
0.5 |
800 |
900 |
0.8,1.0 |
900 |
1000 |
1.2,1.6 |
1000 |
1100 |
2.0,2.5 |
1100 |
1200 |
3.2 |
1200 |
1300 |
Application of thermocouple wire:
1. Heating - Gas burners for ovens
2. Cooling - Freezers
3. Engine protection - Temperatures and surface temperatures
4. High temperature control - Iron casting
Product packing details:
