Product Details
Place of Origin: Jiangsu, China
Brand Name: TANKII
Certification: DIN, ASTM, JIS ROHS
Model Number: Cr20Ni80
Payment & Shipping Terms
Minimum Order Quantity: 10KG
Price: 30-80USD
Packaging Details: spool ,coil, carton, wood box, or as clients' requirement
Delivery Time: 5-10 work days
Payment Terms: T/T, L/C, , Western Union
Supply Ability: 50 tons per month
Grade: |
NiCr8020, Chromel A, Nikrothal 80, NCHW1,N8, Cronix 80, Alloy A, Stablohm 650, MWS-650 |
Application: |
Furnace Heating Wire/household Appliances |
Elongation (≥ %): |
20 |
Resistance (μω.m): |
1.09 |
Ni (min): |
79 |
Powder Or Not: |
Not Powder |
Ultimate Strength (≥ Mpa): |
750 N/mm² |
Type: |
Nickel Chrome Alloy |
Surface: |
Bright Annealed |
Shape: |
Wire |
Condition: |
Soft Annealed |
Standard: |
ASTM B162, GB/1234 2012, GB/T 2054-2013, ASTM ASME, ASME SB162 |
Density: |
8.4 |
Feature: |
High Temperature Strength |
Grade: |
NiCr8020, Chromel A, Nikrothal 80, NCHW1,N8, Cronix 80, Alloy A, Stablohm 650, MWS-650 |
Application: |
Furnace Heating Wire/household Appliances |
Elongation (≥ %): |
20 |
Resistance (μω.m): |
1.09 |
Ni (min): |
79 |
Powder Or Not: |
Not Powder |
Ultimate Strength (≥ Mpa): |
750 N/mm² |
Type: |
Nickel Chrome Alloy |
Surface: |
Bright Annealed |
Shape: |
Wire |
Condition: |
Soft Annealed |
Standard: |
ASTM B162, GB/1234 2012, GB/T 2054-2013, ASTM ASME, ASME SB162 |
Density: |
8.4 |
Feature: |
High Temperature Strength |

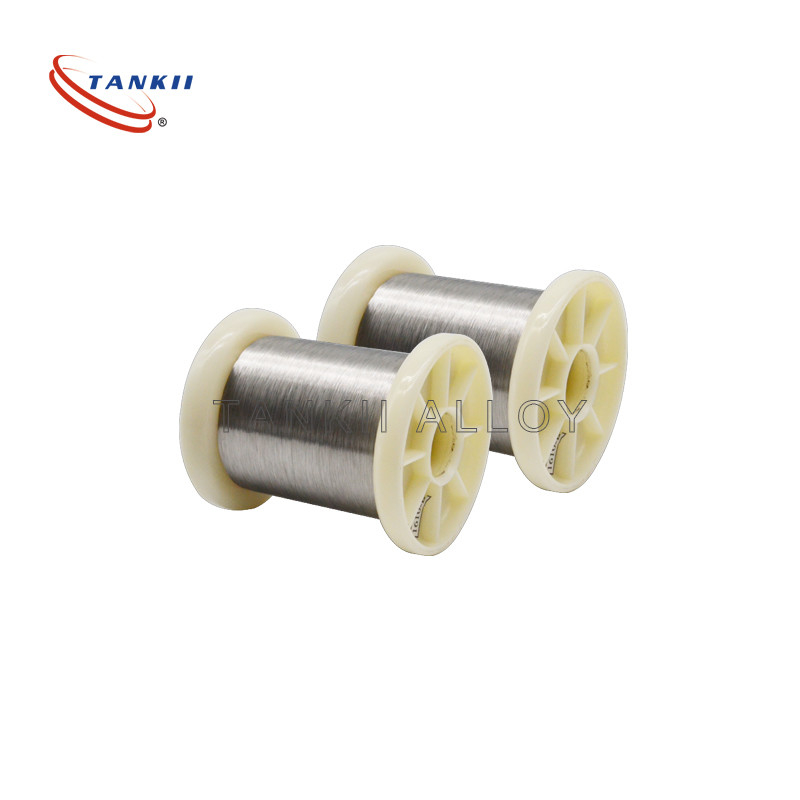

Heating nickel chrome alloy /electric heating element resistance alloy/nichrome alloy wire/ni cr alloy/ ni-cr alloy/nickel chrome alloy/electrothermal alloy/electric heating alloy/Electric resistance alloy
Advantages: deformation ability, thermal stability,mechanical character, shockproof ability in thermal state and anti-oxidization.
| Diameter(mm) | Tolerance(mm) | Diameter(mm) | Tolerance(mm) |
| 0.03-0.05 | ±0.005 | >0.50-1.00 | ±0.02 |
| >0.05-0.10 | ±0.006 | >1.00-3.00 | ±0.03 |
| >0.10-0.20 | ±0.008 | >3.00-6.00 | ±0.04 |
| >0.20-0.30 | ±0.010 | >6.00-8.00 | ±0.05 |
| >0.30-0.50 | ±0.015 | >8.00-12.0 | ±0.4 |
| Alloy Type | Diameter (mm) |
Resistivity (μΩm)(20°C) |
Tensile Strength (N/mm²) |
Elongation(%) | Bending Times |
Max.Continuous Service Temperature(°C) |
Working Life (hours) |
| Cr20Ni80 | <0.50 | 1.09±0.05 | 850-950 | >20 | >9 | 1200 | >20000 |
| 0.50-3.0 | 1.13±0.05 | 850-950 | >20 | >9 | 1200 | >20000 | |
| >3.0 | 1.14±0.05 | 850-950 | >20 | >9 | 1200 | >20000 | |
| Cr30Ni70 | <0.50 | 1.18±0.05 | 850-950 | >20 | >9 | 1250 | >20000 |
| ≥0.50 | 1.20±0.05 | 850-950 | >20 | >9 | 1250 | >20000 | |
| Cr15Ni60 | <0.50 | 1.12±0.05 | 850-950 | >20 | >9 | 1125 | >20000 |
| ≥0.50 | 1.15±0.05 | 850-950 | >20 | >9 | 1125 | >20000 | |
| Cr20Ni35 | <0.50 | 1.04±0.05 | 850-950 | >20 | >9 | 1100 | >18000 |
| ≥0.50 | 1.06±0.05 | 850-950 | >20 | >9 | 1100 | >18000 | |
| 1Cr13Al4 | 0.03-12.0 | 1.25±0.08 | 588-735 | >16 | >6 | 950 | >10000 |
| 0Cr15Al5 | 1.25±0.08 | 588-735 | >16 | >6 | 1000 | >10000 | |
| 0Cr25Al5 | 1.42±0.07 | 634-784 | >12 | >5 | 1300 | >8000 | |
| 0Cr23Al5 | 1.35±0.06 | 634-784 | >12 | >5 | 1250 | >8000 | |
| 0Cr21Al6 | 1.42±0.07 | 634-784 | >12 | >5 | 1300 | >8000 | |
| 1Cr20Al3 | 1.23±0.06 | 634-784 | >12 | >5 | 1100 | >8000 | |
| 0Cr21Al6Nb | 1.45±0.07 | 634-784 | >12 | >5 | 1350 | >8000 | |
| 0Cr27Al7Mo2 | 0.03-12.0 | 1.53±0.07 | 686-784 | >12 | >5 | 1400 |
>8000 |
