Product Details
Place of Origin: Jiangsu, China
Brand Name: TANKII
Certification: DIN, ASTM, JIS ROHS
Model Number: Cr20Ni80
Payment & Shipping Terms
Minimum Order Quantity: 10KG
Price: 30-80USD
Packaging Details: spool ,coil, carton, wood box, or as clients' requirement
Delivery Time: 5-10 work days
Payment Terms: T/T, L/C, , Western Union
Supply Ability: 50 tons per month
Grade: |
NiCr8020, Chromel A, Nikrothal 80, Alloy A |
Application: |
Furnace Heating Wire/household Appliances |
Elongation (≥ %): |
20 |
Resistance (μω.m): |
1.09 |
Powder Or Not: |
Not Powder |
Ultimate Strength (≥ Mpa): |
750 N/mm² |
Surface: |
Bright Annealed |
Shape: |
Round Wire |
Material: |
Nichrome |
Condition: |
Soft Annealed |
Standard: |
ASTM B162, GB/1234 2012, GB/T 2054-2013, ASTM ASME, ASME SB162 |
Density: |
8.4 |
Feature: |
High Temperature Strength |
Grade: |
NiCr8020, Chromel A, Nikrothal 80, Alloy A |
Application: |
Furnace Heating Wire/household Appliances |
Elongation (≥ %): |
20 |
Resistance (μω.m): |
1.09 |
Powder Or Not: |
Not Powder |
Ultimate Strength (≥ Mpa): |
750 N/mm² |
Surface: |
Bright Annealed |
Shape: |
Round Wire |
Material: |
Nichrome |
Condition: |
Soft Annealed |
Standard: |
ASTM B162, GB/1234 2012, GB/T 2054-2013, ASTM ASME, ASME SB162 |
Density: |
8.4 |
Feature: |
High Temperature Strength |

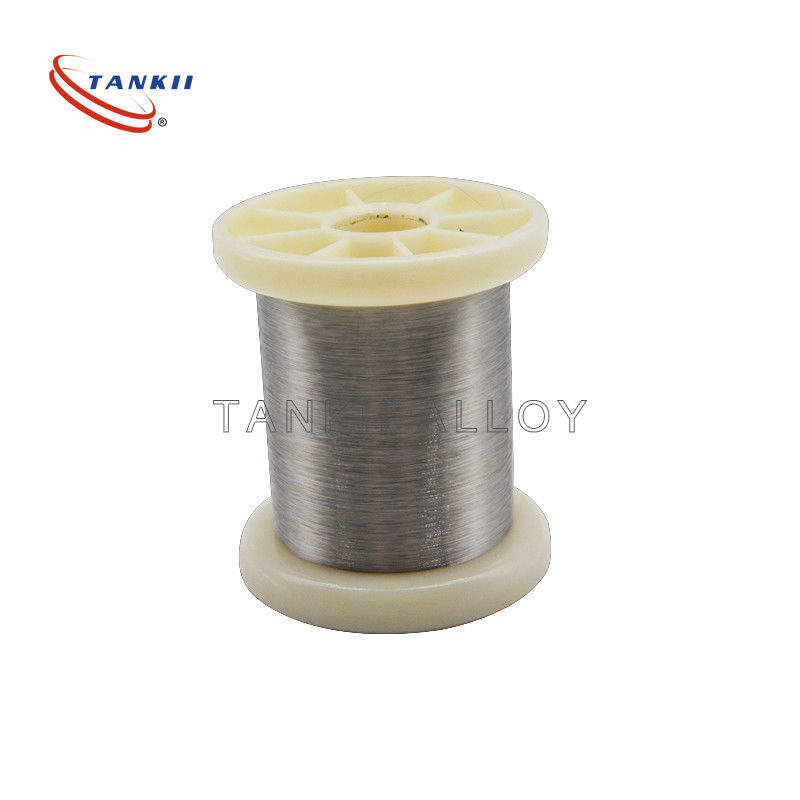

Quality NiCr Alloy Chromel A Round Wire for Electric Heating Resistors
Resistance heating wire includes pure nickel, chromel alloy, Fe-Cr-Al alloy and copper nickel alloy. Resistance heating wire is produced by smelting, steel rolling, forging, annealing, drawing, surface treatment, resistance control test, etc. It is widely used for making heating equipment like industrial furnace, civil heating appliance, various electrical resistors and locomotive braking resistor.
Specifications for round wires:
| Diameter(mm) | Tolerance(mm) | Diameter(mm) | Tolerance(mm) |
| 0.03-0.05 | ±0.005 | >0.50-1.00 | ±0.02 |
| >0.05-0.10 | ±0.006 | >1.00-3.00 | ±0.03 |
| >0.10-0.20 | ±0.008 | >3.00-6.00 | ±0.04 |
| >0.20-0.30 | ±0.010 | >6.00-8.00 | ±0.05 |
| >0.30-0.50 | ±0.015 | >8.00-12.0 | ±0.4 |
Specifications for round wires:
| Thickness(mm) | Tolerance(mm) | Width(mm) | Tolerance(mm) |
| 0.05-0.10 | ±0.010 | 5.00-10.0 | ±0.2 |
| >0.10-0.20 | ±0.015 | >10.0-20.0 | ±0.2 |
| >0.20-0.50 | ±0.020 | >20.0-30.0 | ±0.2 |
| >0.50-1.00 | ±0.030 | >30.0-50.0 | ±0.3 |
| >1.00-1.80 | ±0.040 | >50.0-90.0 | ±0.3 |
| >1.80-2.50 | ±0.050 | >90.0-120.0 | ±0.5 |
| >2.50-3.50 | ±0.060 | >120.0-250.0 | ±0.6 |
| Alloy Type | Diameter (mm) |
Resistivity (μΩm)(20°C) |
Tensile Strength (N/mm²) |
Elongation(%) | Bending Times |
Max.Continuous Service Temperature(°C) |
Working Life (hours) |
| Cr20Ni80 | <0.50 | 1.09±0.05 | 850-950 | >20 | >9 | 1200 | >20000 |
| 0.50-3.0 | 1.13±0.05 | 850-950 | >20 | >9 | 1200 | >20000 | |
| >3.0 | 1.14±0.05 | 850-950 | >20 | >9 | 1200 | >20000 | |
| Cr30Ni70 | <0.50 | 1.18±0.05 | 850-950 | >20 | >9 | 1250 | >20000 |
| ≥0.50 | 1.20±0.05 | 850-950 | >20 | >9 | 1250 | >20000 | |
| Cr15Ni60 | <0.50 | 1.12±0.05 | 850-950 | >20 | >9 | 1125 | >20000 |
| ≥0.50 | 1.15±0.05 | 850-950 | >20 | >9 | 1125 | >20000 | |
| Cr20Ni35 | <0.50 | 1.04±0.05 | 850-950 | >20 | >9 | 1100 | >18000 |
| ≥0.50 | 1.06±0.05 | 850-950 | >20 | >9 | 1100 | >18000 | |
| 1Cr13Al4 | 0.03-12.0 | 1.25±0.08 | 588-735 | >16 | >6 | 950 | >10000 |
| 0Cr15Al5 | 1.25±0.08 | 588-735 | >16 | >6 | 1000 | >10000 | |
| 0Cr25Al5 | 1.42±0.07 | 634-784 | >12 | >5 | 1300 | >8000 | |
| 0Cr23Al5 | 1.35±0.06 | 634-784 | >12 | >5 | 1250 | >8000 | |
| 0Cr21Al6 | 1.42±0.07 | 634-784 | >12 | >5 | 1300 | >8000 | |
| 1Cr20Al3 | 1.23±0.06 | 634-784 | >12 | >5 | 1100 | >8000 | |
| 0Cr21Al6Nb | 1.45±0.07 | 634-784 | >12 | >5 | 1350 | >8000 | |
| 0Cr27Al7Mo2 | 0.03-12.0 | 1.53±0.07 | 686-784 | >12 | >5 | 1400 |
>8000 |
