Product Details
Place of Origin: CHINA
Brand Name: TANKII
Certification: ISO9001
Model Number: NiCr80/20.
Payment & Shipping Terms
Minimum Order Quantity: 50kg
Price: negotiation
Packaging Details: spool+plastic bag+carton+pallet for resistance wires
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20, 000kg/month
Color: |
Bright Annealed |
Conductor Material: |
Ni-Cr |
Thickness: |
: 0.02----4.0mm |
Condition: |
Soft Or Hard |
Feature:: |
High Nickel, High Resistance |
Certificate:: |
ISO 9001 RoHS SGS |
Width: |
2.5----250mm |
Type: |
Nickel Strip |
Color: |
Bright Annealed |
Conductor Material: |
Ni-Cr |
Thickness: |
: 0.02----4.0mm |
Condition: |
Soft Or Hard |
Feature:: |
High Nickel, High Resistance |
Certificate:: |
ISO 9001 RoHS SGS |
Width: |
2.5----250mm |
Type: |
Nickel Strip |

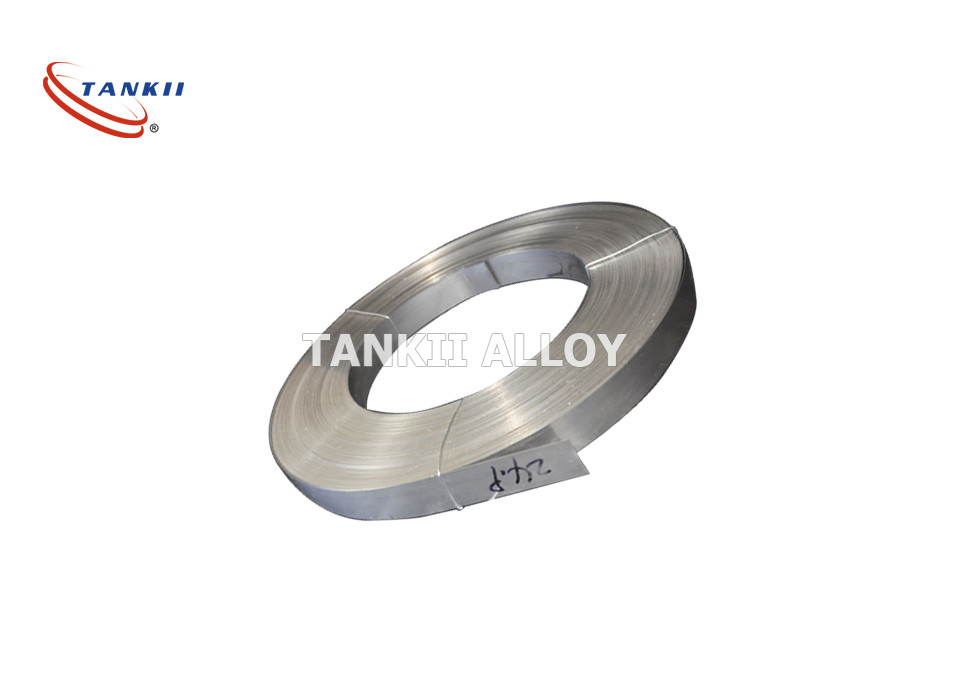

Resistance Strip Nickel Based Alloy MWS-675 Strip for Heating Element
1.>Nickel Chromium Alloy Introduction:
Nickel Chromium alloy has high resistivity, good anti-oxidation properties, high temperature strength, very good form stability and weld ability. It is widely used in electrical heating element material, resistor, industrial furnaces, etc.
2.>Detailed Description:
Grade: NiCr 80/20 is also called Chromel A, Nikrothal 80, N8, Nichrome V, HAI-NiCr 80, Tophet A, Resistohm 80, Cronix 80, Protoloy, Nikrothal 8, Alloy A, MWS-650, Stablohm 650, NCHW1
We also produce other kind of nichrome resistance wire, such as NiCr 70/30,NiCr 60/15,NiCr 60/23,NiCr 37/18, NiCr 35/20, NiCr 35/20, NiCr 25/20,Karma
3.>Chemical Composition and Propertes:
Chemical Composition
| Properties/Grade | Cr20Ni80 | Cr30Ni70 | Cr15Ni60 | Cr20Ni35 | Cr20Ni30 | |
| Main Chemical composition | Ni | Rest | Rest | 55.0-61.0 | 34.0-37.0 | 30.0-34.0 |
| Cr | 20.0-23.0 | 28.0-31.0 | 15.0-18.0 | 18.0-21.0 | 18.0-21.0 | |
| Fe | ≤1.0 | ≤1.0 | Rest | Rest | Rest | |
| Max. continuous service temp. of element | 1200 | 1250 | 1150 | 1100 | 1100 | |
| Resistivity at 20oC (μΩ·m) | 1.09 | 1.18 | 1.12 | 1.04 | 1.04 | |
| Density (g/cm3) | 8.40 | 8.10 | 8.20 | 7.90 | 7.90 | |
| Thermal conductivity(KJ/m·h·oC) | 60.3 | 45.2 | 45.2 | 43.8 | 43.8 | |
| Coefficient of lines expansion(α×10-6/oC) | 18.0 | 17.0 | 17.0 | 19.0 | 19.0 | |
| Melting point (approx.)( oC) | 1400 | 1380 | 1390 | 1390 | 1390 | |
| Elongation at rupture (%) | >20 | >20 | >20 | >20 | >20 | |
| Micrographic structure | austenite | austenite | austenite | austenite | austenite | |
| Magnetic properties | nonmagnetic | nonmagnetic | nonmagnetic | nonmagnetic | nonmagnetic | |
