Product Details
Place of Origin: CHINA
Brand Name: TANKII
Certification: ISO9001
Model Number: NiCr80/20.
Payment & Shipping Terms
Minimum Order Quantity: 20kg
Price: negotiation
Packaging Details: spool+plastic bag+carton+pallet for resistance wires
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20, 000kg/month
Color: |
Sliver Or Polish |
Conductor Material: |
Ni-Cr |
Thickness: |
: 0.02----4.0mm |
Condition: |
Bright Annealed |
Feature:: |
High Nickel, High Resistance |
Certificate:: |
ISO 9001 RoHS SGS |
Width: |
2.5----250mm |
Type: |
Nickel Strip |
Color: |
Sliver Or Polish |
Conductor Material: |
Ni-Cr |
Thickness: |
: 0.02----4.0mm |
Condition: |
Bright Annealed |
Feature:: |
High Nickel, High Resistance |
Certificate:: |
ISO 9001 RoHS SGS |
Width: |
2.5----250mm |
Type: |
Nickel Strip |

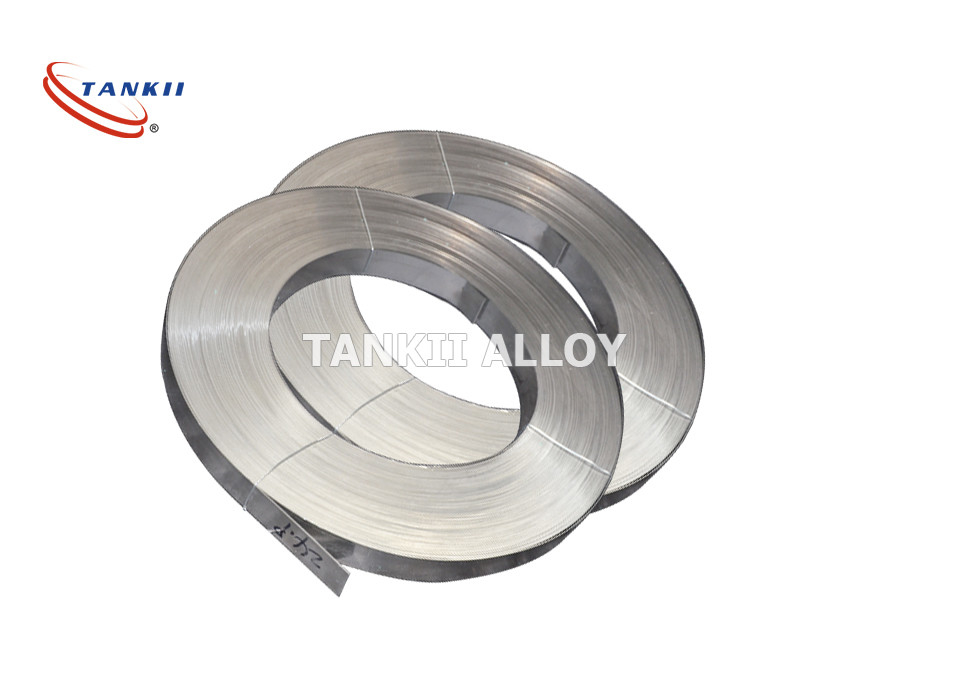

Nichrome Resistance Strip NiCr 80/20 Strip/tape/Sheet/Ribbon
Our company focus on nichrome striop/sheet/plaste production.
Grade: NiCr 30/20, NiCr 60/23, NiCr 60/15, NiCr 70/30, NiCr 80/20
ASTM B603, DIN 17470, JIS C2520, GB/T1234.
Our advantage:High quality,short delivery time,small MOQ.
Characteristics:Stable performance; Anti-oxidation; Corrosion resistance; High temperature stability; Excellent coil-forming ability; Uniform and beautiful surface condition without spots.
Usage:Resistance heating elements;Material in metallurgy;Household appliances;Mechanical manufacturing and other industries.
Chemical Composition
| Properties/Grade | Cr20Ni80 | Cr30Ni70 | Cr15Ni60 | Cr20Ni35 | Cr20Ni30 | |
| Main Chemical composition | Ni | Rest | Rest | 55.0-61.0 | 34.0-37.0 | 30.0-34.0 |
| Cr | 20.0-23.0 | 28.0-31.0 | 15.0-18.0 | 18.0-21.0 | 18.0-21.0 | |
| Fe | ≤1.0 | ≤1.0 | Rest | Rest | Rest | |
| Max. continuous service temp. of element | 1200 | 1250 | 1150 | 1100 | 1100 | |
| Resistivity at 20oC (μΩ·m) | 1.09 | 1.18 | 1.12 | 1.04 | 1.04 | |
| Density (g/cm3) | 8.40 | 8.10 | 8.20 | 7.90 | 7.90 | |
| Thermal conductivity(KJ/m·h·oC) | 60.3 | 45.2 | 45.2 | 43.8 | 43.8 | |
| Coefficient of lines expansion(α×10-6/oC) | 18.0 | 17.0 | 17.0 | 19.0 | 19.0 | |
| Melting point (approx.)( oC) | 1400 | 1380 | 1390 | 1390 | 1390 | |
| Elongation at rupture (%) | >20 | >20 | >20 | >20 | >20 | |
| Micrographic structure | austenite | austenite | austenite | austenite | austenite | |
| Magnetic properties | nonmagnetic | nonmagnetic | nonmagnetic | nonmagnetic | nonmagnetic | |
